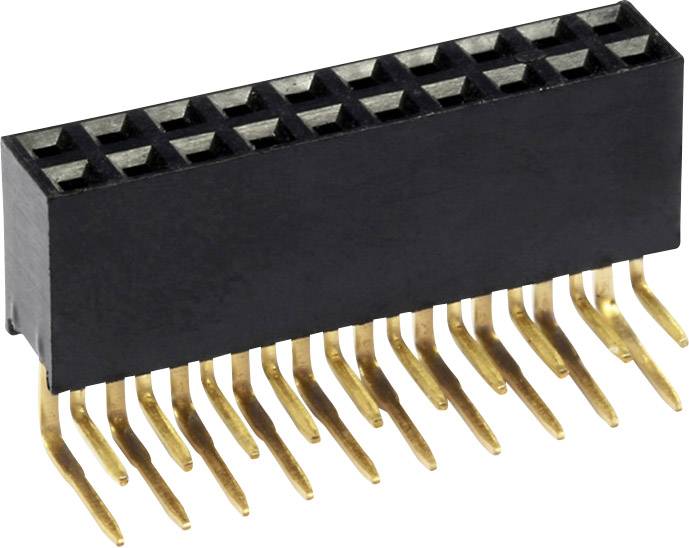

econ connect SIL socket (standard) No. of rows: 2 Pins per row: 15 BLW2X15 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.66
15
8% = € 0.05
€ 0.61
25
12% = € 0.08
€ 0.58
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.66 / piece)
€
Highlights & Details

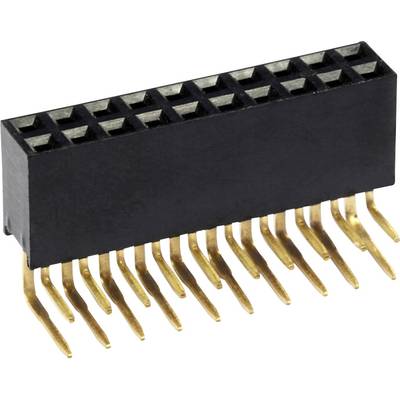

Socket strip, angled RM 2.54 mm
- Content 1 pc(s)
- No. of rows 2
- Pins per row 15
Technical specifications
- Connector type
Power strip, right angle
- No. of rows
2
- Pins per row
15
- Total number of pins
30
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT, UL94V-0
- Pin Ø
0.64 mm
- Pin length (PCB)
3.50 mm
- Separable
No
- Dim
(L x W x H) 38.6 x 38.6 x 8.5 mm
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
BLW2X15
- Content
1 pc(s)
- Height
8.5 mm
- Length
38.6 mm
- Width
38.6 mm
- Industrial packaging
No
- Type
BLW2X15
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Product type
SIL socket (standard)
Documents & Downloads
Datasheet
Datasheet 1492399 econ connect SIL socket (standard) No. of rows: 2 Pins per row: 15 BLW2X15 1 pc(s)
