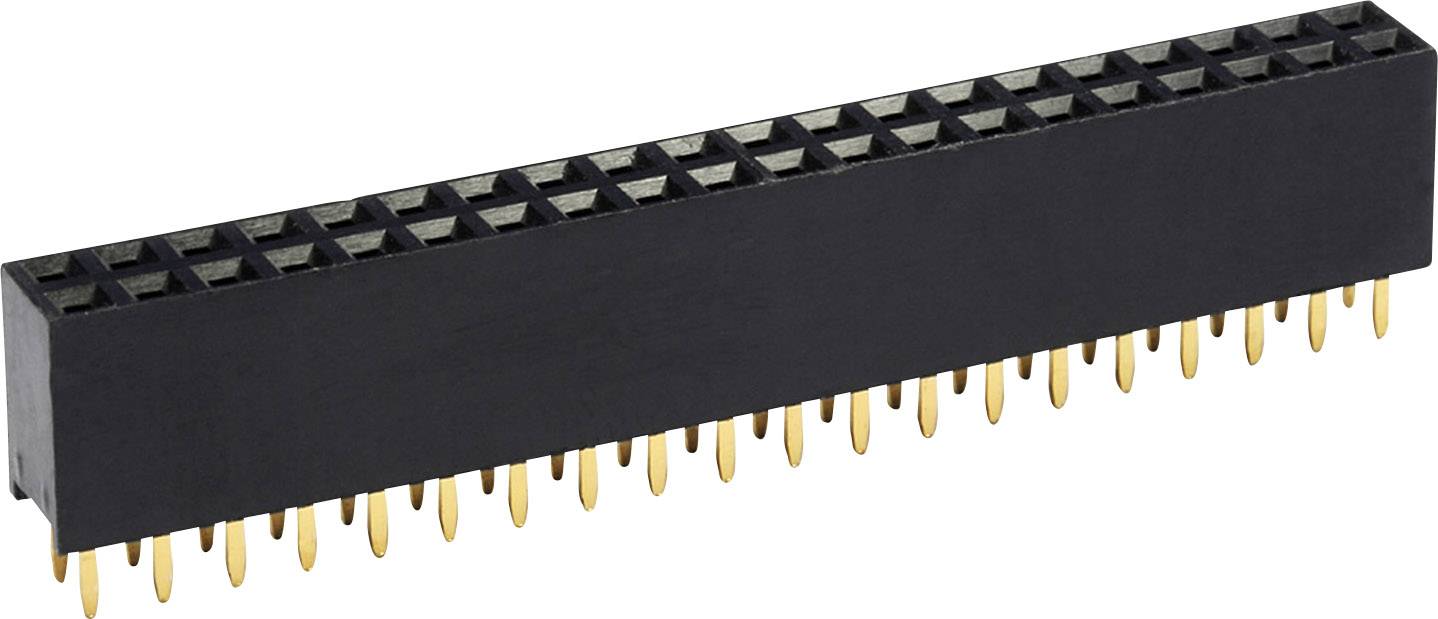

econ connect SIL socket (standard) No. of rows: 2 Pins per row: 21 BLG2X21 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, straight
Product type
SIL socket (standard)
No. of rows
2
Total number of pins
42
CS
2.54 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.75
15
8% = € 0.06
€ 0.69
25
12% = € 0.09
€ 0.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.75 / piece)
€ 3.75
plus VAT.
14-day return policy included
Highlights & Details
Socket strip, straight
- Content 1 pc(s)
- No. of rows 2
- Pins per row 21
Our service for you

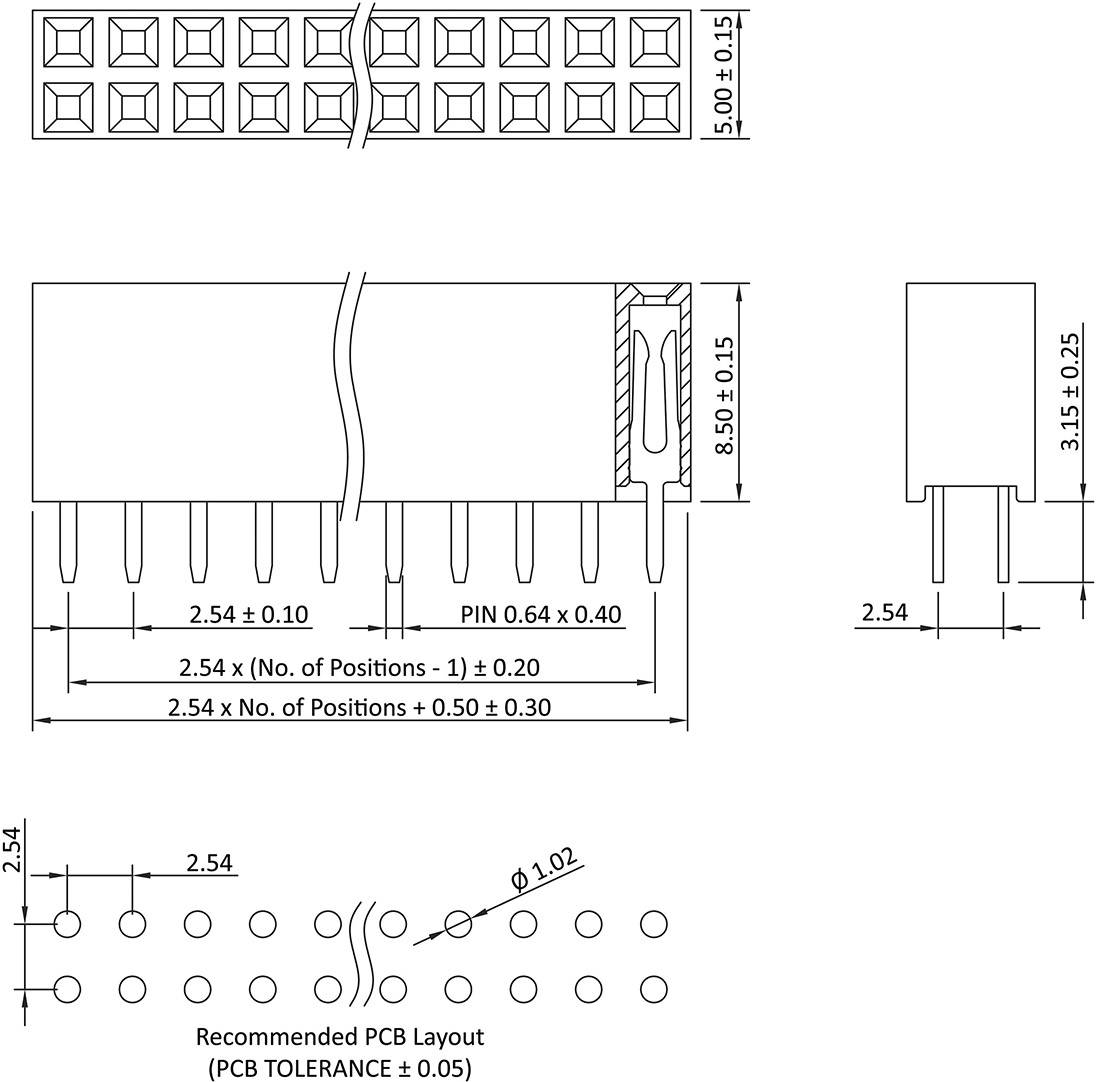

Technical specifications
- Connector type
Power strip, straight
- Product type
SIL socket (standard)
- No. of rows
2
- Pins per row
21
- Total number of pins
42
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT, UL94V-0
- Pin Ø
0.64 mm
- Pin length (PCB)
3.15 mm
- Separable
No
- Dim
(L x W x H) 53.84 x 53.84 x 8.5 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
BLG2X21
- Industrial packaging
No
- Content
1 pc(s)
- Width
53.84 mm
- Height
8.5 mm
- Length
53.84 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
BLG2X21
