Image similar
1/2
Image similar

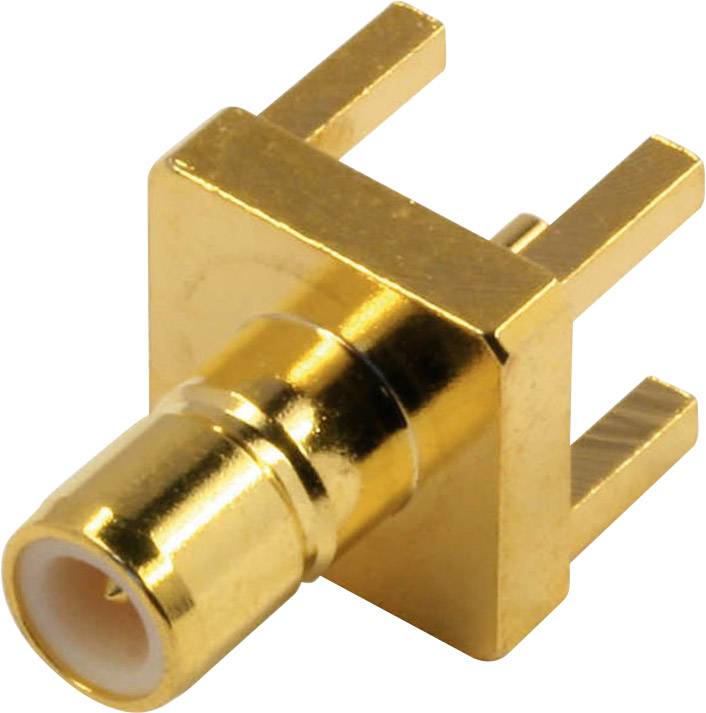

econ connect SMB4MG SMB4MG SMB connector Plug, straight 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMB connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Solder pins
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
SMB connectors
- The plug socket - name, according to the shape of the inner conductor defined.
Our service for you
Technical specifications
- Product type
SMB connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Solder pins
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
SMB4MG
- Insulation resistance
1000 MOHM
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Type
SMB4MG
- Seal type
Push-Pull
Documents & Downloads
Datasheet
Datasheet 1311455 econ connect SMB4MG SMB4MG SMB connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1311455 econ connect SMB4MG SMB4MG SMB connector Plug, straight 50 Ω 1 pc(s)
Description
SMB stands for subminiature B and is used in frequency ranges up to 4 GHz. Unlike SMC plug connectors, this connector is only inserted and not screwed into place. It is used mainly for internal device connections.
