Buy econ connect WSK14G Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s) Tray

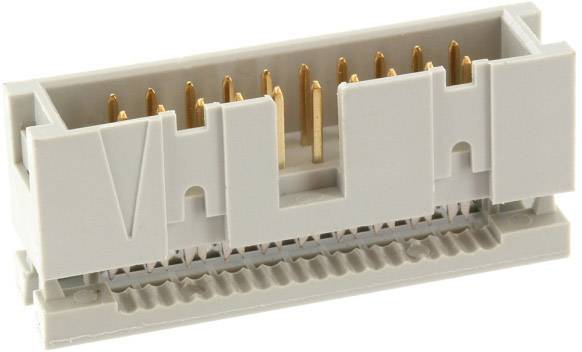

Grey-white, rectangular electrical connector with multiple gold-coloured pins, standing on a flat base.

Image similar

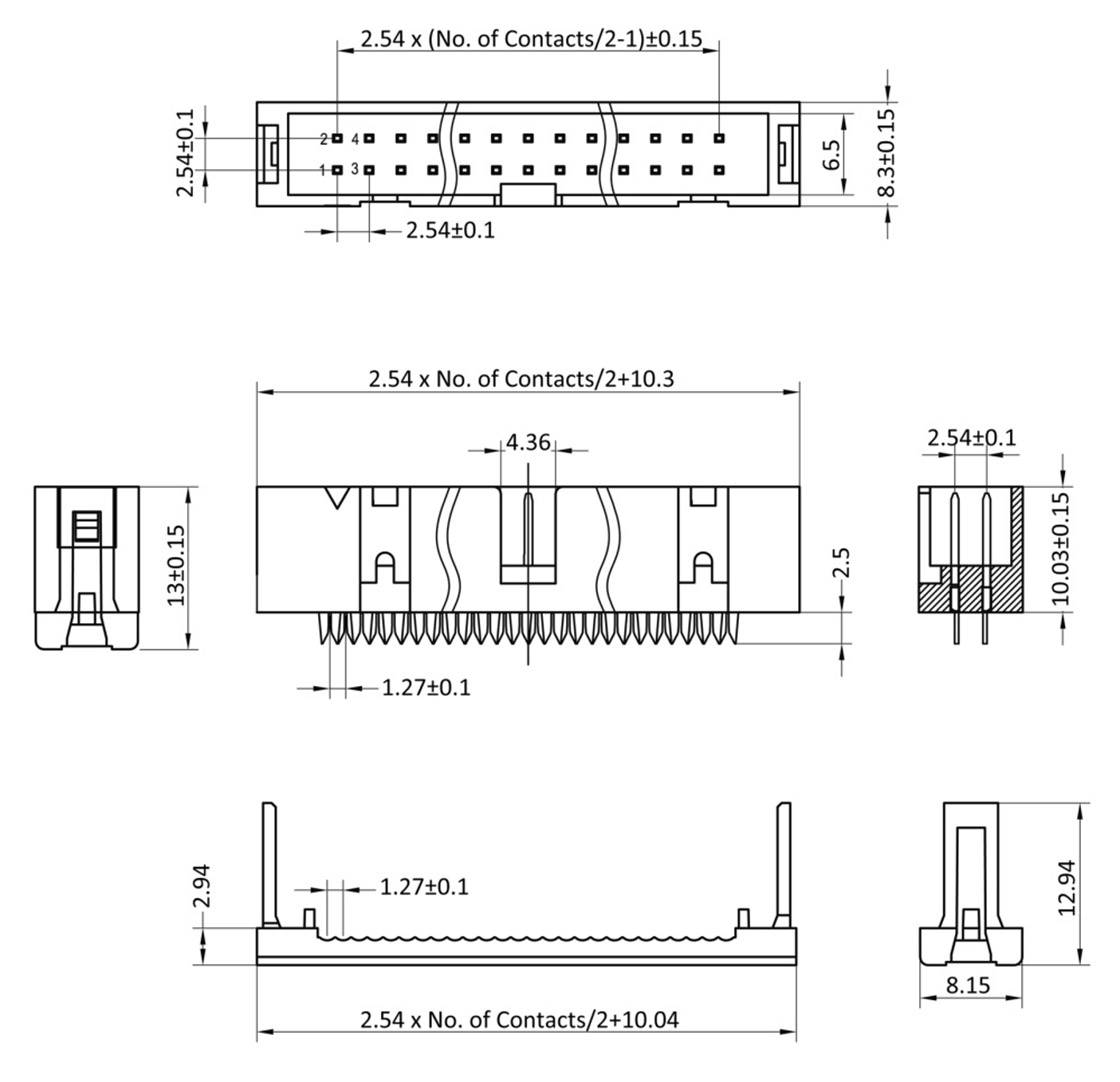

Technical drawing of a multi-pole connector with dimensions. Shows top view, side view, and front view with detailed spacing.

1/3

Image similar

Packaging type

Tray

Connector type

Pin strip, straight

Product type

Pin strip

2.54 mm

No. of rows

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

203 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 3

Total (€ 1.25 / piece)

€ 3.75

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Multi-pin connector with cut&clamp

Total number of pins 14
No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Packaging type: Tray

Connector type: Pin strip, straight

Product type: Pin strip

Features: no ejector

CS: 2.54 mm

No. of rows: 2

Pins per row: 7

Total number of pins: 14

Nominal current: 3 A

Contact material: Brass

Content: 1 pc(s)

Connection: Cut & Clip

Type: WSK14G

Actuation direction: Perpendicular (to the PCB)

Case material: PBT

Manufacturer part #: WSK14G

Factory colour: Grey

Connector contact surface: Gold plated

RoHS-compliant: Yes

Connector orientation: Perpendicular (to the PCB)

Max. temperature: 105 °C

Min. temperature: -40 °C

Packaging type (details): Tray

Documents & Downloads

Datasheet

Datasheet 1886701 econ connect WSK14G Pin strip no ejector Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s) Tray
