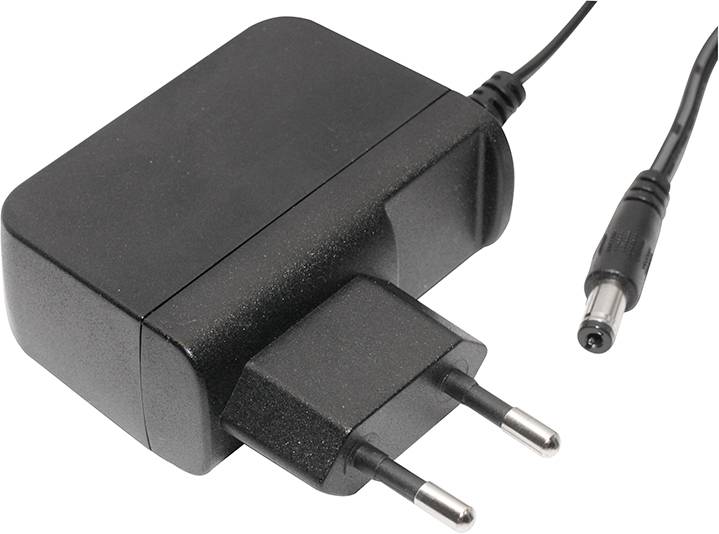

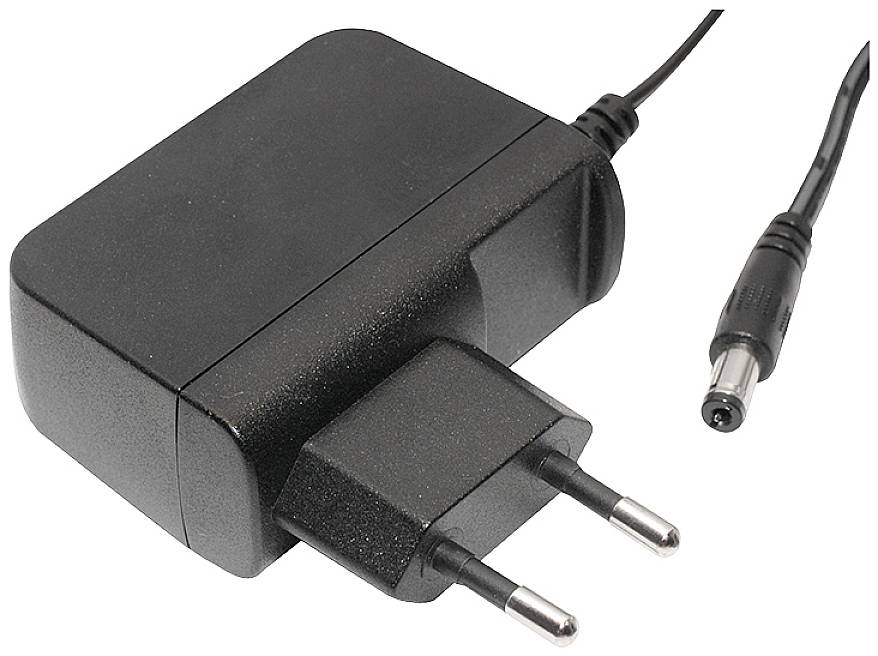

EDAC Power Electronics EA1005AHES501 Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Suitable for LED arrays
EAN:
Part number:
Item no:
Datasheet (PDF)
99 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Indoors
Mains socket
- Max. output current
1.2 A
- Output voltage
5 V DC
- Output current (max.) - rounded
1.2 A
- Output
5.5/2.1 coaxial connector
- PSU features
Suitable for LED arrays
- Input voltage
115 V AC
230 V AC
6 W
- Dim
(L x W x H) 55 x 55 x 25 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- EuP Status
Level VI
- Weight
70 g
- Cable length
1.8 m
- Width
55 mm
- Height
25 mm
- Length
55 mm
- Type
EA1005AHES501
Documents & Downloads
Datasheet
Datasheet 2467902 EDAC Power Electronics EA1005AHES501 Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Suitable for LED arrays
Description
The very compact dimensions of 55 x 25 x 55mm ideal for applications with limited space as well as for mobile applications, since they have a low weight of only 70g. The plug-in power supplies are equipped with a 5.5 x 2.1mm hollow plug on the DC side as standard connection, a variety of other variants with DC plugs are available on request.
The power supplies are an economical solution for all applications that are supplied via external power supplies. Their quality meets the high industrial requirements, they fulfill the EMC requirements of EN55032 class B and are certified according to IEC/EN 62368-1 for electrical safety. They are also compliant with the latest requirements of DOE Energy Level VI and ERP (EU) 2019/1782. Thus, they offer a high average efficiency of up to 86.8% over the entire power range and have a standby consumption of less than 0.075W. According to their IP protection class, the series are intended for indoor use. Your DC output has a protection function against overload and overvoltage, after elimination of a cause of error an automatic restart takes place.
This text is machine translated.
The power supplies are an economical solution for all applications that are supplied via external power supplies. Their quality meets the high industrial requirements, they fulfill the EMC requirements of EN55032 class B and are certified according to IEC/EN 62368-1 for electrical safety. They are also compliant with the latest requirements of DOE Energy Level VI and ERP (EU) 2019/1782. Thus, they offer a high average efficiency of up to 86.8% over the entire power range and have a standby consumption of less than 0.075W. According to their IP protection class, the series are intended for indoor use. Your DC output has a protection function against overload and overvoltage, after elimination of a cause of error an automatic restart takes place.
This text is machine translated.
