Buy EDIMAX EN-9225TX-E Network adapter 100 MBit/s PCI-Express

A network card with a PCIe interface and Ethernet port for connecting a computer to a network.

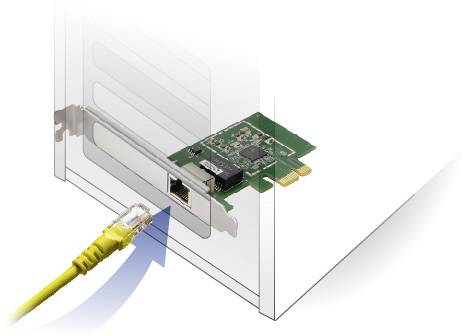

A network card in a computer case is connected with a yellow Ethernet cable.

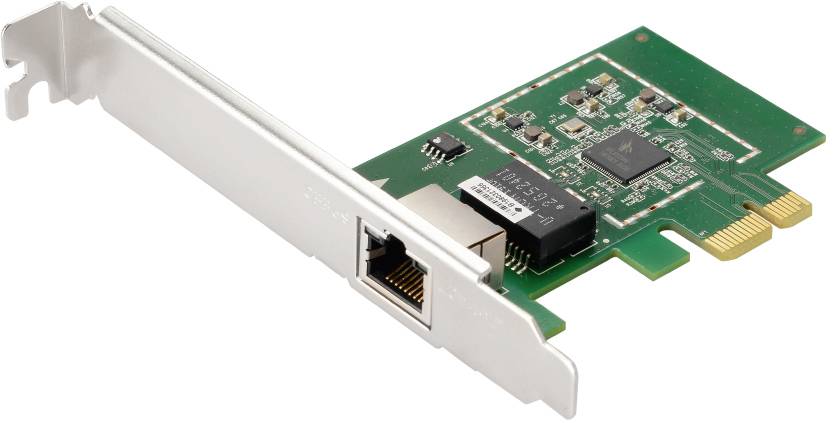

A green PCIe network card with an Ethernet port and multiple electronic components on the circuit board.

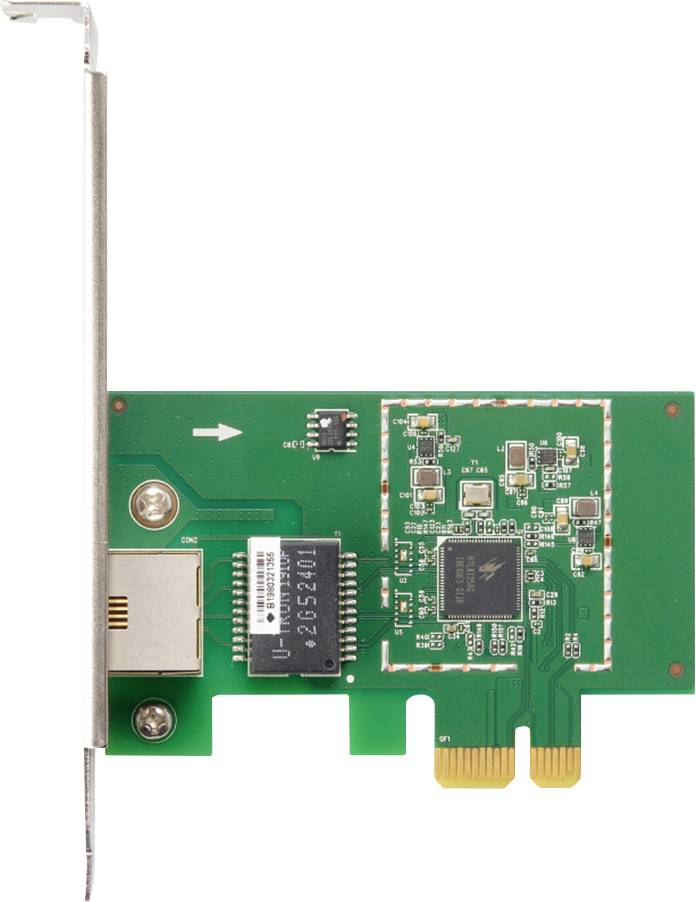

'Internal network card in PCIe format with Ethernet port and green circuit board, top view.'

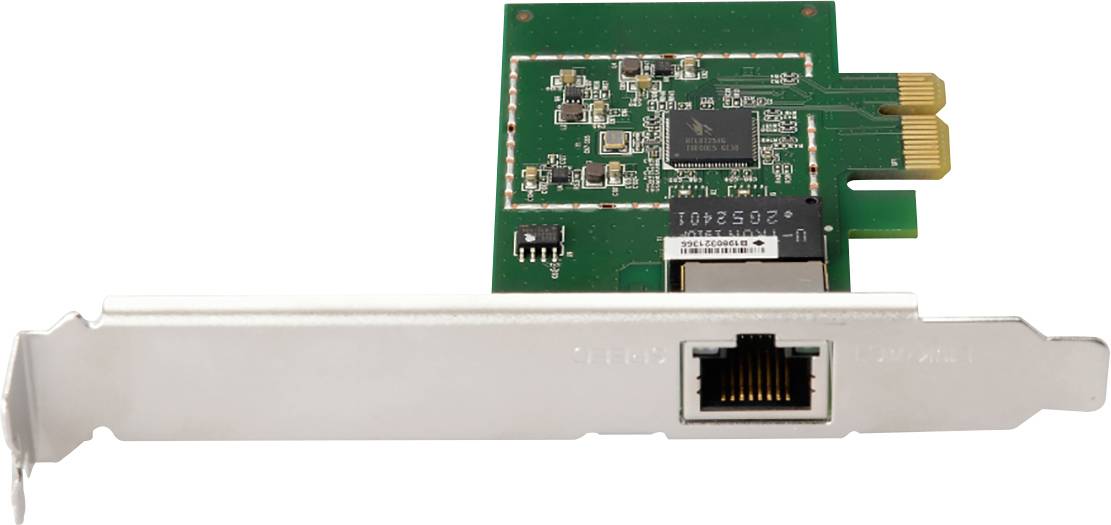

Network card with PCI Express interface and Ethernet port, suitable for installation in computer motherboards for network connection.

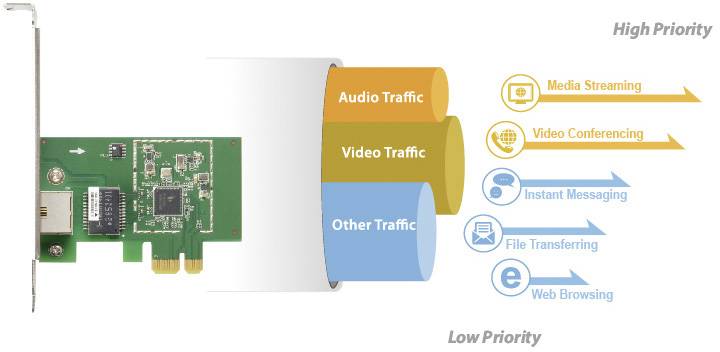

A network card prioritises audio and video data for 'media streaming' and 'video conferencing' higher than 'instant messaging', 'file transfers' and 'web browsing'.

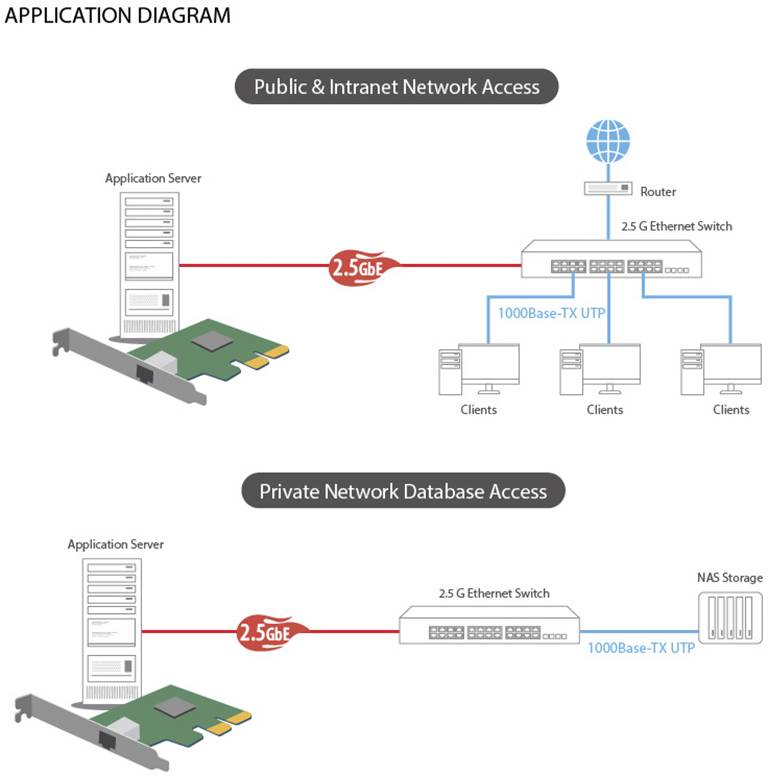

Network diagram shows 'Public & Intranet Network Access' with router and switch, and 'Private Network Database Access' with NAS storage.

1/8

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Report legal concerns

Edimax 2.5 Gigabit Ethernet PCI Express Server Adapter

Highlights & Details

PCI Express Gen 2 x 1
For high-speed transmission of 2.5 Gbit/s via cable starting from KAT 5e
Backward compatible with 2.5 Gbit/s, 1 Gbit/s and 100 Mbit/s.
16K Jumbo Frames
IP, TCP, UDP checksum unloading
Reduced CPU utilization
Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

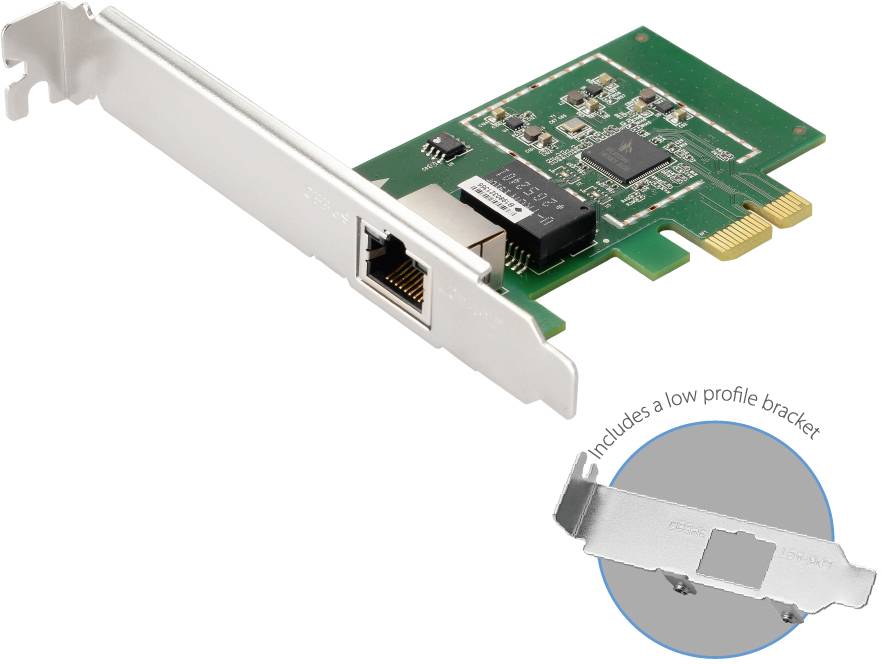

Low profile holder included

Technical specifications

Product type: Network adapter

Interfaces: PCI-Express

No. of Gigabit LANs: 1 x

Transfer rate: 100 MBit/s

LAN transfer rate: 100 MBit/s

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2376439 EDIMAX EN-9225TX-E Network adapter 100 MBit/s PCI-Express

User & Safety Instructions

User & Safety Instructions 2376439 EDIMAX EN-9225TX-E Network adapter 100 MBit/s PCI-Express

Conformity certificate

Conformity certificate 2376439 EDIMAX EN-9225TX-E Network adapter 100 MBit/s PCI-Express

Description

The EN-9225TX-E is a 2.5 Gigabit Ethernet PCI Express Server Adapter, which is designed for the high-speed PCI Express bus architecture. It supports network connections with the 3 speeds 2.5G, 1G and 100 Mbit/s with auto-negotiation. The EN-9225TX-E is the ideal choice as a convenient supplement, upgrade or replacement for your server, your workstation or your computer network connection, if high performance, low power consumption and more quality are important to you.

Excellent network speed of 2.5 Gbit/s.
With the benefits of low latency, hohem and cost efficiency, the EN-9225TX-E meets bandwidth-intensive requirements such as large file transfers, HD video editing and online gaming, while its high speeds and shared storage system provide improved server efficiency and network performance.

Prioritize bandwidth for optimal experiences
With built-in quality-of-service (QoS) technology, you can prioritize applications for a seamless connection. With the EN-9225TX-E you can easily enjoy latency-free traffic for games, video conferences or media streaming.

Easy migration thanks to 2.5GbE adapters
Thanks to a 2.5 Gigabit RJ45 interface, the EN-9225TX-E can offer 2.5 times better performance than existing Gigabit transmissions. The adapter is a powerful server NIC for your networks that supports up to 20 Gbps full duplex bandwidth. With the PCI Express rev. 2.0 specification x1 interface offers the EN-9225TX-E an optimal PCI Express upgrade solution for the mainboard.

High performance with advanced features
With the benefits of low latency, hohem and cost efficiency, the EN-9225TX-E meets bandwidth-intensive requirements such as large file transfers, HD video editing and online gaming, while its high speeds and shared storage system provide improved server efficiency and network performance.

This text is machine translated.
