Buy Ehmann 0218x02022301b Socket splitter Grey, Black PG connector 1 pc(s)

An extendable multi-socket extension unit with a red on/off switch and multiple socket outlets.

A black power plug is inserted into a white power strip, with a coiled cable beside it.

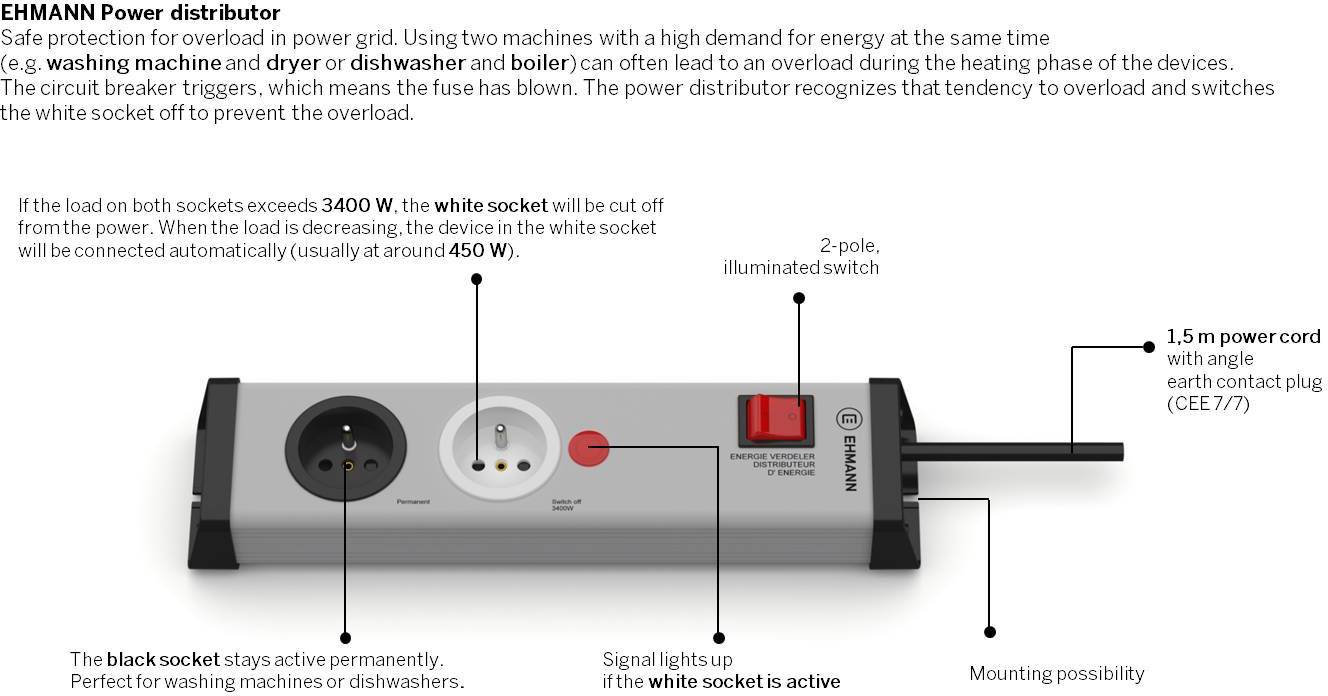

'Emhmann Power Distributor': Multi-socket adaptor with 2 outlets and switch. Black socket: permanently active. White: de-energised during overload.

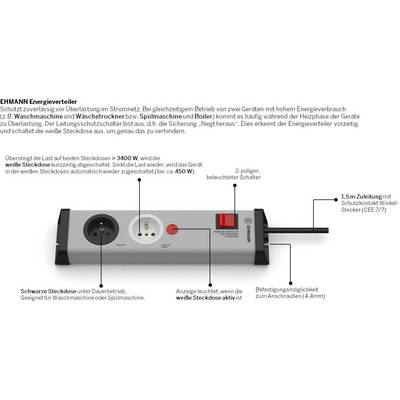

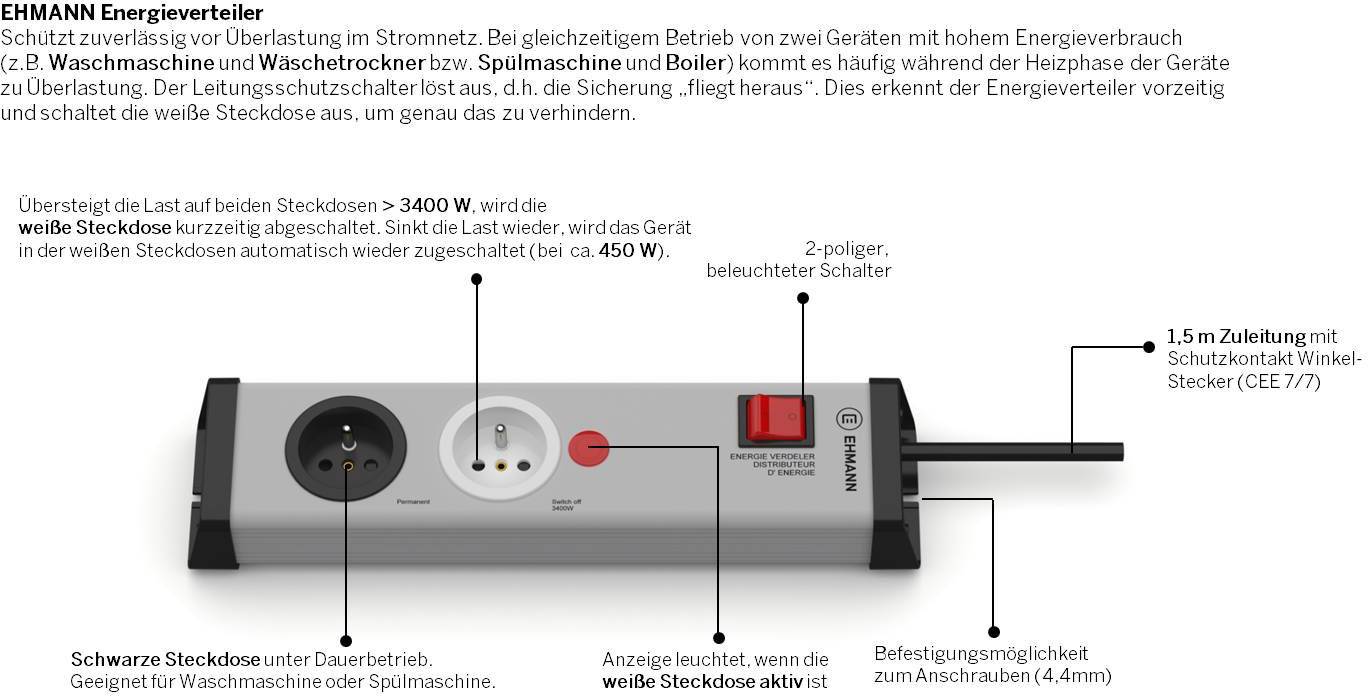

'EHMANN Energy Distributor, protects against overloading. Explains socket usage: black for continuous operation, white can be switched off.'

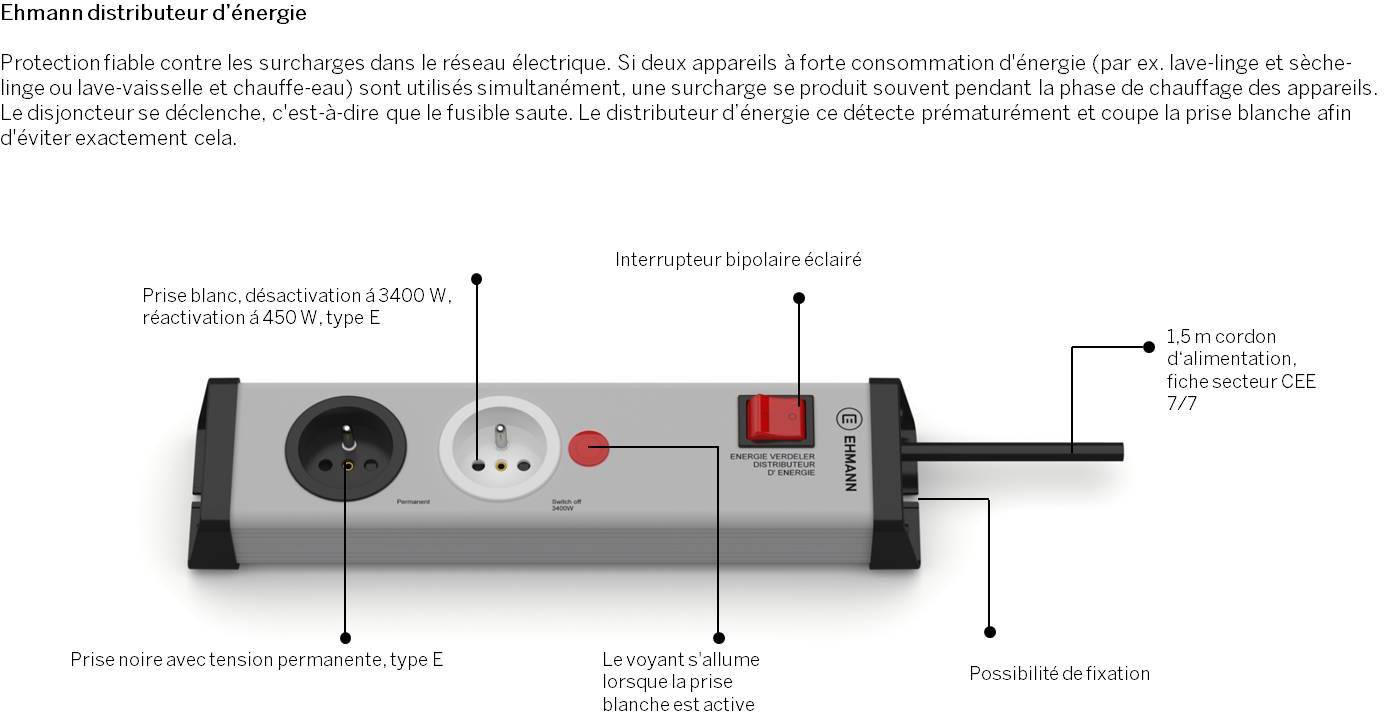

'Surge-protected power strip.' Left: Schuko plug, Type E. Right: Bipolar switch, 15 cm cable, CEE plug.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ehmann 0218x02022301b Socket splitter

With overload protection
French design
Visual function display

Technical specifications

300 mm mounting dimensions

Product type: Socket splitter

Light bulb features: Master-Slave function

Outlets: 2

Cable length: 1.50 m

Used at: Indoors

Material: Plastic

Activation threshold: 450 W

Plug type: PG connector

Cable standard: H05VV 3G 1,5 mm²

Operating voltage: 250 V

Power rating: 3600 W

Factory colour: Grey
Black

Length: 308 mm

Width: 74 mm

Height: 47 mm

: IP20

Documents & Downloads

Datasheet

Datasheet 2202179 Ehmann 0218x02022301b Socket splitter Grey, Black PG connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2202179 Ehmann 0218x02022301b Socket splitter Grey, Black PG connector 1 pc(s)

Information

Information 2202179 Ehmann 0218x02022301b Socket splitter Grey, Black PG connector 1 pc(s)

Warranty Terms

Warranty Terms 2202179 Ehmann 0218x02022301b Socket splitter Grey, Black PG connector 1 pc(s)

Description

The existing domestic installation is not always designed for the energy requirements of several electrical appliances. If, for example, a tumble dryer and a washing machine or boiler and a dishwasher are connected to one circuit, an overload may occur when both devices are heated simultaneously. The special energy distributor prevents a consumer from triggering the fuse or from developing a fire in the line due to the power-dependant switch-off (3400W). As soon as the power consumption drops, the second consumer is switched on again automatically.

This text is machine translated.

Features

Sockets type (French version)
1 black socket with continuous operation
1 white socket, which switches in dependence of the power consumption 3400W (overload protection)
increased safety through integrated increased touch protection
End caps with attachment possibility
built-in center protection contact Socket sockets (turned 90°), Round
Extra large distances between the sockets 64 mm
1.5 m feed line with angle plug
Switch off through overload protection: At approx. 3,400 W
Re-connection: At approx. 450 W
own consumption in active state: 0.9 W.
