Ehmann 0266x00059301 Smart power strips (Master-Slave strips) Silver, Black PG connector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ehmann 0266x00059301 Smart power strips (Master-Slave strips)
- Power: 3,600 W16 A nominal current250V~, 50 Hz nominal voltage
- This text is machine translated.
Technical specifications
- Product type
Smart power strips (Master-Slave strips)
- Outlets
5
- Cable length
1.5 m
- Used at
Indoors
- Mounting type
Fixed
- Material
Plastic
- Activation threshold
40 W
- Plug type
PG connector
- Cable standard
H05VV-F 3G 1,5 mm²
- Operating voltage
230 V
- Power rating
3600 W
- Factory colour
Silver
Black
- Length
462 mm
- Width
74 mm
- Height
47 mm
IP20
Documents & Downloads
Datasheet
Datasheet 2619458 Ehmann 0266x00059301 Smart power strips (Master-Slave strips) Silver, Black PG connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2619458 Ehmann 0266x00059301 Smart power strips (Master-Slave strips) Silver, Black PG connector 1 pc(s)
Description
Features

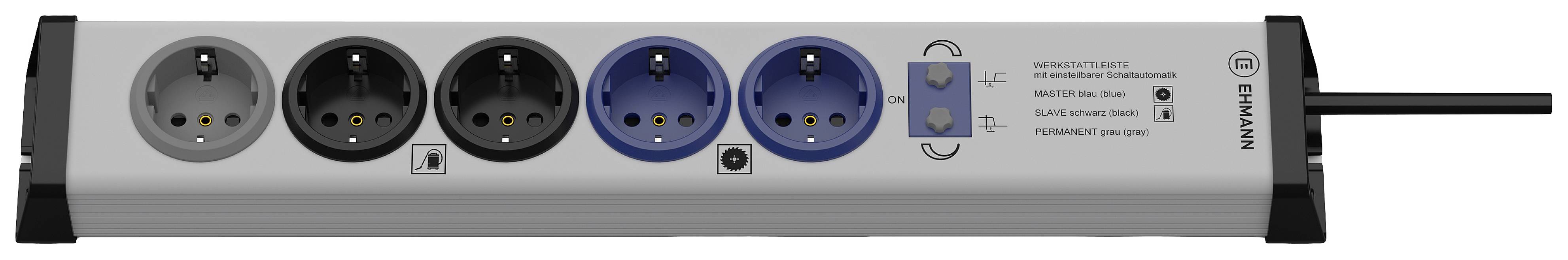

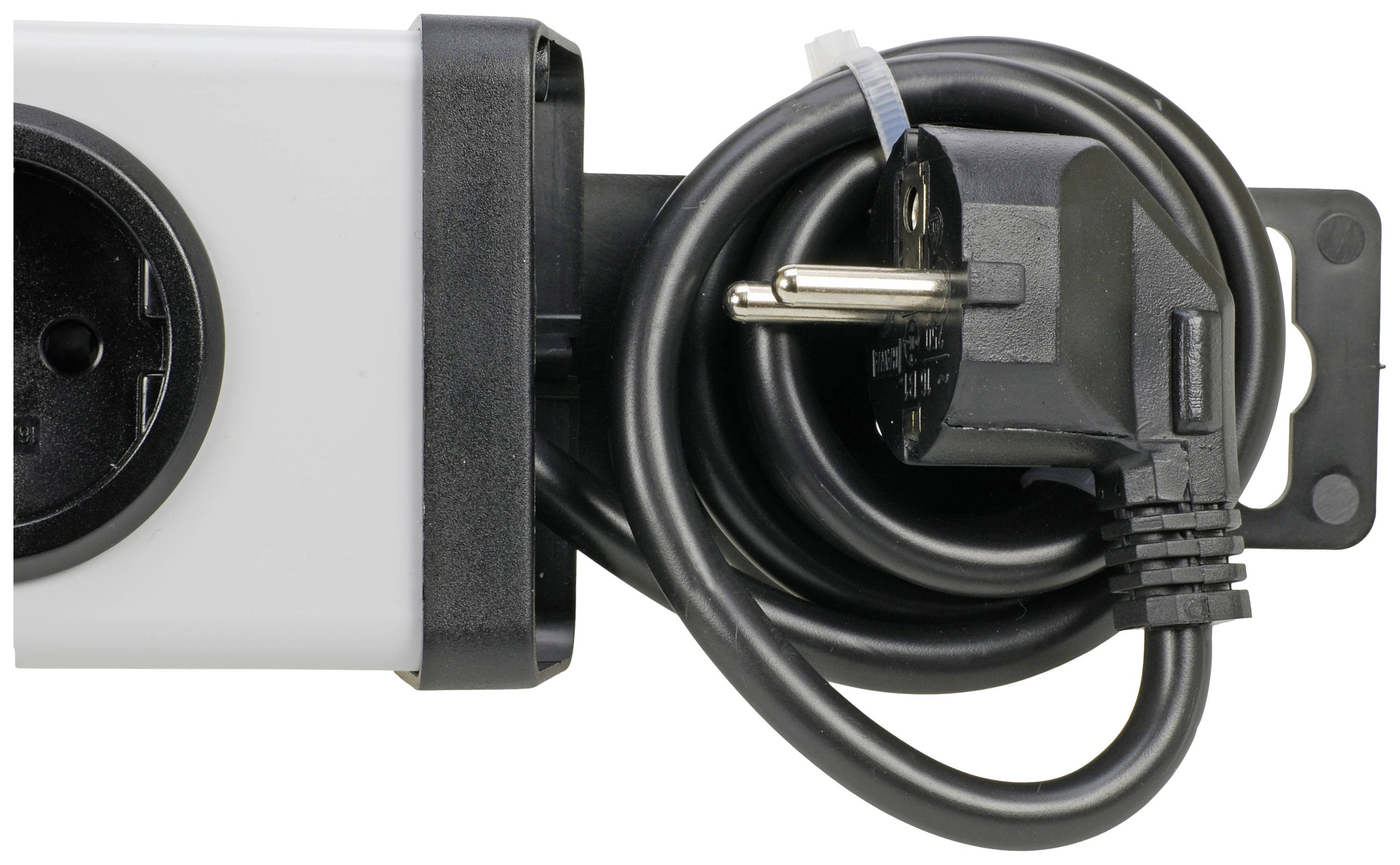

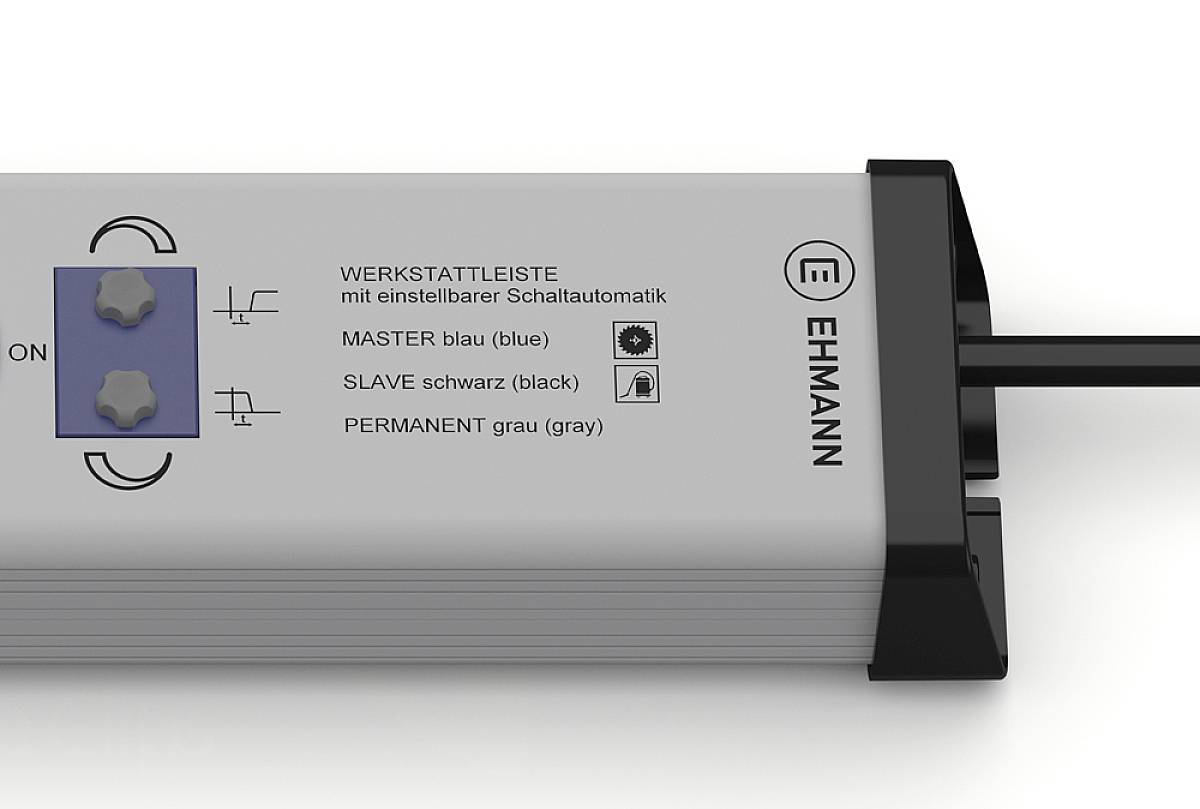

- Master/slave function for comfortable operation of dependant devices (suction)Robust plastic profile, grayBuilt-in sockets (turned 90°), round2x master sockets in blue for tools (saw, drill, etc.)2x slave sockets in black for suction device(s)1x continuous current socket in gray (lighting, etc.)Adjustable pre- and post-run time for individual control of the suction (slaves)Forward: Time-shifted switching on of the slave sockets (overload protection at the switch-on torque)After-run: Time-shifted switch-off of the slave sockets (pipe cleaning, no short interruptions)1.5 m feed line with angle plugExtended touch protection through the use of a shutterEnd caps with attachment option
Scope of delivery
- Strip master/slave suction control
