Ehmann 6162x0202 Indoor thermostat Surface-mount 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

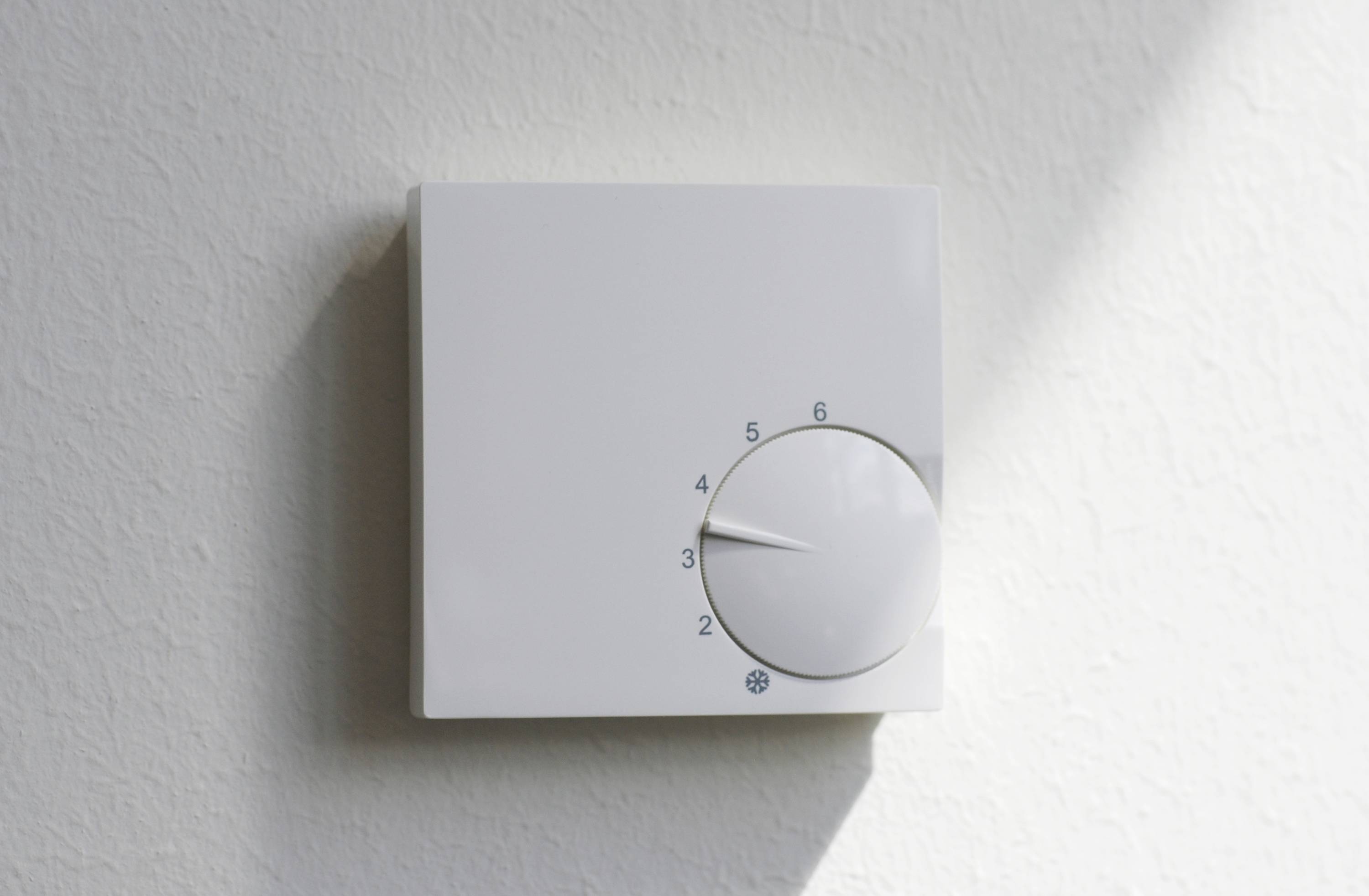

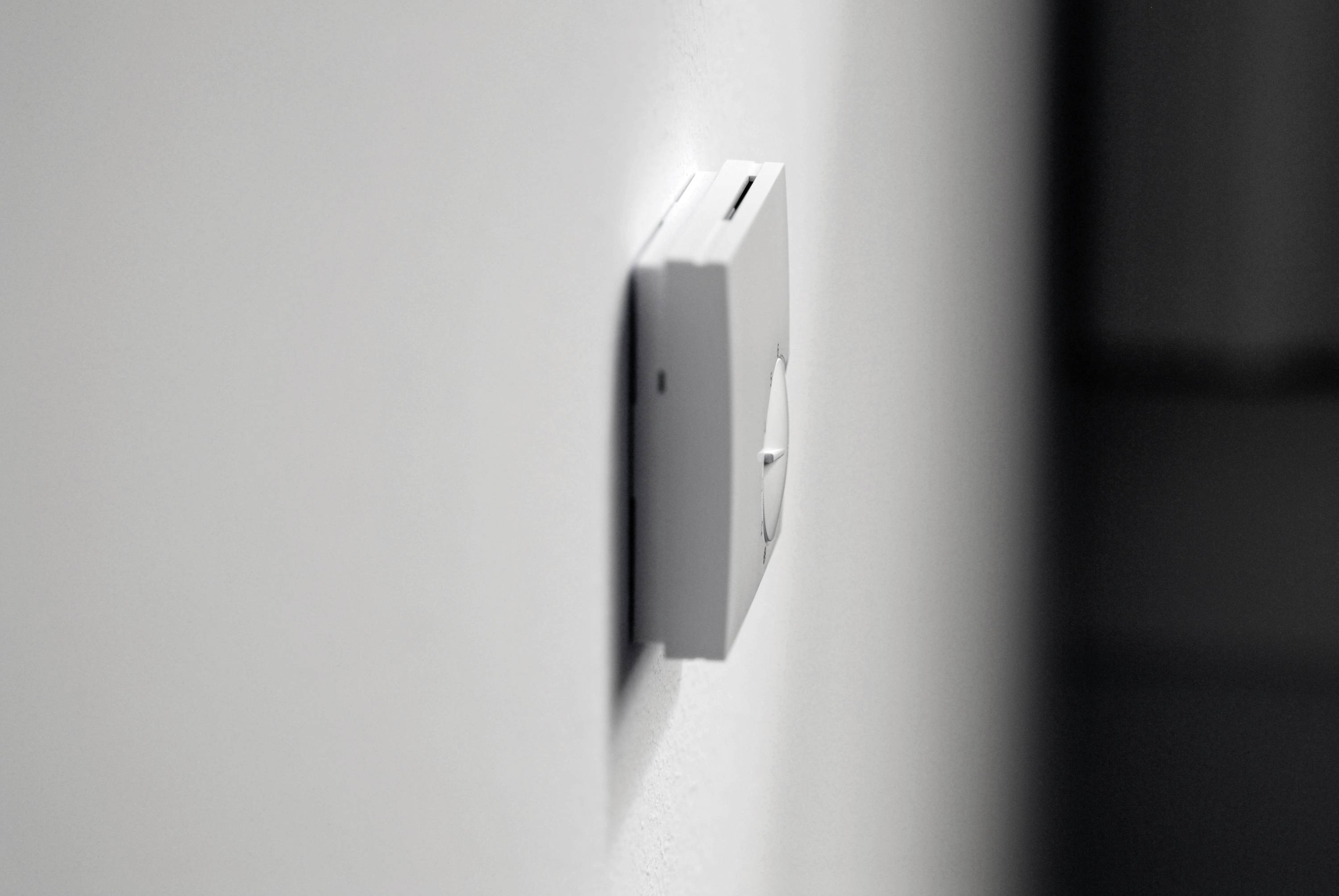

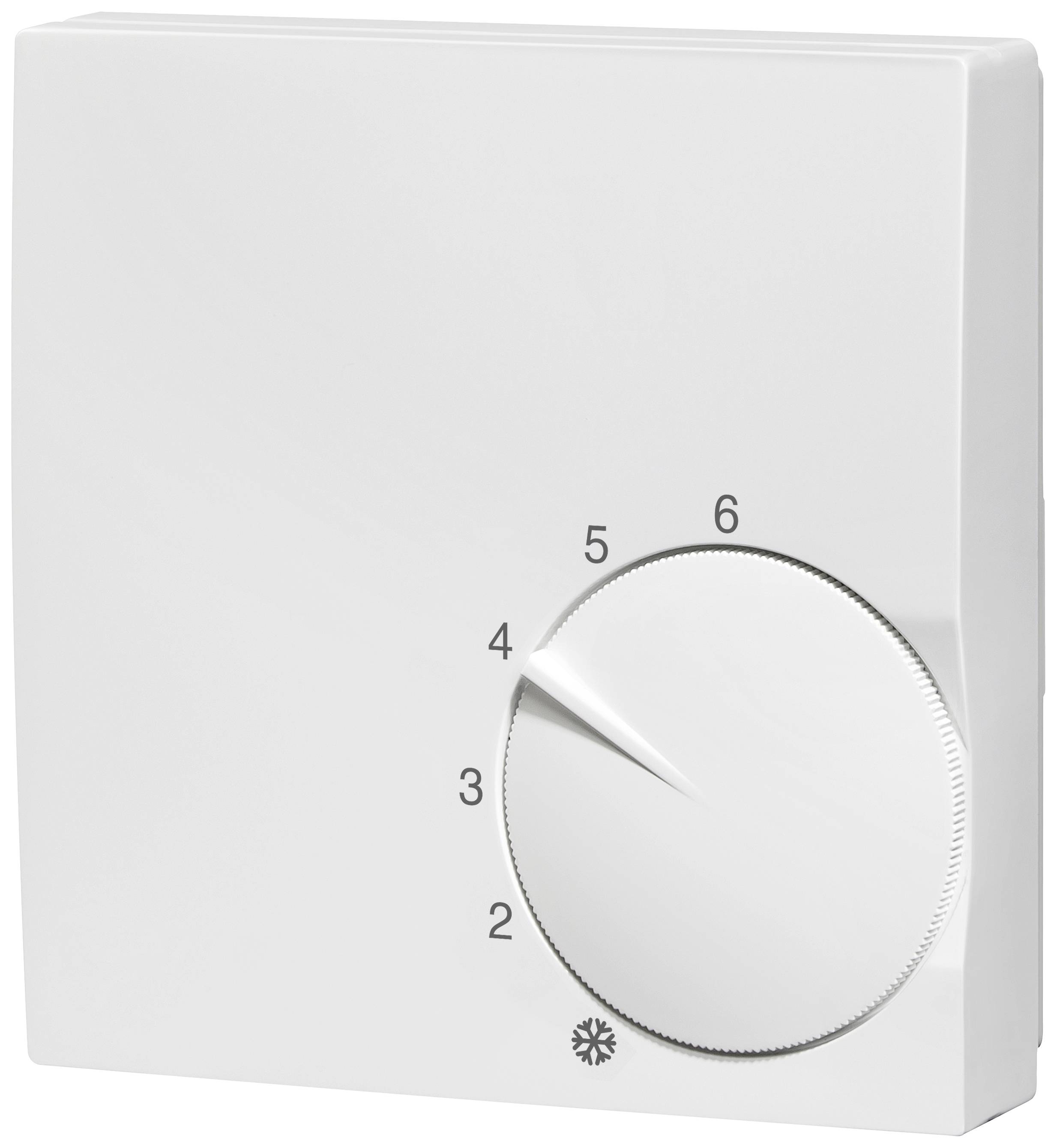

Slim RAL9010 surface-mounted thermostat
- Nominal voltage 230 VBreaking capacity NC contact 10 A.
- This text is machine translated.
Technical specifications
- Product type
Indoor thermostat
- Operation type
thermal
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Frost protection
Yes
- Compatible with
Heaters
- Mounting type
Surface-mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Factory colour
White
- Width
76.6 mm
- Height
20 mm
- Length
76.6 mm
IP20
- Dim
(L x W x H) 76.6 x 76.6 x 20 mm
- Min. temperature setting
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2619476 Ehmann 6162x0202 Indoor thermostat Surface-mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2619476 Ehmann 6162x0202 Indoor thermostat Surface-mount 1 pc(s)
Description
Features
- Installation: According to DIN 49073Building height 20 mmSensor element: Bimetal type 1C Switching difference: Approx. 0.5 K.Permissible air humidity: Max. 95 % RH, non-condensingMax. Permissible temperature change speed of the controlled system: 4K/h.Protection class: IP 20 after corresponding mounting
Scope of delivery
- Slim RAL9010 surface-mounted thermostat
