Einhell 4173190 GC-WW 6538 Domestic water pump 230 V 3800 l/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

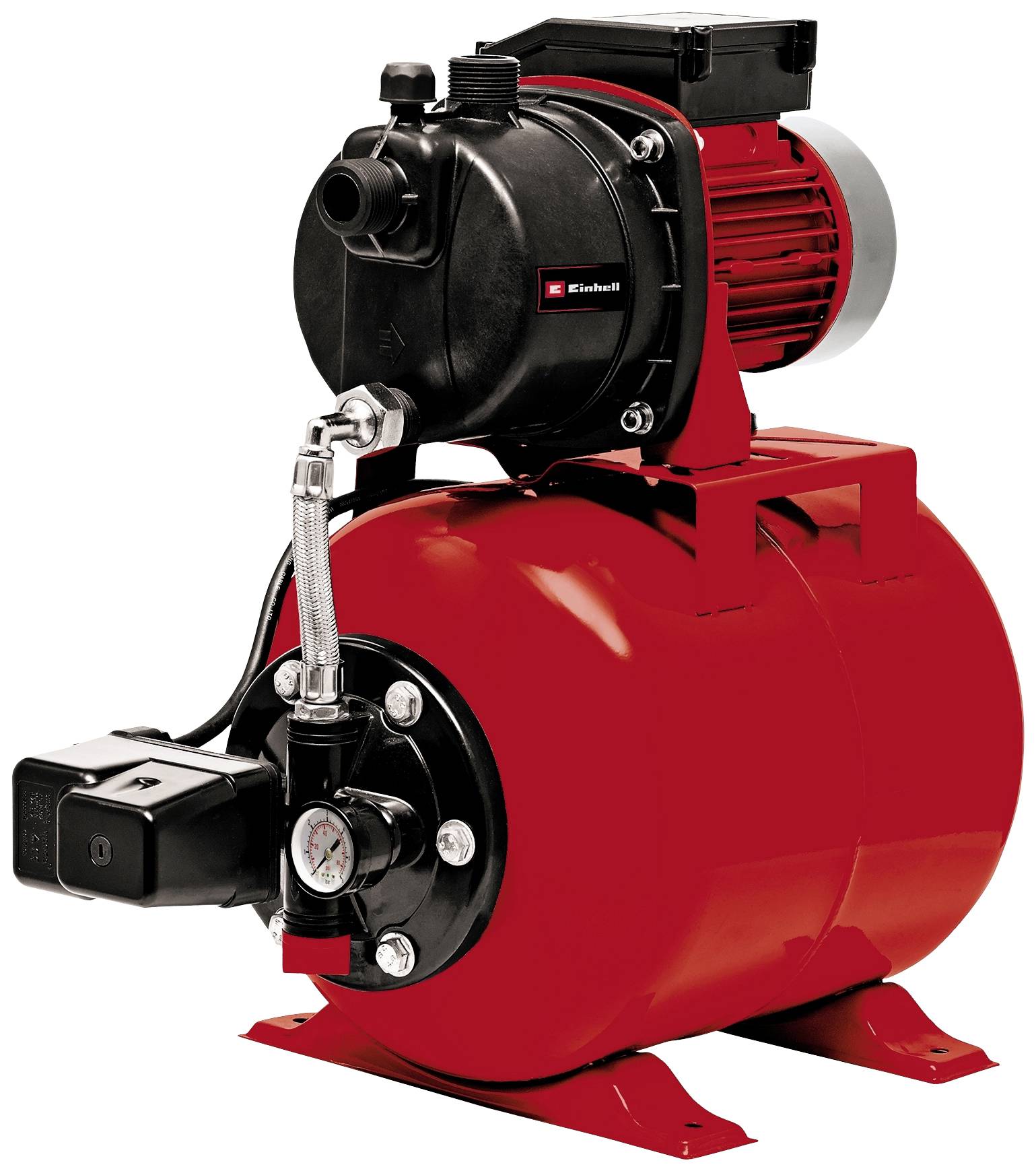

Einhell domestic water supply GC-WW 6538
- Max. flow 3800 l/h
- Max. pumping height 36 m
Technical specifications
- Max. Water temperature 35 °C
- Max. Switch-on pressure 1.5 bar
- Max. Stall pressure 3 bar.
- Operating voltage
230 V
- Power (P2)
650 W
- Max. feed rate
3800 l/h
- Max. delivery head
36 m
- Max. discharge pressure
3.6 bar
- Boiler volume
20 l
- Selfpriming up to
8 m
- Hose connector
33.25mm (1") OT
- Pressure connection
33.25mm (1") OT
- Max. cable length
1.40 m
- Weight
10.48 kg
- Dim
(L x W x H) 550 x 305 x 530 mm
- Length
550 mm
- Width
305 mm
- Height
530 mm
- Factory colour
Red
Black
- Product type
Domestic water pump
Documents & Downloads
Datasheet
Datasheet 1326147 Einhell 4173190 GC-WW 6538 Domestic water pump 230 V 3800 l/h
User & Safety Instructions
User & Safety Instructions 1326147 Einhell 4173190 GC-WW 6538 Domestic water pump 230 V 3800 l/h
Warranty Terms
Warranty Terms 1326147 Einhell 4173190 GC-WW 6538 Domestic water pump 230 V 3800 l/h
Description

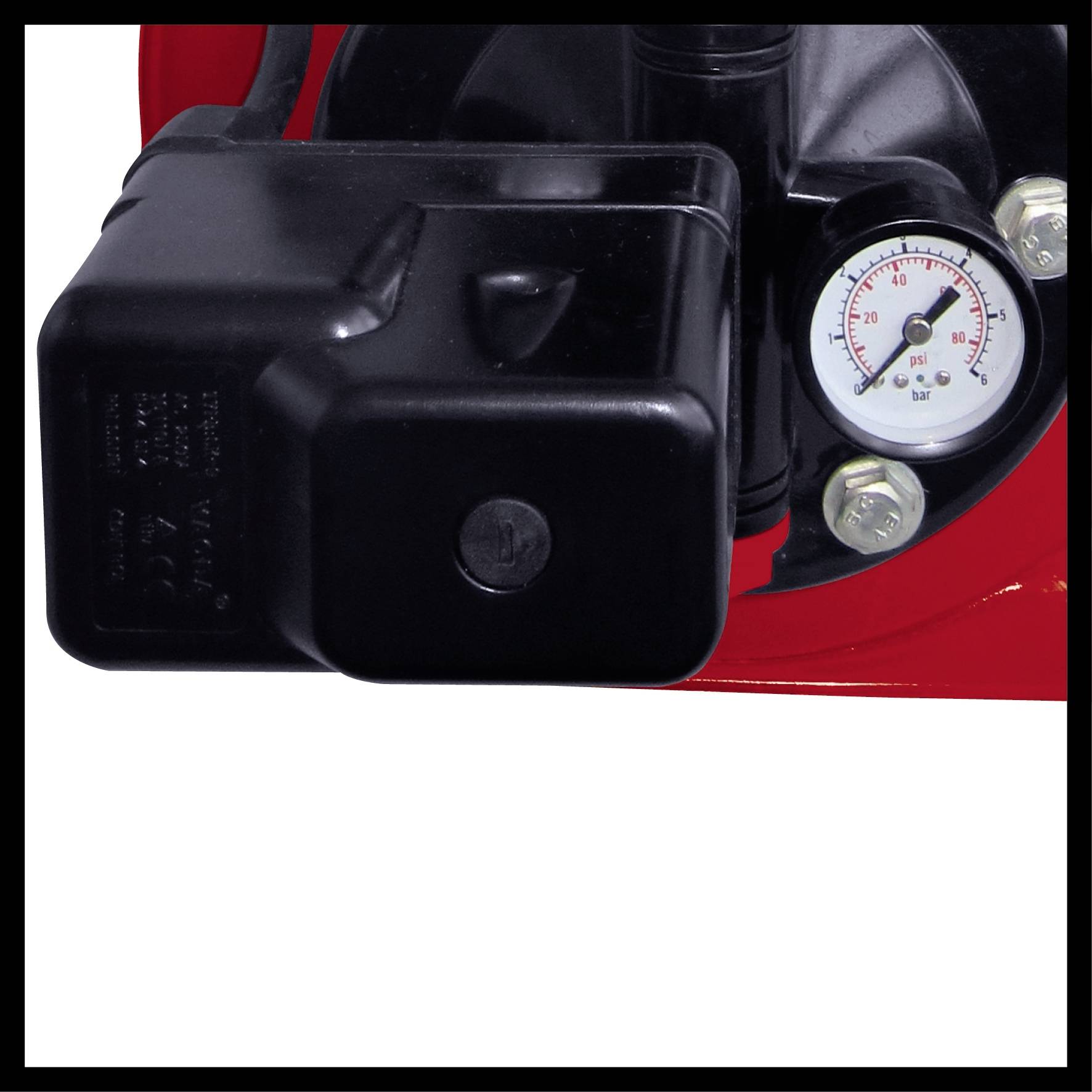

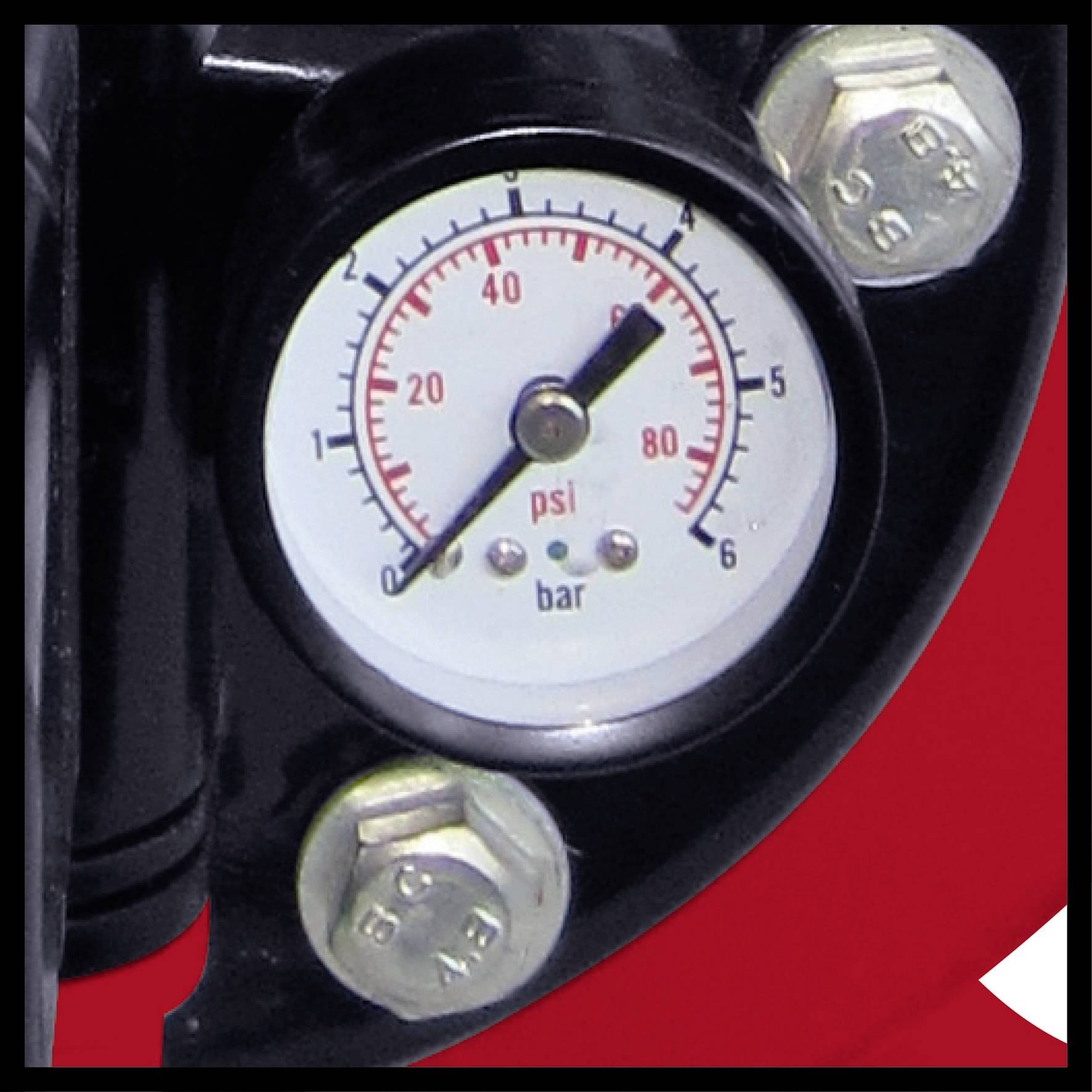

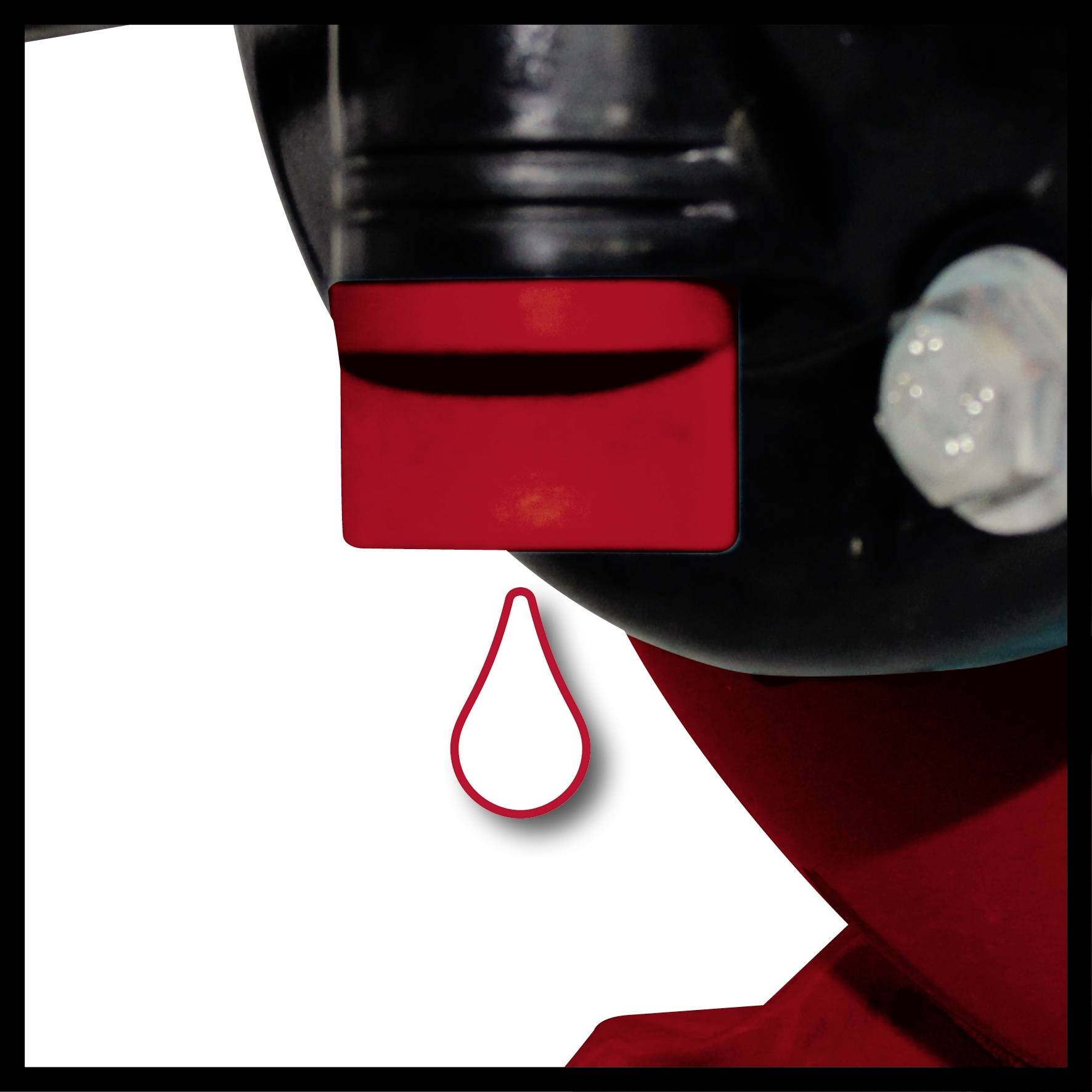

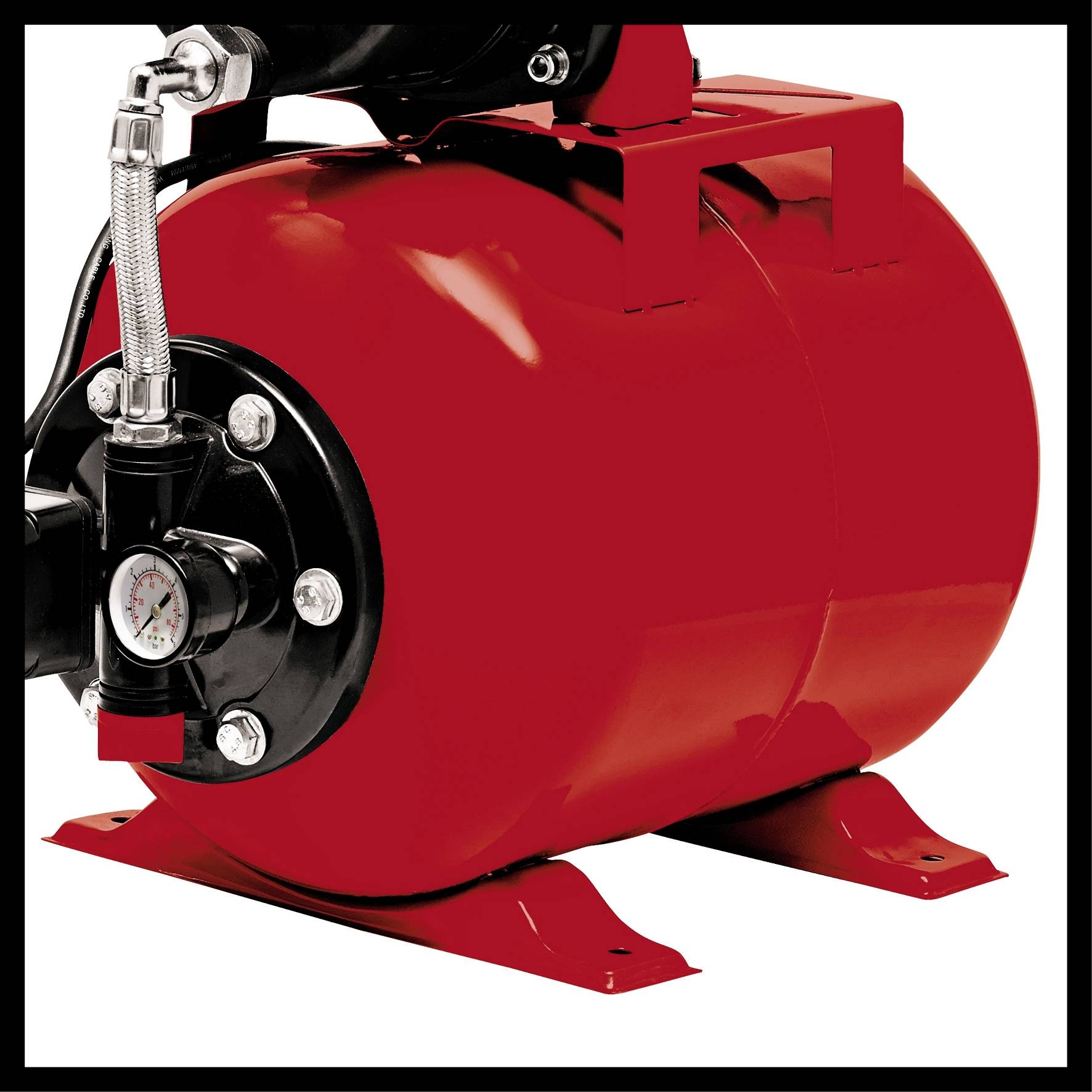

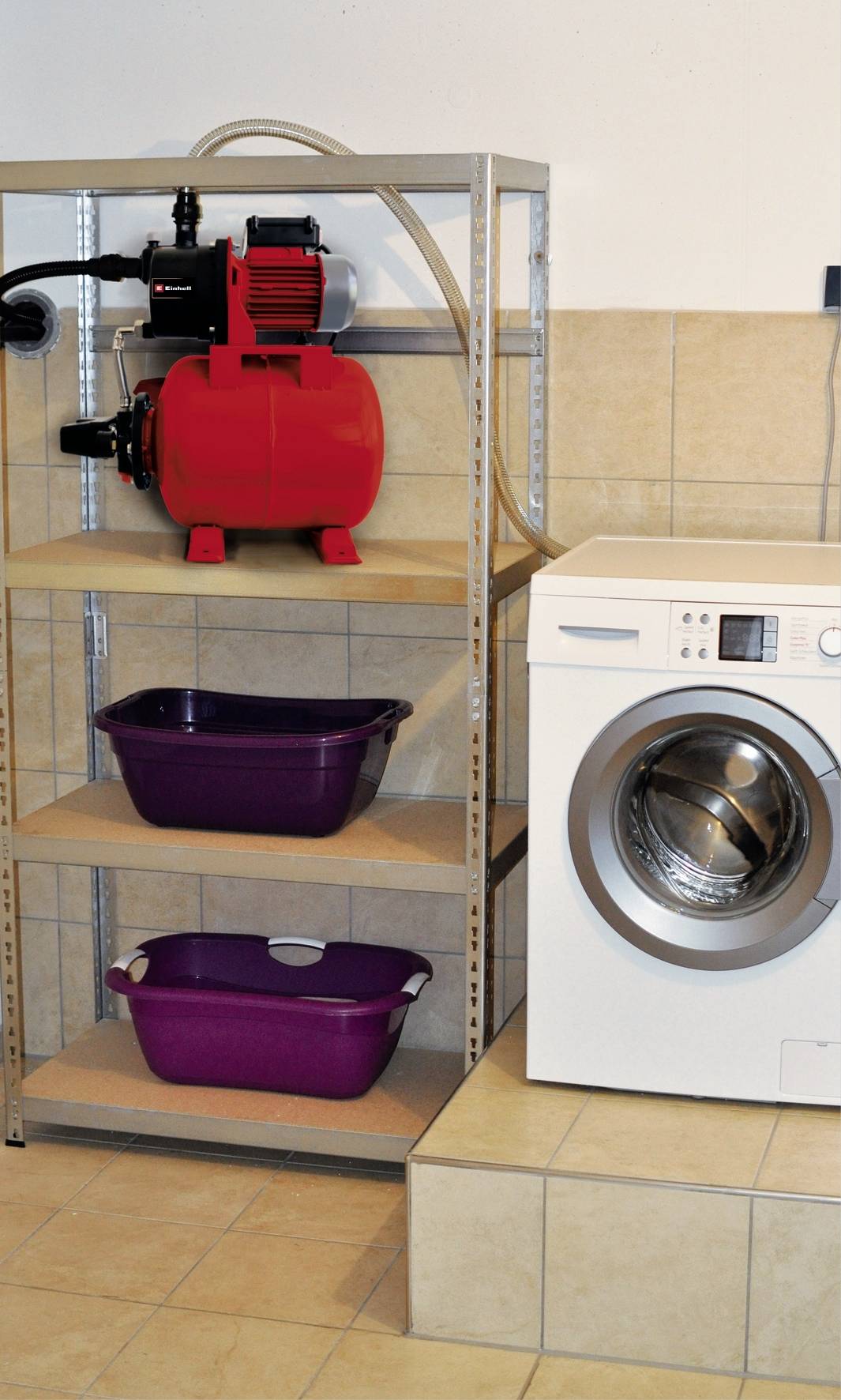

The GC-WW 6538 domestic water plant allows the extraction of clear water from reservoirs, wells and shafts to supply domestic water for irrigation systems, washing machines, toilet flushing and much more. Its robust 650-watt engine delivers up to 3,800 liters of water per hour. The pressure vessel of the GC-WW 6538 offers 20 liters of container volume, so that the pump does not start every time water is drawn. Only when the pressure drops, the pump is switched on automatically by the integrated pressure switch and deactivated again after reaching the max. pressure. The pressure can be read at a glance using the built-in pressure gauge. The pump is equipped with a water filling screw for effortless filling. The emptying of the residual water is done comfortably via a water drain screw.
This text is machine translated.
This text is machine translated.
Features
- ButtonManometers20 liter containerWater filling screwWater drain plug
Scope of delivery
- 1x domestic water supply GC-WW 6538
