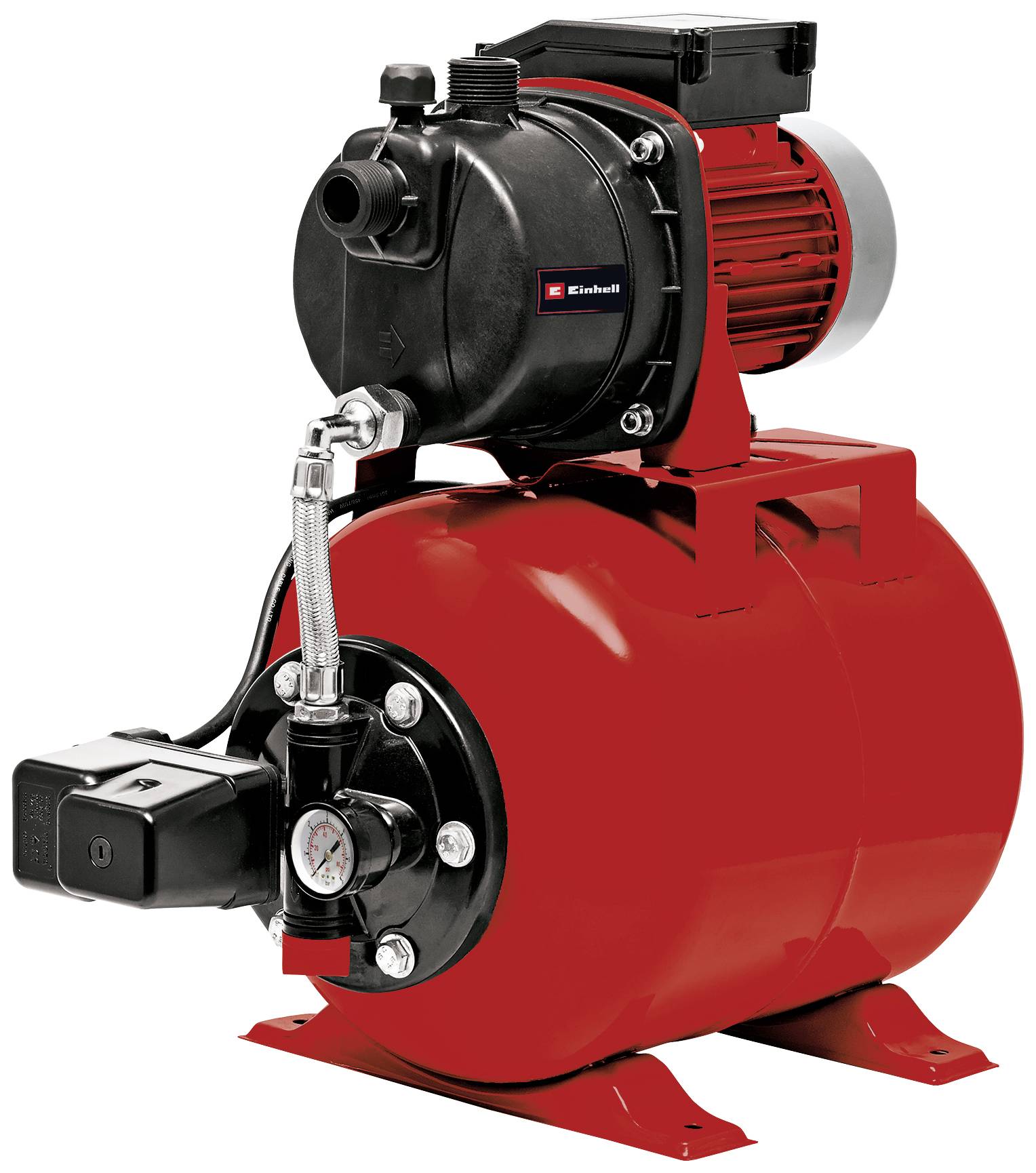

Einhell 4173193 GC-WW 6538 Set Domestic water pump 3800 l/h
EAN:
Part number:
Item no:
Domestic water supply set GC-WW 6538
Highlights & Details
- Water drain plugManometers
Technical specifications

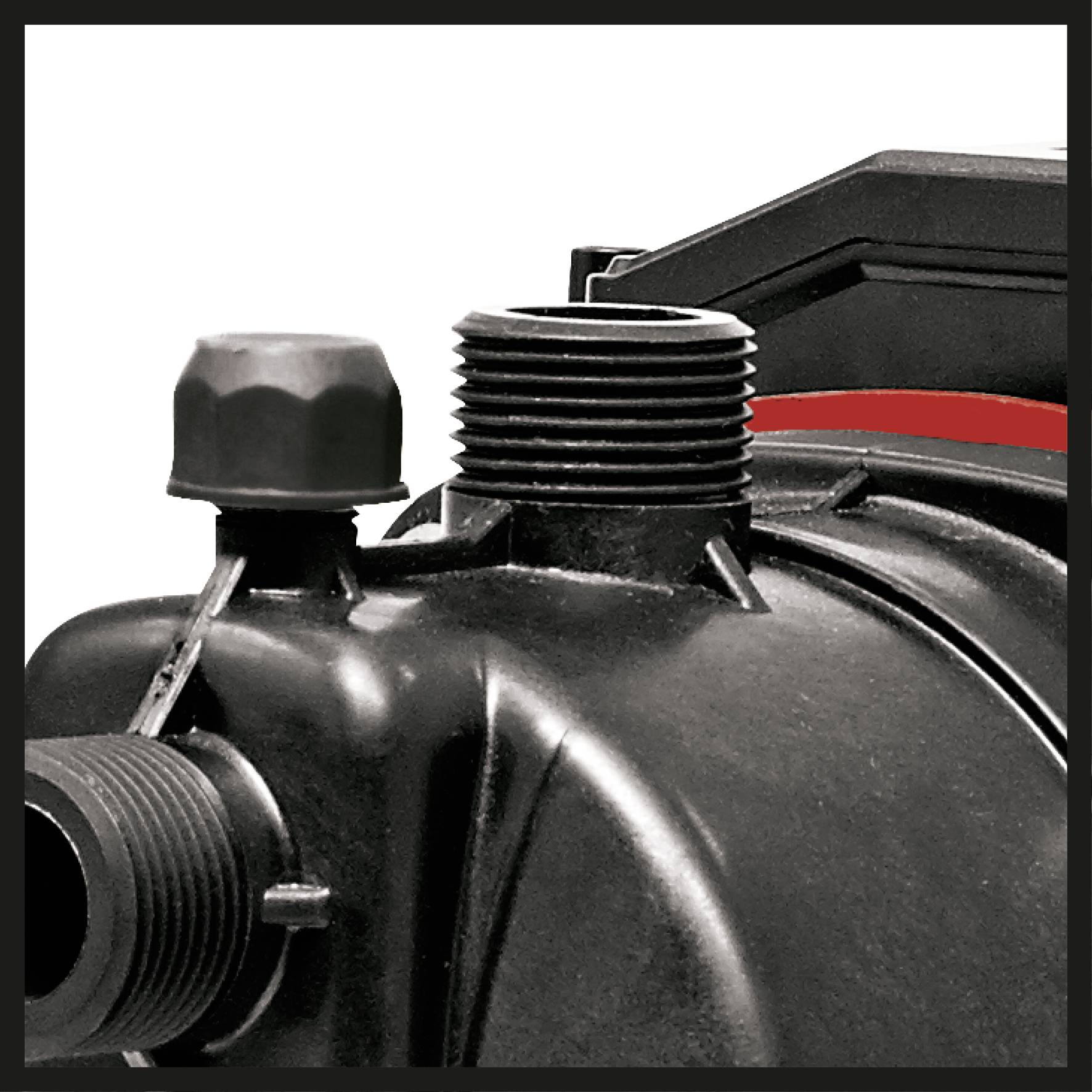

- Suction connection 33.3mm (R1 AG)Pressure connection 33.3mm (R1 AG)
- Product type
Domestic water pump
- Power (P2)
650 W
- Max. feed rate
3800 l/h
- Max. delivery head
36 m
- Max. discharge pressure
3.6 bar
- Boiler volume
20 l
- Max. cable length
1.4 m
- Weight
10.5 kg
- Dim
(L x W x H) 50.0 x 27.0 x 49.5 cm
- Length
50.0 cm
- Width
27.0 cm
- Height
49.5 cm
- Factory colour
Red
IPX4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2533642 Einhell 4173193 GC-WW 6538 Set Domestic water pump 3800 l/h
Information
Information 2533642 Einhell 4173193 GC-WW 6538 Set Domestic water pump 3800 l/h
Warranty Terms
Warranty Terms 2533642 Einhell 4173193 GC-WW 6538 Set Domestic water pump 3800 l/h
Description

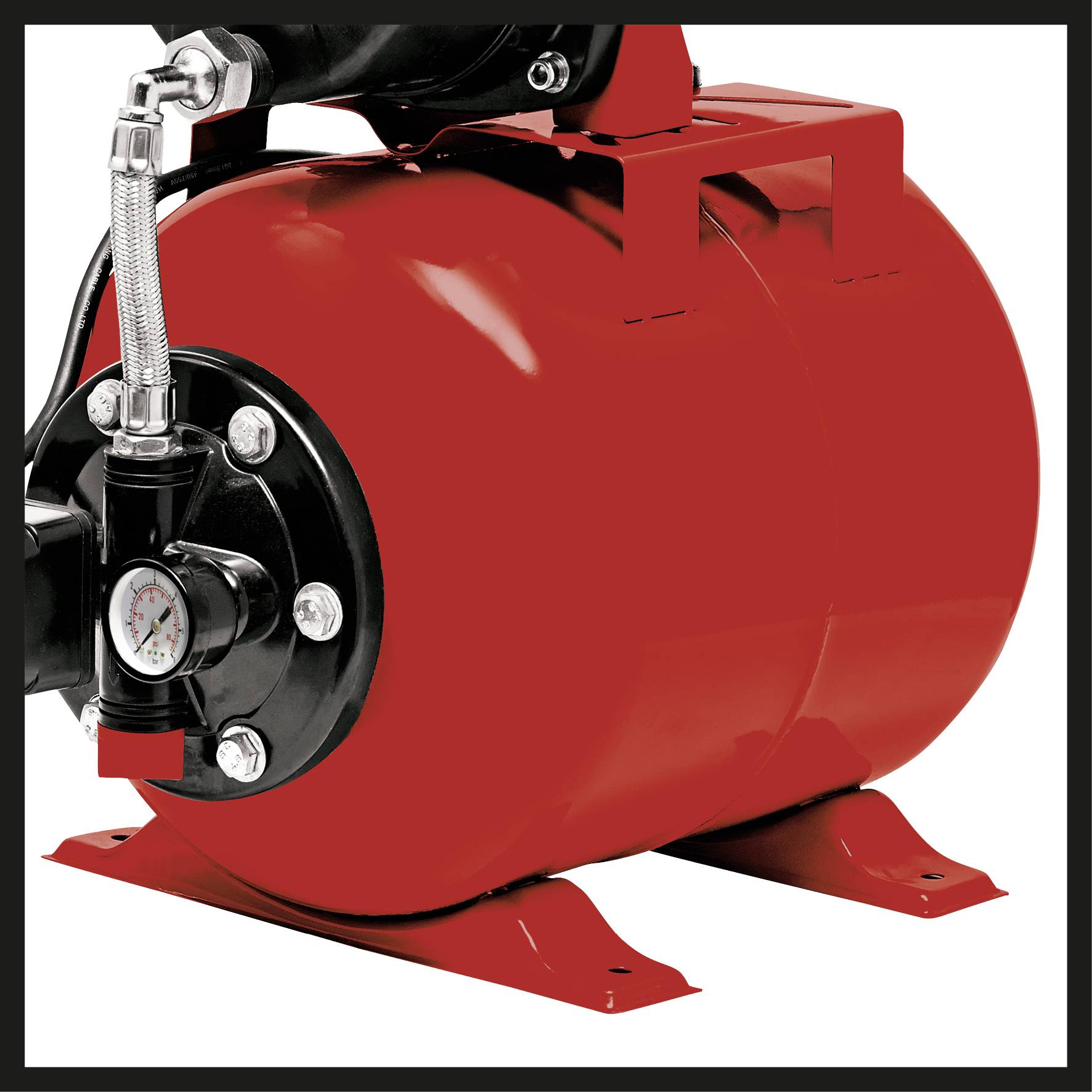

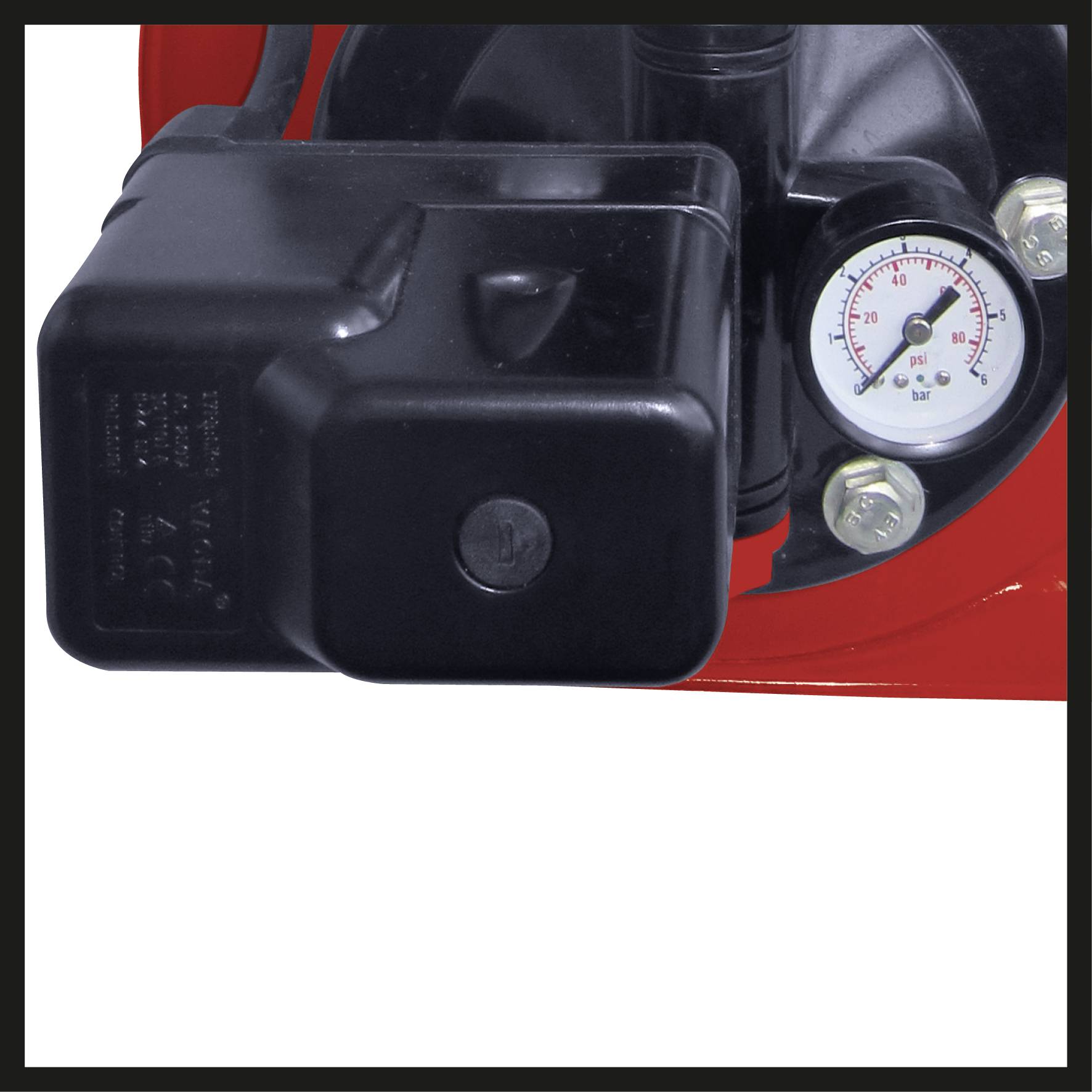

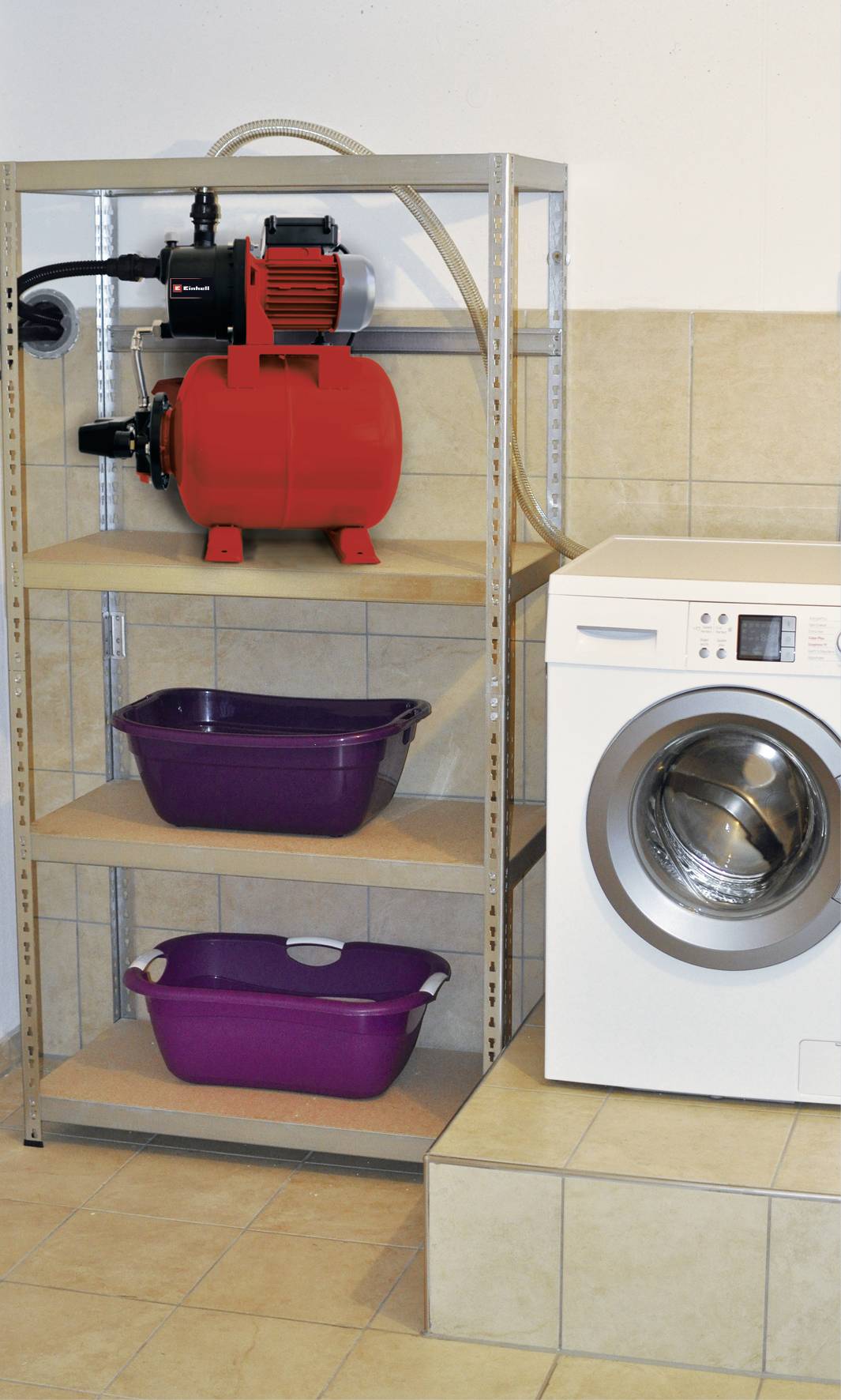

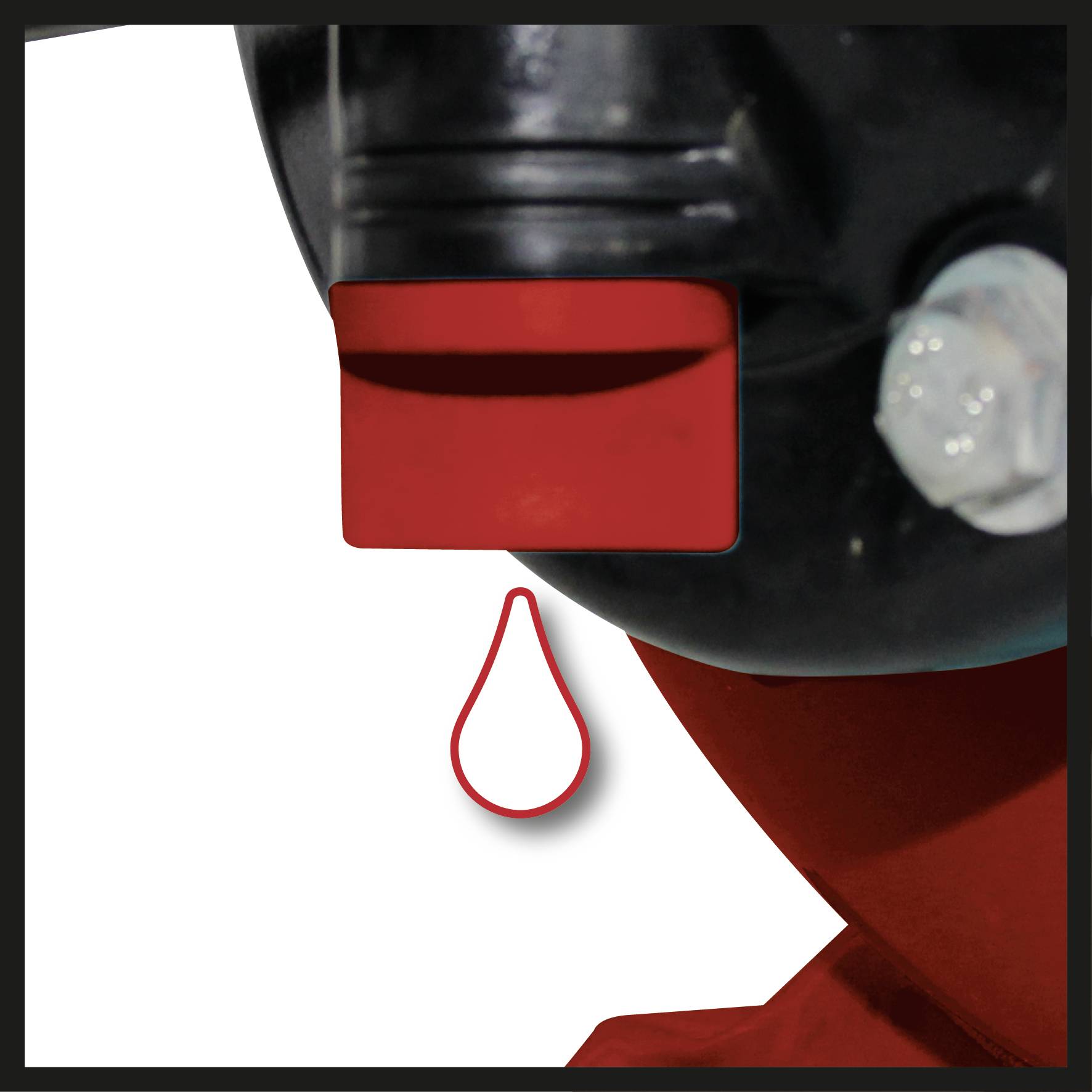

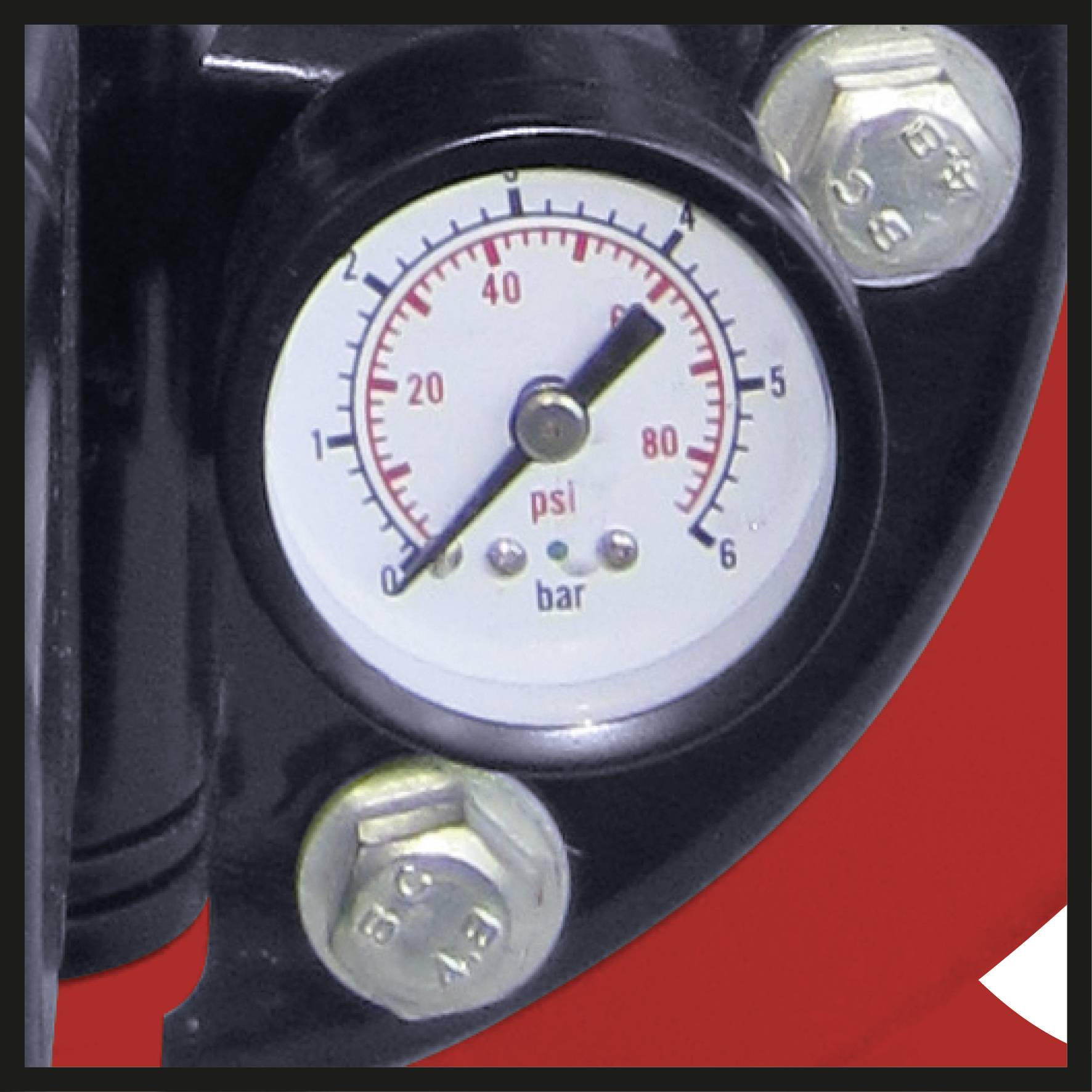

The GC-WW 6538 domestic water plant allows the extraction of clear water from reservoirs, wells and shafts to supply domestic water for irrigation systems, washing machines, toilet flushing and much more. Its robust 650-watt engine delivers up to 3,800 liters of water per hour. The pressure vessel of the GC-WW 6538 offers 20 liters of container volume, so that the pump does not start every time water is drawn. Only when the pressure drops, the pump is switched on automatically by the integrated pressure switch and deactivated again after reaching the max. pressure. The pressure can be read at a glance using the built-in pressure gauge. The pump is equipped with a water filling screw for effortless filling. The emptying of the residual water is done comfortably via a water drain screw. Supplied with the GC-WW 6538 set including a 7m long suction hose.
This text is machine translated.
This text is machine translated.
Features
- ButtonManometersContainer with 20 liters volumeWater filling screwWater drain plugIncludes suction hose with 7m length
Scope of delivery

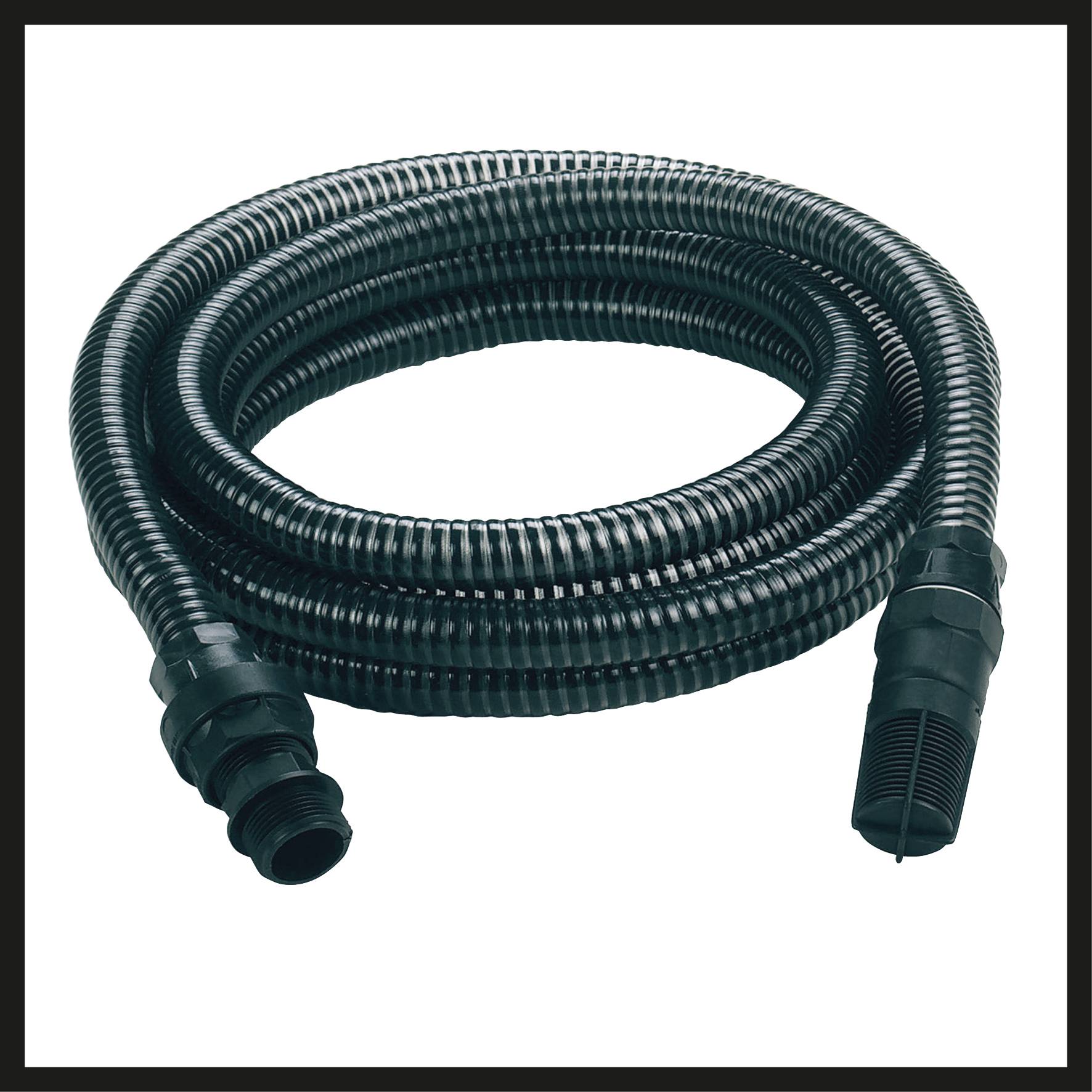

- Includes suction hose with 7m length
