Buy Einhell 4181600 Power X-Change GE-DP 7535 N LL Effluent sump pump Multi-stage 18500 l/h 9 m

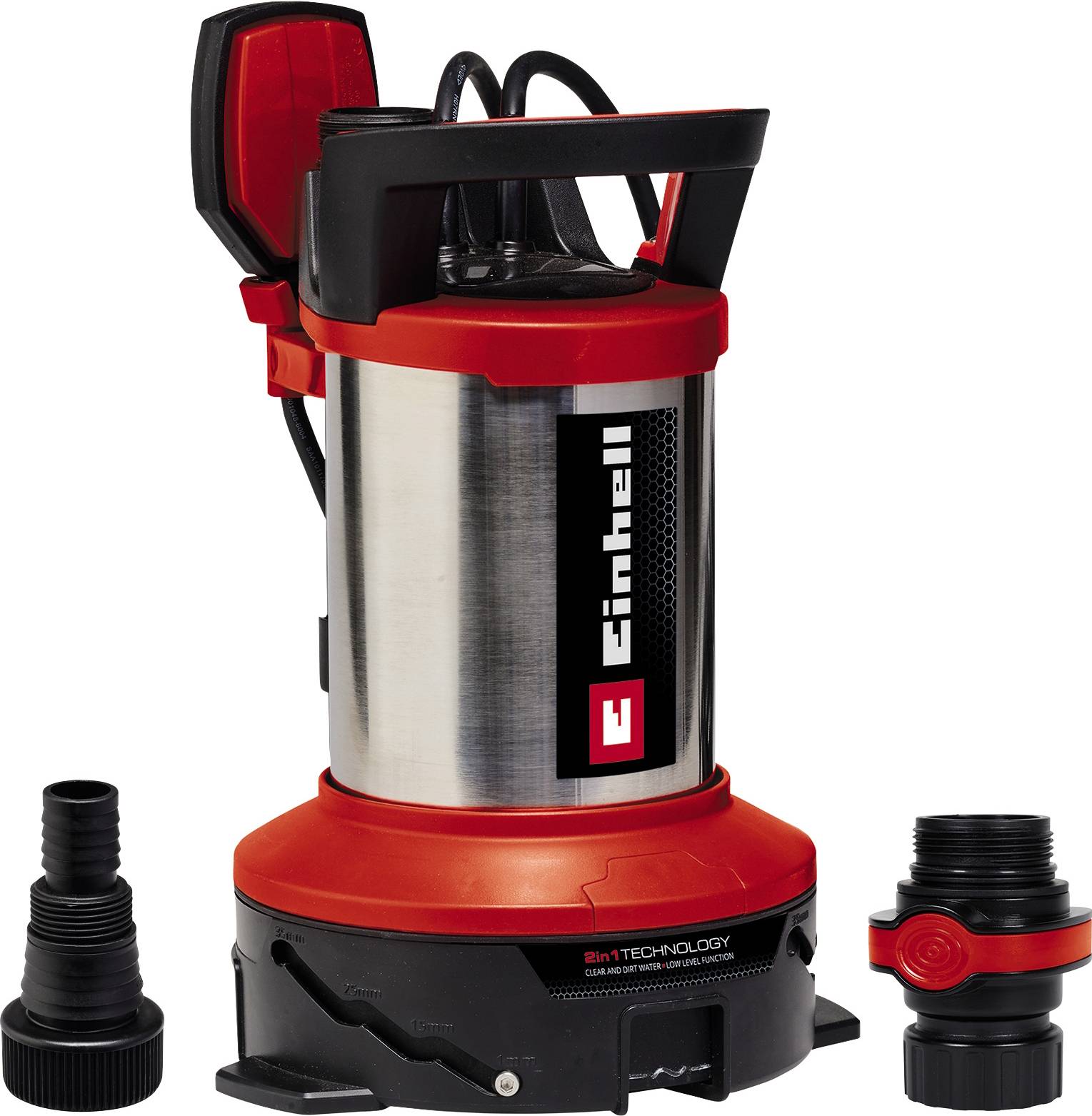

'Submersible pump by Einhell in red and black, with stainless steel housing and removable hose connection, suitable for water transfer.'

Two black plastic connectors: on the left a wider one with a red ring, on the right a narrower one with a ribbed surface.

'Close-up of a red and black water pump with cable and handle on top.'

A red and black submersible pump by Einhell with a handle, connections, and '3in1 TECHNOLOGY' printed on the base.

Stainless steel submersible pump with red and black casing, suitable for use in water environments.

Submersible pump with a red housing and black cable. Suitable for pumping water in construction or gardening projects.

Overhead router cutting material: left shows a finer cut of 1 mm, right shows a deeper cut of approximately 35 mm. Comparison of cutting depths.

Two surface comparisons: Left rough with '15 mm', right smooth with '1 mm'. Red arrows pointing to irregularities.

Industrial machine with a red metal base, vertical metal rods, and a black top section. Used for mechanical processing.

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Report legal concerns

Highlights & Details

Einhell waste water pump GE-DP 7535 N ll eco

2-in-1 combination pump for clear water and dirt water
Clear water: Flat suction up to 1 mm residual water level
Dirty water: Up to 35 mm grain size in coarse dirt water

Technical specifications

Max. Water temperature 35 ° C.
Cable H07RN-F
Flat suction to 1 mm
Min Water level Pump start 15 mm
Max. Delivery pressure 0.9 bar
Number of pump floor settings: 4
Aquarium sensor Starting height 1: 10 mm
Aquarium sensor Starting height 2: 26 mm
Aquarium sensor Starting height 3: 36 mm

Product type: Effluent sump pump

Features: Multi-stage

Max. delivery head: 9 m

Max. feed rate: 18500 l/h

Max. discharge pressure: 0.9 bar

Operating voltage: 230 V

Power consumption (P1): 750 W

Connection: 47.8mm (1 1/2" AG)

Max. size of solids: 35 mm

Immersion depth: 7 m

Max. cable length: 10 m

Float switch: Yes

Length: 245 mm

Width: 240 mm

Height: 494 mm

Dim: (L x W x H) 245 x 240 x 494 mm

Weight: 7900 kg

: IPX8

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3053853 Einhell 4181600 Power X-Change GE-DP 7535 N LL Effluent sump pump Multi-stage 18500 l/h 9 m

User & Safety Instructions

User & Safety Instructions 3053853 Einhell 4181600 Power X-Change GE-DP 7535 N LL Effluent sump pump Multi-stage 18500 l/h 9 m

Warranty Terms

Warranty Terms 3053853 Einhell 4181600 Power X-Change GE-DP 7535 N LL Effluent sump pump Multi-stage 18500 l/h 9 m

Description

The Einhell waste water pump GE-DP 7535 N LL ECO 2-in-1 is the all-rounder among the pumps. The combined pump is particularly suitable for the fast pumping of ponds, construction pits or flooded cellars and can be used for clear and dirt water up to 3.5 cm grain size. The combined waste water pump satisfies with latest technology, rich performance and optimum energy efficiency - with an output of 750 watts this strong submersible pump supports up to 18,500 liters of water every hour. It can pump over a maximum delivery height of 9 m of water. Thanks to ECO-Power, the pump has a high performance despite lower energy consumption. The continuously adjustable float switch offers the choice between continuous operation and a pre-selected on and off level. The dry-run protection ensures that the engine only works when the waste water pump is in the water and thus prevents damages to the device. A pump start is possible starting from a water level of just 15 mm. With the suction level regulation through a simple rotary movement a fast adjustment can be made in 4 stages of the desired function. A pump for two tasks: Flat suction up to 1 mm remaining water level in clear water mode or extraction of waste water with a grain size of up to 35 mm. A rope can be optimally attached to the pump with the help of suspension eyes, whereby it can be easily and in a controlled way drained. The extremely robust pump casing made of stainless steel and the high-quality sliding ring seal withstands even the most difficult drainage tasks and provides a long life. By the practical, ergonomic carrying handle this 2-in-1 combination pump is quick and easy to use anywhere and a cable winding function keeps things tidy. The delivery package includes a quick connector for a quick hose change and a universal adapter for 25/38 mm hoses as well as 33.3 mm (G 1") AG

This text is machine translated.
