Einhell TE-SM 8 L Dual Chop and mitre saw 216 mm 1800 W
EAN:
Part number:
Item no:
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Chop-miter saw TE-SM 8 L Dual
- 1800 W
- Cutting depth (max.) (45°/ 90° ): /
Technical specifications
- Pivoting range (saw head) -45 ° - +45 °
- Swivel range (Saw bench) -47 ° - +47 °
- Cutting depth 90° x 90° 305 x 65 mm
- Cutting depth 90° x 45° 215 x 65 mm
- Cutting depth 45° x 90° 305 x 35 mm
- Cutting depth 45° x 45° 215 x 35 mm
- Suction connection 36 mm
- Diameter saw blade receptacle 30 mm
- Idle speed max. 5000 min^-1
- Product weight 13.25 kg
- Cutting width 45° x 45° 215 mm
- Cutting width 90° x 90° 305 mm
- Cutting depth 45° x 45° 35 mm
- Cutting depth 90° x 90° 65 mm
- Saw blade type 1 HW/TCT
- Product type
Chop and mitre saw
- Saw blade diameter
216 mm
1800 W
- Dim
(L x W x H) 950 x 655 x 360 mm
- Length
950 mm
- Width
655 mm
- Height
360 mm
- Number of cogs
48
- Weight
13.25 g/m
- Content
1 pc(s)
- Idle speed
5000 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2895719 Einhell TE-SM 8 L Dual Chop and mitre saw 216 mm 1800 W
Information
Information 2895719 Einhell TE-SM 8 L Dual Chop and mitre saw 216 mm 1800 W
Warranty Terms
Warranty Terms 2895719 Einhell TE-SM 8 L Dual Chop and mitre saw 216 mm 1800 W
Description
The TE-SM 8 L Dual miter saw is the perfect choice for any miter cutting task on this project. With powerful 1,800 watts and an idle speed of 5000 revolutions per minute, the robust Ø 216 mm carbide saw blade with 48 teeth works quickly and finely through the material. The robust saw has a smooth-running pull function for broad work pieces. This enables a cutting width of max. 305 mm and a cutting depth of max. 65 mm. The precise angle setting on the aluminum rotary table simplifies the desired oblique cut. For the most common angles, snap-in positions are already provided in the rotary table, which can be read clearly on the basis of an angle scale. The angle setting up to 47° to the left and right facilitates quick adjustment. The saw head can also be inclined to 45° to the left and right with a quick adjustment and thus provides for a flexible and almost freely selectable miter cut. The well visible integrated cross-line laser and the depth stop make the work much easier. In each case, left and right, supports are provided for longer workpieces. A practical clamping device is provided so that the work pieces can also be fixed securely. The easily accessible spindle lock makes it easy to change the saw blade and goes quickly from the hand. A chip-collection funnel is located behind the saw blade for improved saw removal. In addition, a suitable wet/dry vacuum cleaner can be attached with the available Ø 36 mm suction connection which keeps the workplace even cleaner.
This text is machine translated.
This text is machine translated.
Features
- Specially stored draw function with perfect sliding properties

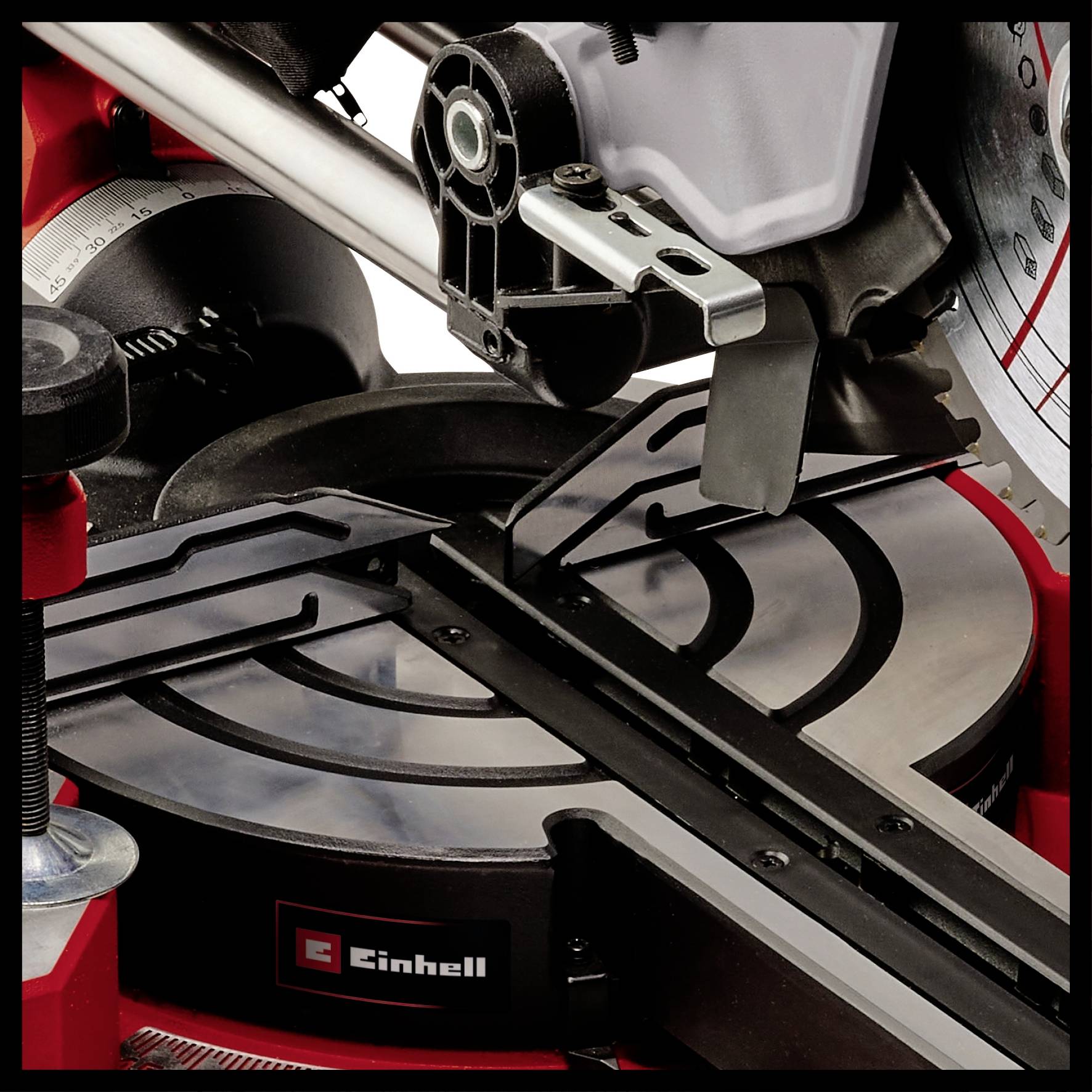

- Rotary table with latching positions at the most commonly used angles

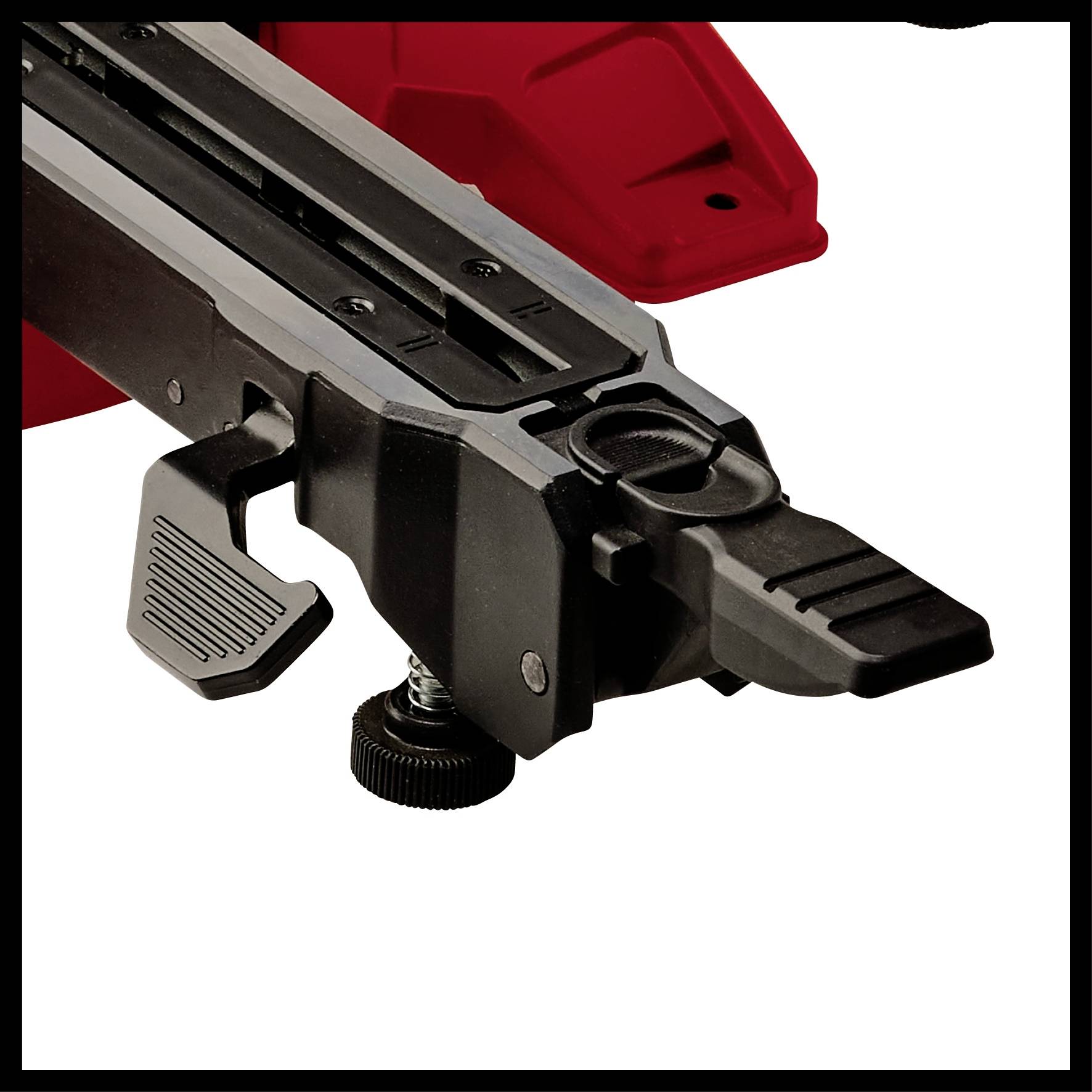

- Angle adjustment on the rotary table comfortably by quick adjustment

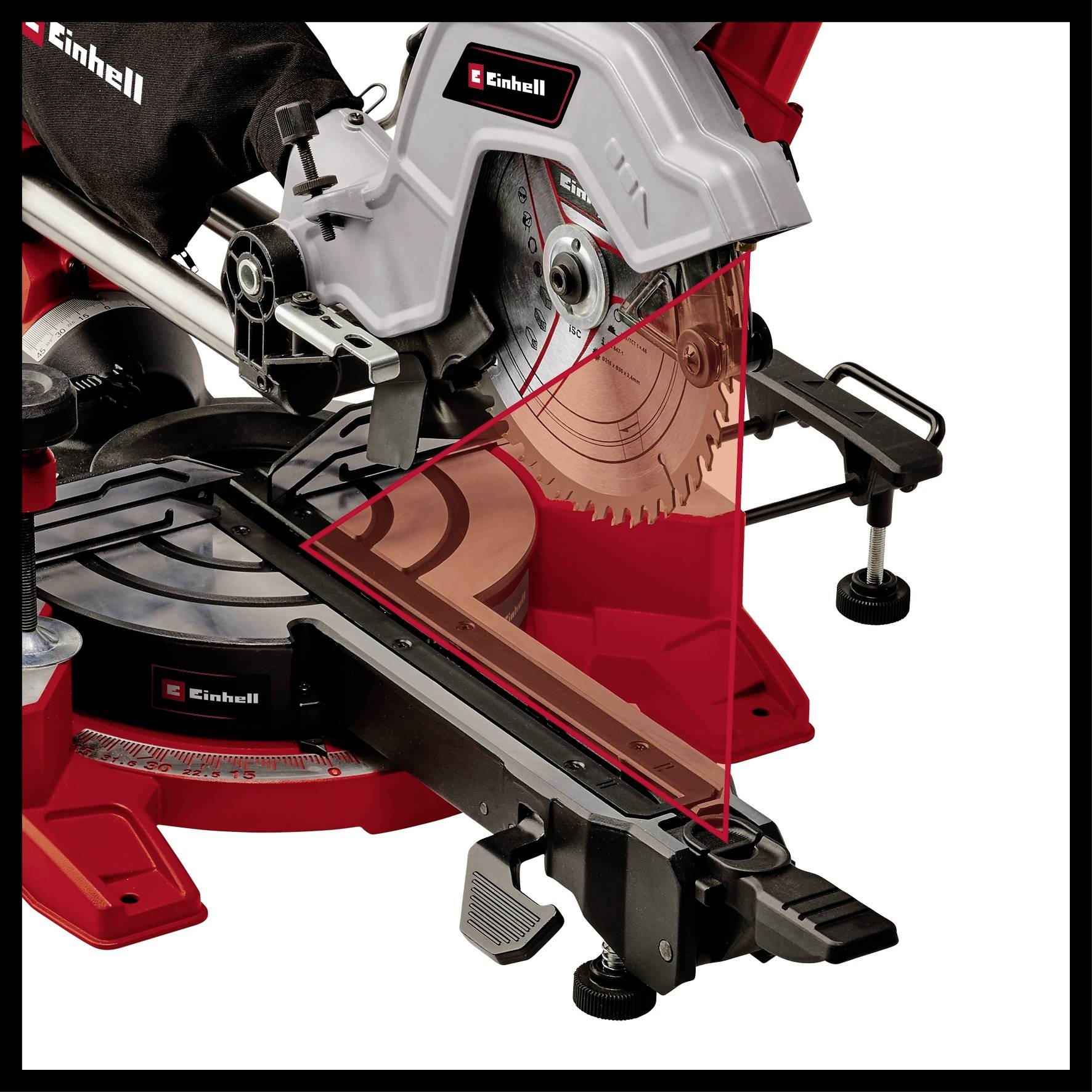

- Highly visible laser for precise cutting lines

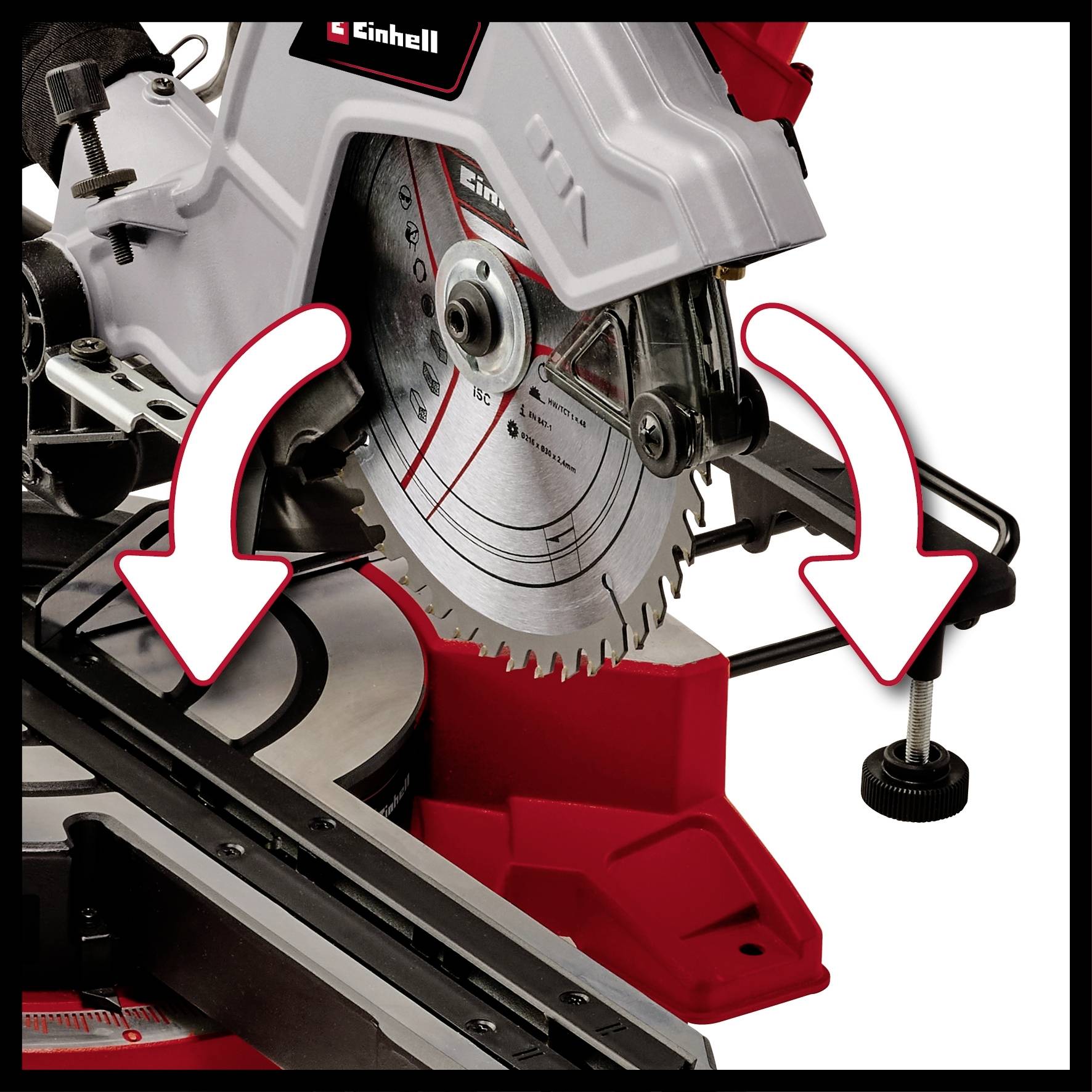

- Saw head can be tilted to the left and right for miter cuts
- Table extensions on both sides for longer work pieces
- High quality carbide saw blade for perfect cut pattern
- Easily accessible spindle locking for easy change of saw-blades

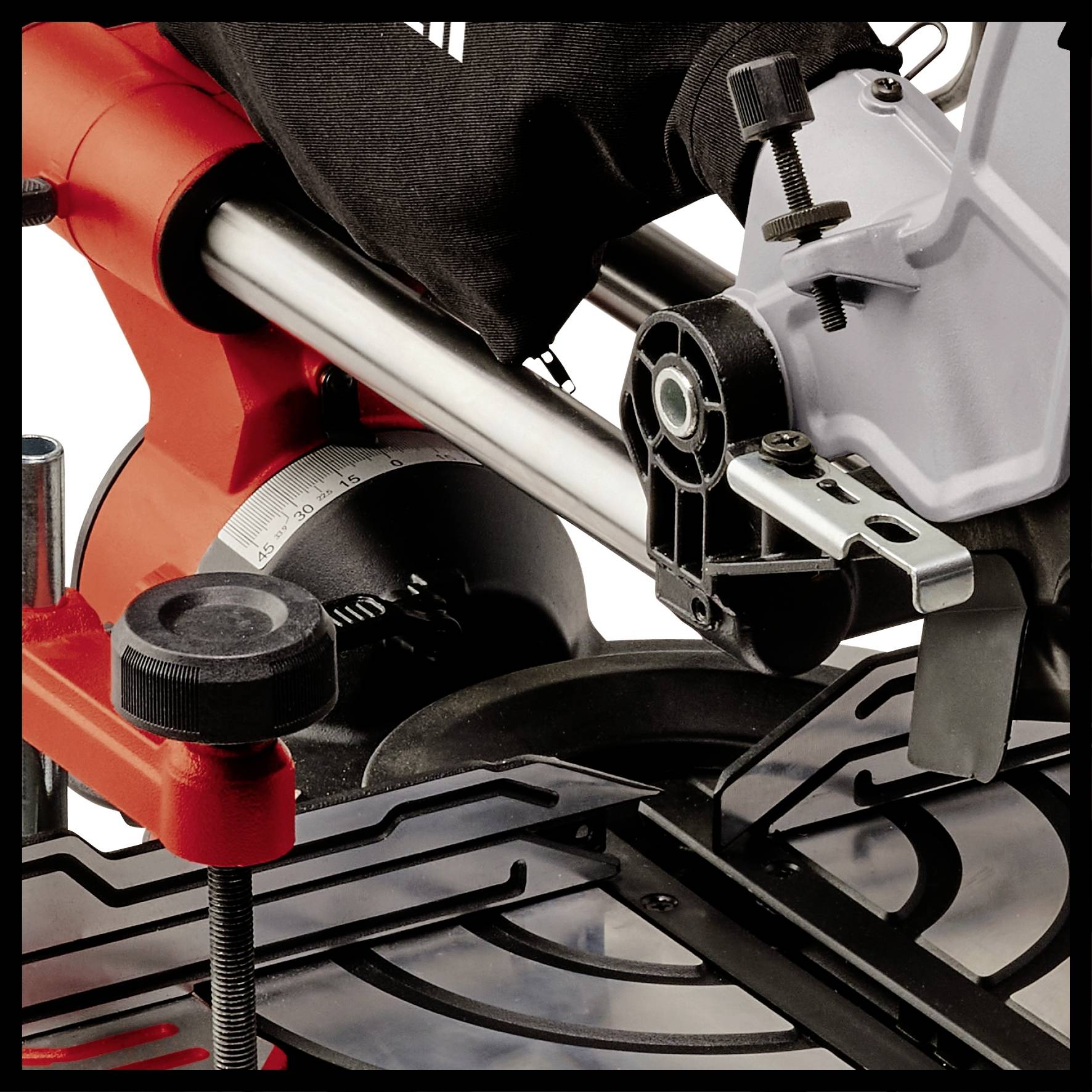

- Highly visible and readable angle scales
- With 6 bits. Clamping device for fixing the work-piece

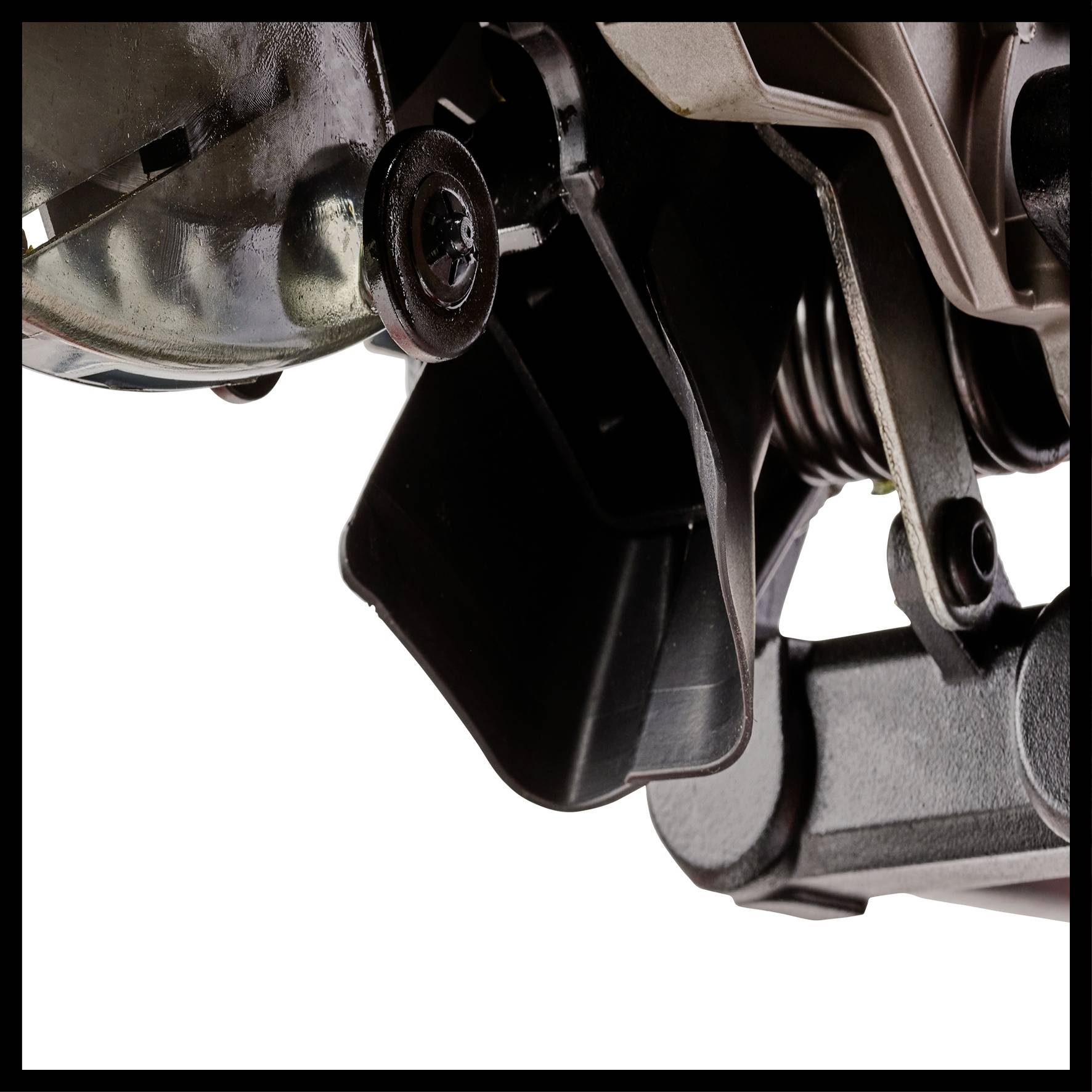

- Chip collection funnel behind the saw blade for a clean work place
- Suction connection (⌀ 36 mm)
Scope of delivery
- 1x TE-SM 8 L Dual pull-cap miter saw, 1x saw blade
