Buy EIZO ColorEdge LCD EEC E (A - G) 61.2 cm (24.1 inch) 1920 x 1200 p 16:10 11 ms IPS LCD

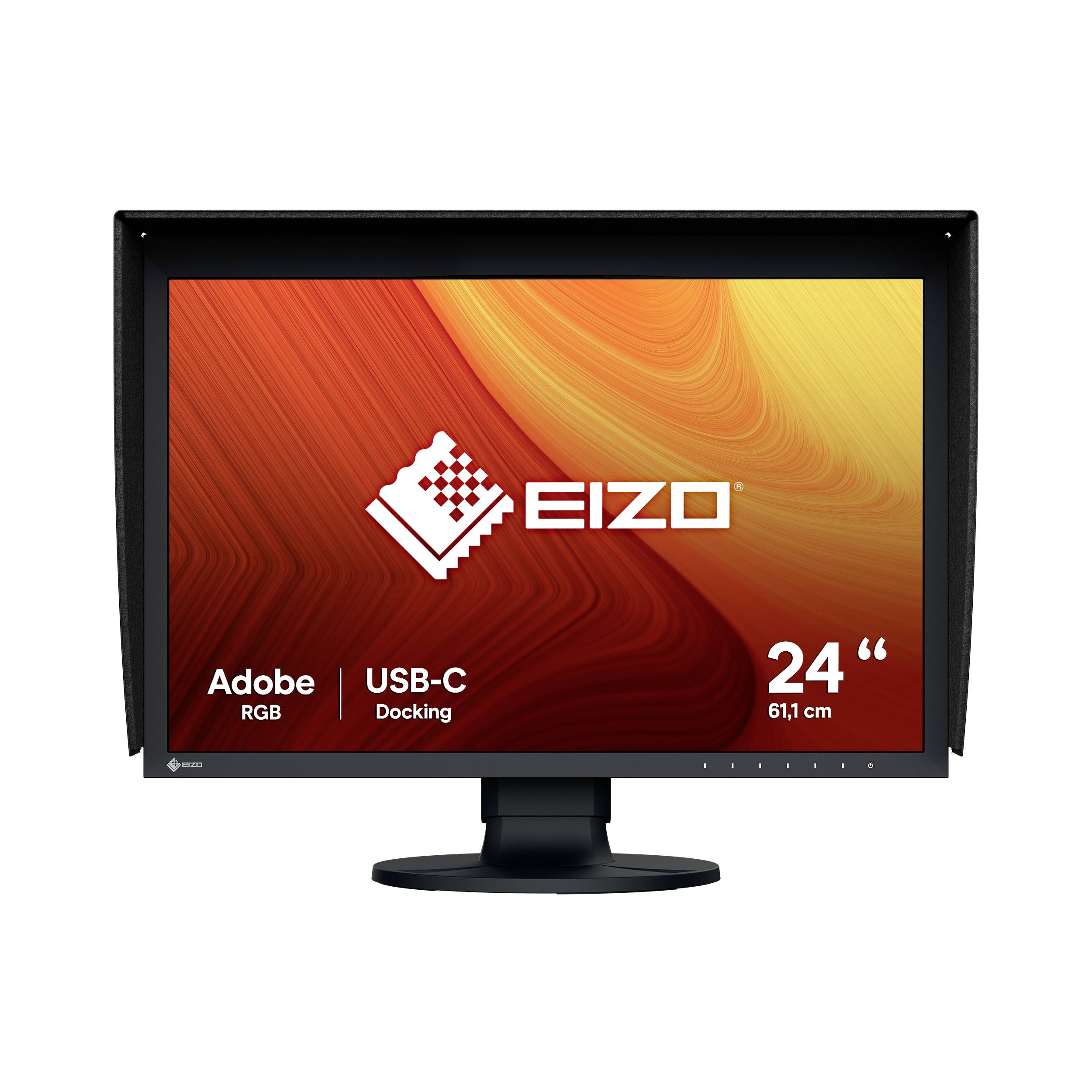

Black EIZO desktop monitor on a stand, showing an orange screen with 'Adobe RGB', 'USB-C Docking', and '24 in' text.<br>

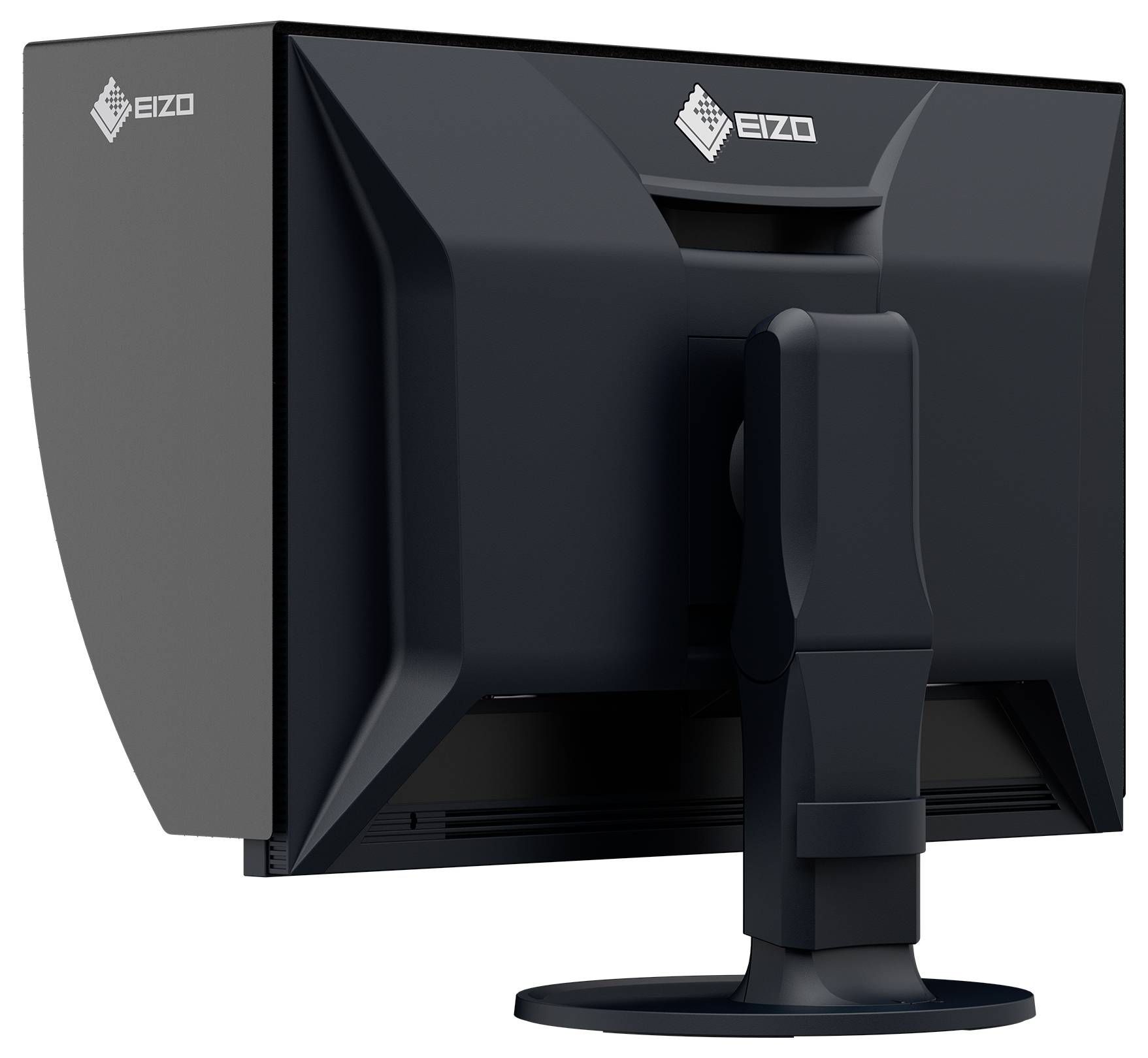

Back view of a black EIZO computer monitor on a stand, showing the rear design and central mount.

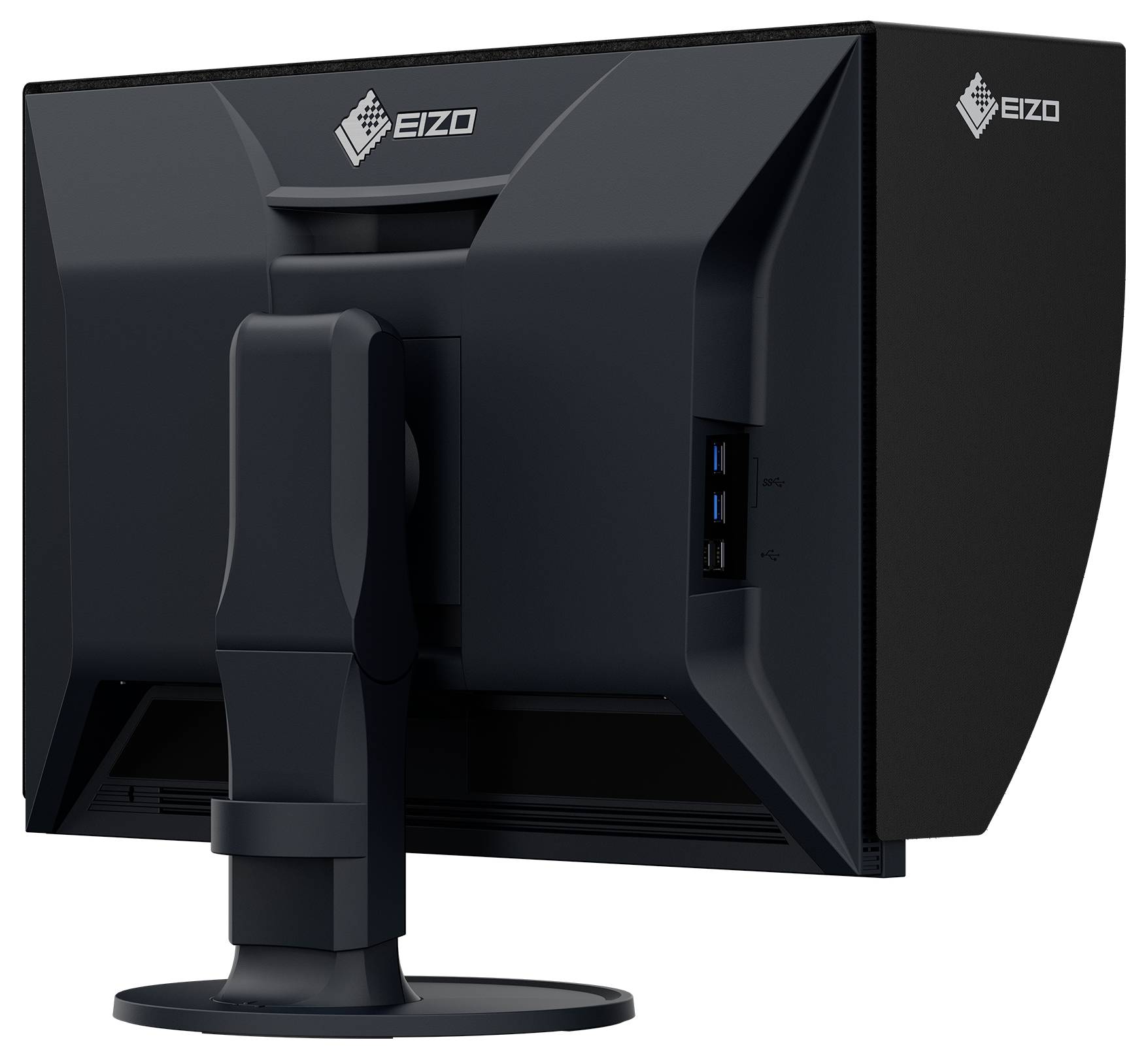

Rear view of an EIZO computer monitor with stand, showing side USB ports and ventilation on a white background.

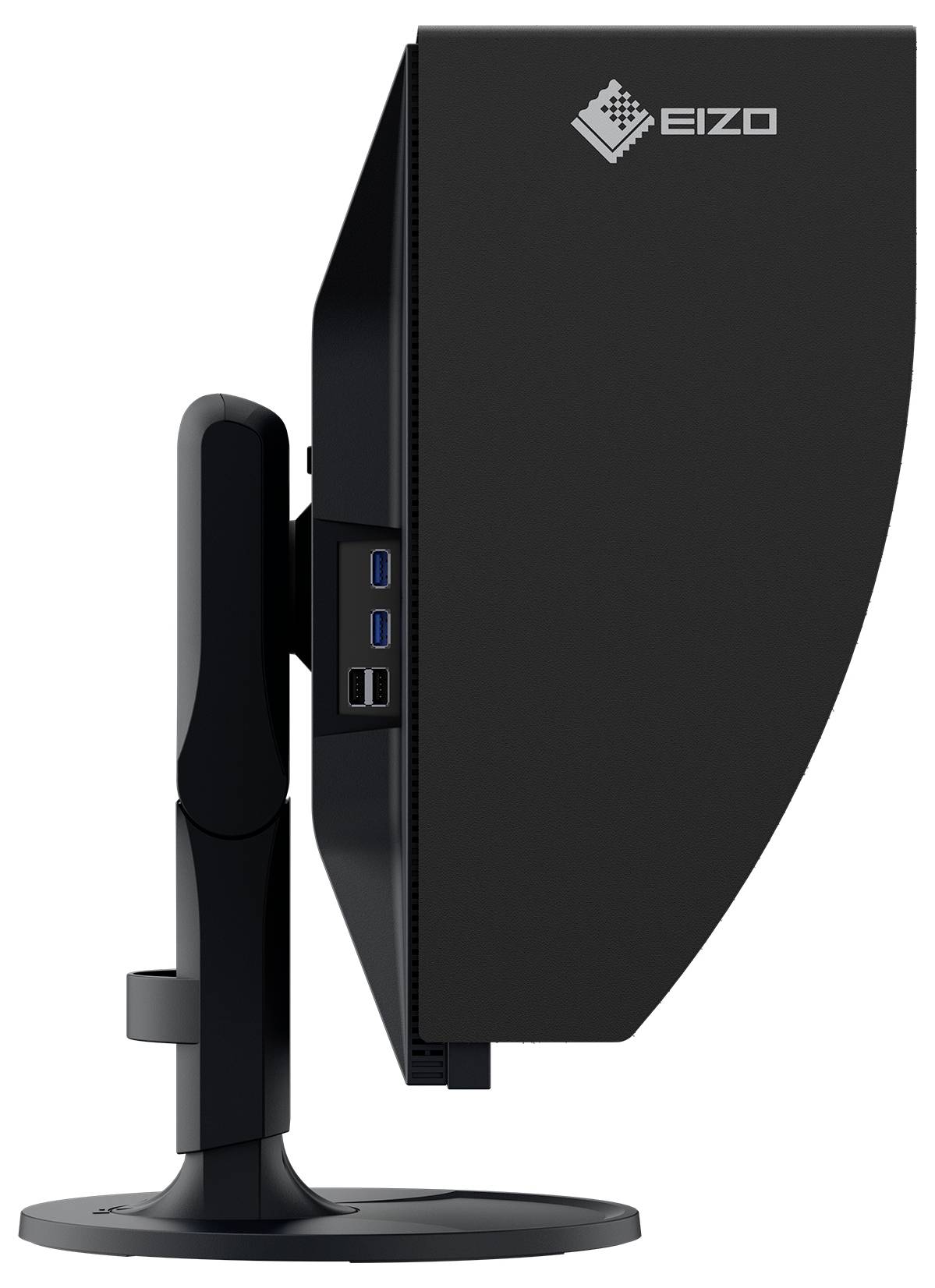

Side view of an EIZO computer monitor on a stand, showing the rear panel and built-in USB ports.

EIZO 24-inch monitor shown in its box, with labels for USB-C docking and Adobe RGB color support.

1/8

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EIZO ColorEdge LCD

Screen size 61.2 cm (24.1 inch) WUXGA, 1920 x 1200 p;Response time: 11 msEnergy efficiency rating (calc): E (A - G)
Interfaces:

Technical specifications

Screen technology: LCD
Contrast ratio 1800:1
0.27 x 0.27 mm pixel distance
Pixel density: 94 ppi
Market positioning: Photo processing
Swivel angle range 0 - 344 °
Tilt angle range -5 - 35°
Energy efficiency rating (HDR): Not available

Product type: LCD

Resolution (max.): 1920 x 1200 p

Screen size diagonal (cm): 61 cm

Screen size diagonal (inches): 24.1 inch

Screen size diagonal (inches): 24 inch

Image format: 16:10

Panel technology: IPS LCD

Touchscreen (display): No

Frame rate: 60 Hz

Response time: 11 ms

Brightness: 400 cd/m²

Static contrast ratio: 1800 : 1

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

Inclination: -5/+35

Adjustable height: 155 mm

Power consumption (standby): 0.5 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Curved monitor: No

HDR support: Yes

Width: 554.4 mm

Height: 408.1 mm

Depth: 245 mm

Weight: 8.5 kg

Power supply (details): 100 - 240 V

Dim: (W x H x D) 554.4 x 408.1 x 245 mm

Screen size/position settings: Height
Tilt
Pivoting (rotation)
Pivoting

Display size: 24 inch - 29 inch

Display type: 16:10

Display resolution mode: WUXGA

Wall mounting option: 100 x 100 mm VESA standard

: E (A - G)

Display: 61.2 cm (24.1 inch)

Screen resolution: WUXGA (1920 x 1200 Pixel)

Display (cm): 61.2 cm

Power consumption (off): 0.3 W

Power consumption (ON): 17 W

Device depth (without stand): 70.2 mm

Display properties: IPS

Display resolution: 1920 x 1200 Pixel

HDCP: Yes

Charging method (Power Delivery): with USB Power Delivery

Height (without base): 374.1 mm

Type: internal

: 100 x 100 mm

UKCA: yes

Anti-glare screen: yes

Stand included: yes

Operating temperature (T-T): 0 - 35 °C

Weight (without stand): 5.5 kg

Width (without stand): 554.4 mm

Cable lock slot: yes

Storage relative humidity (H-H): 10 - 90 %

Colour depth: 10 Bit

VESA mounting: yes

Height adjustment: yes

NVIDIA G-SYNC: no

Built-in USB hub: yes

Number of upstream ports: 2

USB Type-A downstream ports quantity: 4

Built-in speaker(s): no

Adjustable height (max): 15.5 cm

Pivot: yes

Digital horizontal frequency: 15 - 76 kHz

Digital vertical frequency: 23 - 61 Hz

sRGB coverage (typical): 100 %

Adobe RGB coverage: 99 %

AMD FreeSync: no

On Screen Display (OSD): yes

USB Type-C DisplayPort Alternate Mode: yes

Flicker-free technology: yes

USB Power Delivery up to: 70 W

Sun hood included: yes

Quick start guide: yes

DCI-P3 coverage: 99 %

Number of USB Type-C upstream ports quantity: 1

Number of USB Type-B upstream ports quantity: 1

Energy consumption (SDR) per 1000 hours: 16 kWh

Hardware calibration: yes

Built-in calibration sensor: yes

: 16

HDMI: yes

LED backlight: yes

Operating relative humidity (H-H): 20 - 80 %

Swivelling: yes

Storage temperature (T-T): -20 - 60 °C

Pivot angle: -90 - 90°

Built-in camera: no

Tilt adjustment: yes

Power consumption (max): 150 W

Viewable size, vertical: 51.8 cm

Built-in KVM switch: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3765866 EIZO ColorEdge LCD EEC E (A - G) 61.2 cm (24.1 inch) 1920 x 1200 p 16:10 11 ms IPS LCD

Description

With its large color space, enormous contrast ratio of 1800:1, latest USB-C connectivity and pre-installed HDR presets the CG2400S is the ideal tool for professional creative people. The CG2400S with wide-gamut IPS panel, 10-bit color depth and 16-bit 3D-look-up table (LUT) offers perfect precision, soft color transitions and nuances. The Adobe RGB color space is 99% covered and the DCI-P3 color space is 98% covered. With presets for HLG and PQ gamma curves, the smallest model of the ColorEdge CG Ideal series can be integrated into HDR production workflow. The integrated calibration sensor allows effortless automatic calibration. Due to the universal connectivity via USB-C the image signal is transferred with only a single cable and also fed by the USB hub of the monitor. In addition, a mobile device can be supplied with up to 70 watt charging current. In combination with the integrated USB hub, the CG2400S becomes the central dock of the creative workflow with one hand. Of course, a HDMI and a DisplayPort connectors are also on board. The supplied light cover completes the lavish equipment of the CG2400S.

This text is machine translated.

Features

24" wide-gamut LCD with 1920 x 1200 pixels, 16:10 format
Wide color gamut with 99% Adobe RGB and 98% DCI-P3 color room coverage
400 cd/m² maximum brightness, 1800:1 contrast
10-bit display, 16-bit 3D look-up table
Integrated calibration sensor for fully automatic self-calibration
Digital Uniformity equalizer for perfect light density distribution and color purity
USB-C (DisplayPort signal and up to 70 watt Power delivery), DisplayPort and HDMI input
USB hub with four USB downstream ports, two 5 Gbps (USB 3) and two USB 2
Light protection hood included in the delivery
