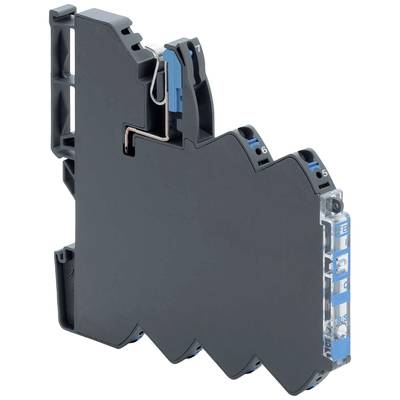

Electric load monitor Lütze LOCC-Box-FB 7-6401 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electric load monitor
Type
LOCC-Box-FB 7-6401
Amperage adjustment range (min.)
1 A
Amperage adjustment range (max.)
10 A
Adjustment range (amperage)
1 - 10 A
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electric load monitor
- Type
LOCC-Box-FB 7-6401
- Amperage adjustment range (min.)
1 A
- Amperage adjustment range (max.)
10 A
- Adjustment range (amperage)
1 - 10 A
- Connection
Push-in connector
IP20
- Min. temperature
-25 °C
- Max. temperature
+50 °C
- Width
8.10 mm
- Height
107.40 mm
- Depth
116 mm
- Dim
(W x H x D) 8.10 x 107.40 x 116 mm
- Content
1 pc(s)
- Weight
70 g
- AWG max.
14
- AWG (min.)
24
- Factory colour
Basalt grey
- Nominal voltage
12 V DC
24 V DC
- Nominal current
10 A
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
Documents & Downloads
Datasheet
Datasheet 3124468 Electric load monitor Lütze LOCC-Box-FB 7-6401 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3124468 Electric load monitor Lütze LOCC-Box-FB 7-6401 1 pc(s)
Description
Load monitoring, LOCC-BOX-FB, Electronic load monitoring up to DC 10 A, single channel design, adjustable current range: DC 1 A – 10 A, adjustable characteristics: Fast-blow, medium-blow, slow-blow 1, -2, -3
