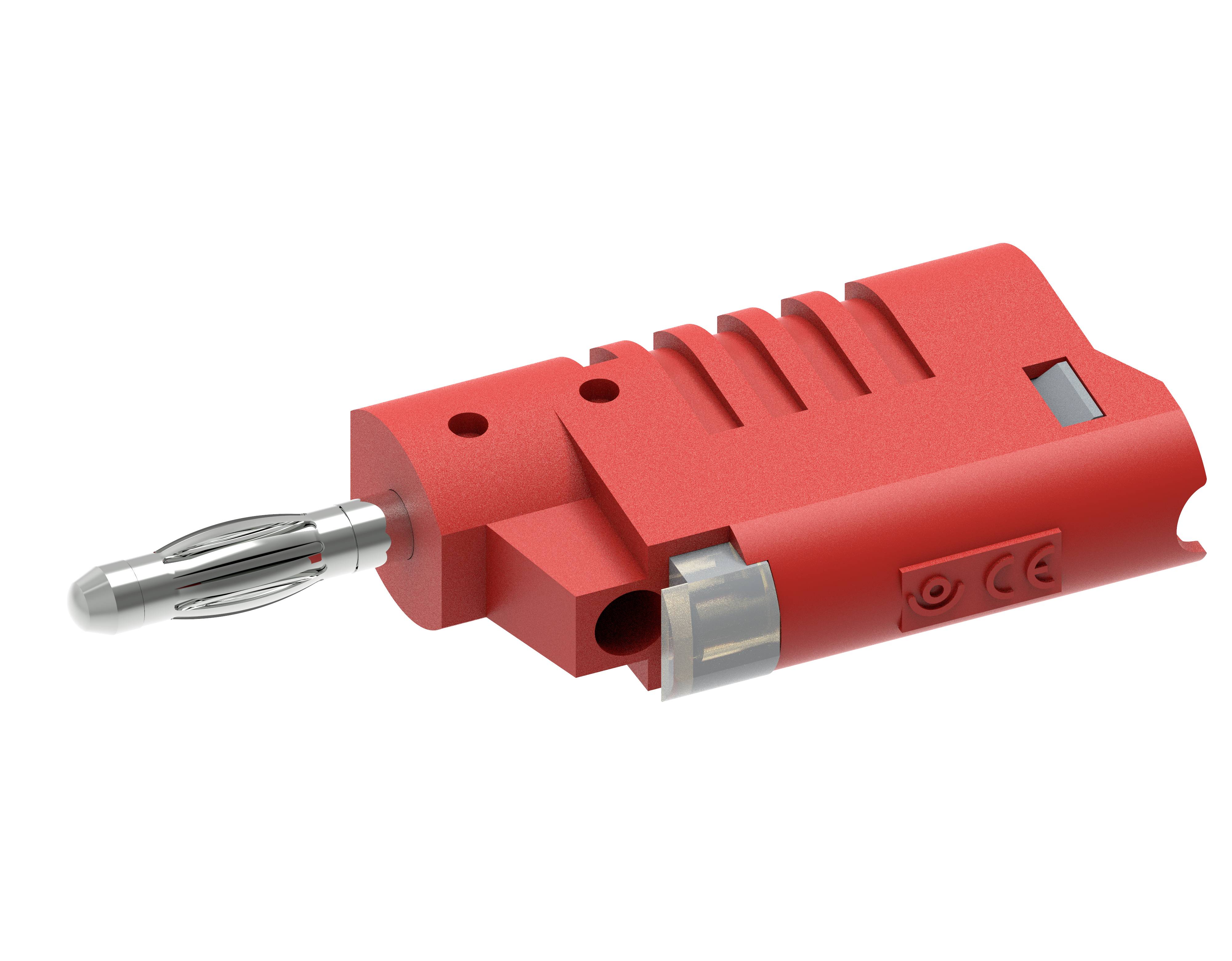

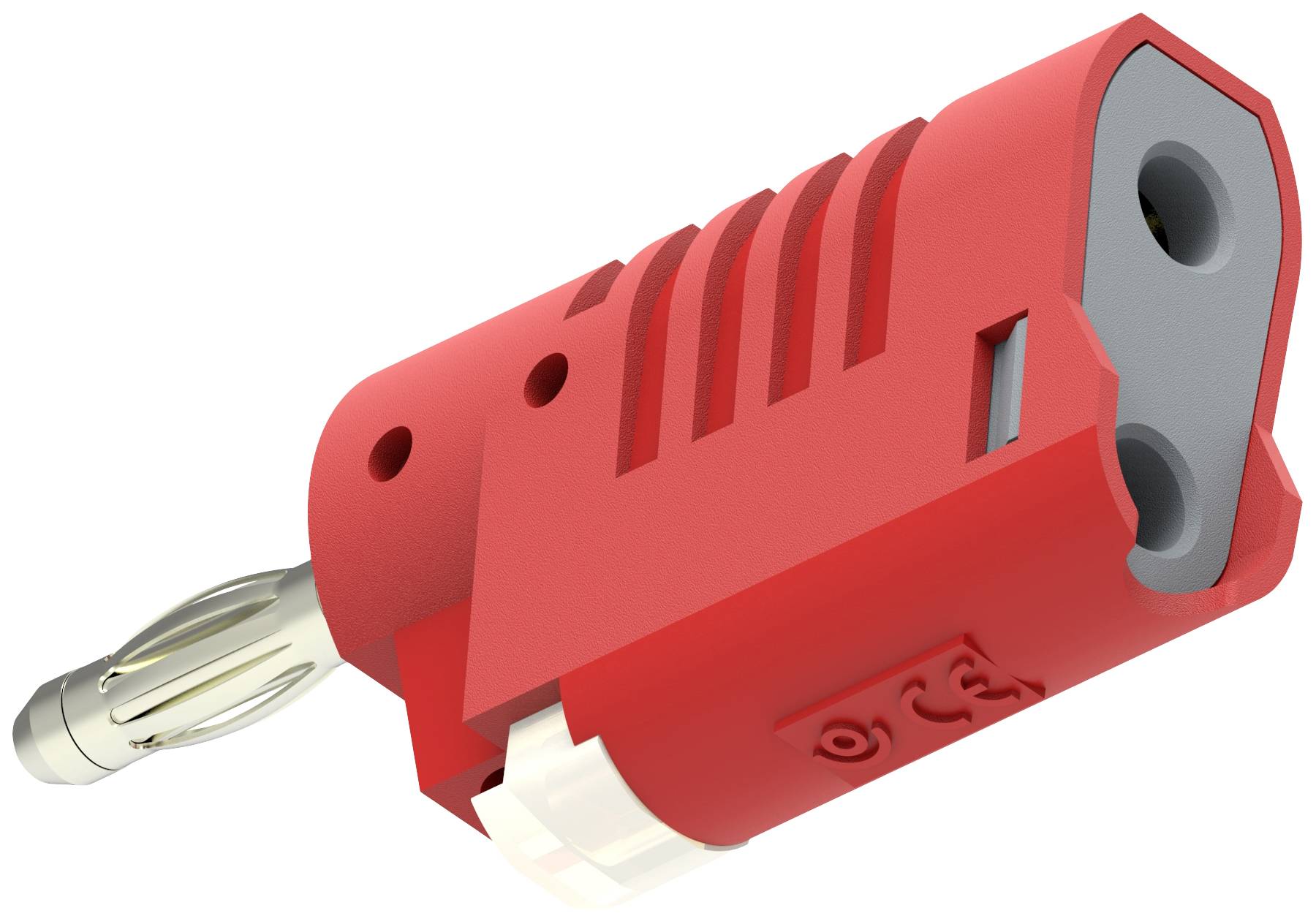

Electro PJP 1087-CD1-R Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Jack plug
Connector type
Plug, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.75 mm²
Datasheet (PDF)
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
Ø4mm plug-in banana plug, quick connection, red
- 36 A Red
Technical specifications
- Packaging type
Piece
- Product type
Jack plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
36 A
- Cross section (flexible) (min.)
0.75 mm²
- Nominal current - rounded value
36 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Banana plug
- Factory colour
Red
- Manufacturer part #
1087-CD1-R
- Type
1087-CD1-R
- Dim
(Ø) 4 mm
- Content
1 pc(s)
- Contact material
Brass nickel plated
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2751976 Electro PJP 1087-CD1-R Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2751976 Electro PJP 1087-CD1-R Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Piece
Description
Dies presss-fit terminal sowohl für Kabel auf 2.5 mm².
This text is machine translated.
This text is machine translated.
Features
- Ø4 mm banana connectionQuick-connect≤30V AC ≤60V DC36 A.Contact parts Ni-coated brass
