Electro PJP 406-EVSE-CD1-V Test tip 406-EVSE-CD1-V CAT II 1000 V, CAT III 1000 V, CAT IV 600 V Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Highlights & Details
Probe tip for EVSE type 2 and CCS with Ø4mm safety banana connections, green
- CAT II 1000 V, CAT III 1000 V, CAT IV 600 V
- Socket Ø Green
Technical specifications
- Product type
Test tip
- Factory colour
Green
- Reading category
CAT II 1000 V
CAT III 1000 V
CAT IV 600 V
- Max. length
120 mm
Documents & Downloads
Datasheet
Datasheet 3415061 Electro PJP 406-EVSE-CD1-V Test tip 406-EVSE-CD1-V CAT II 1000 V, CAT III 1000 V, CAT IV 600 V Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3415061 Electro PJP 406-EVSE-CD1-V Test tip 406-EVSE-CD1-V CAT II 1000 V, CAT III 1000 V, CAT IV 600 V Green 1 pc(s)
Description
Applications: For measuring and testing the earth loop resistance and earth resistance of EVSEs of type 2 and CCS.

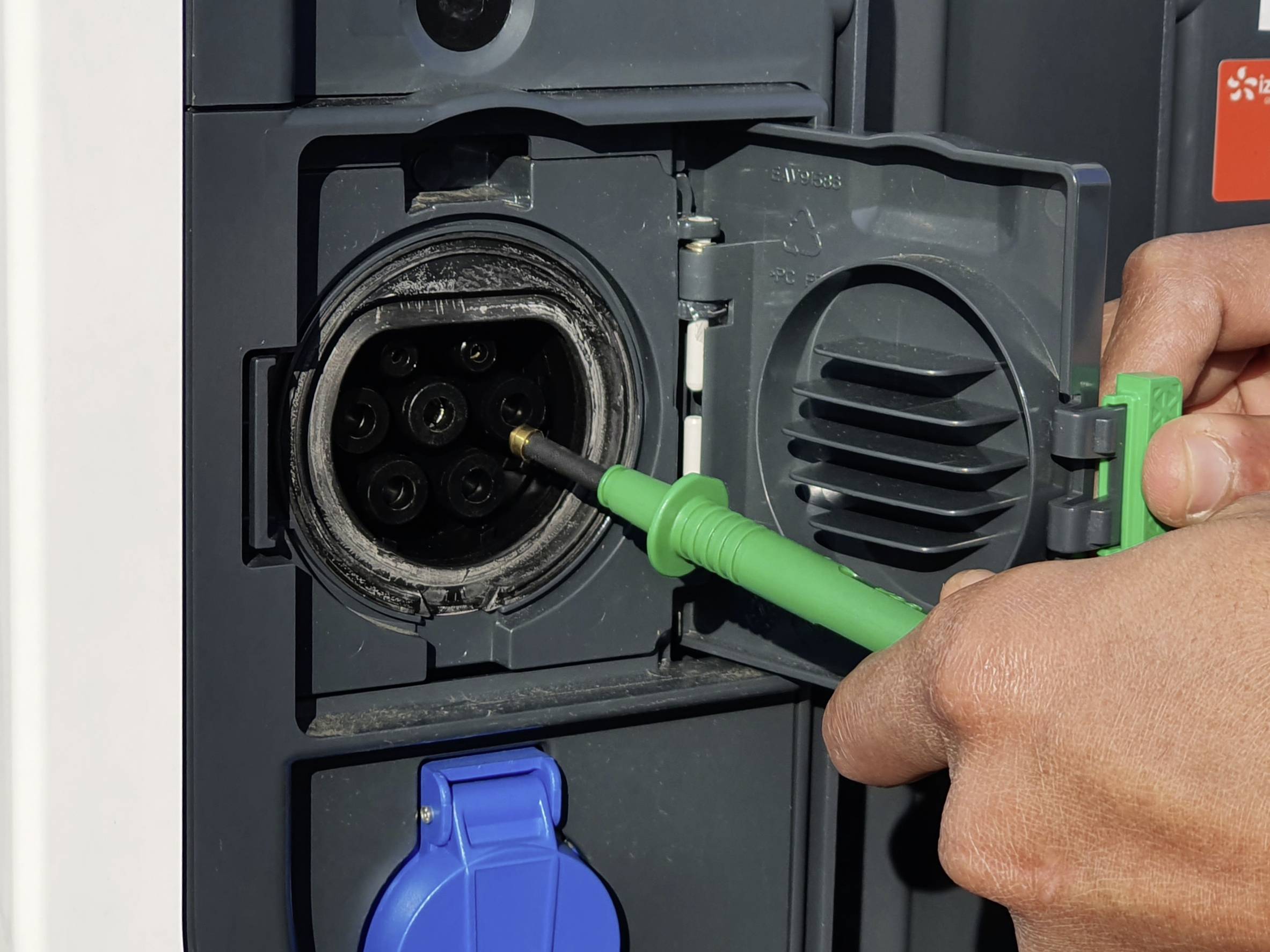

The test prod corresponds to the standard EN IEC 62196 2. When the probe is plugged into the ground jack, it provides reliable and low electrical resistance without damaging the EVSE ground jack.

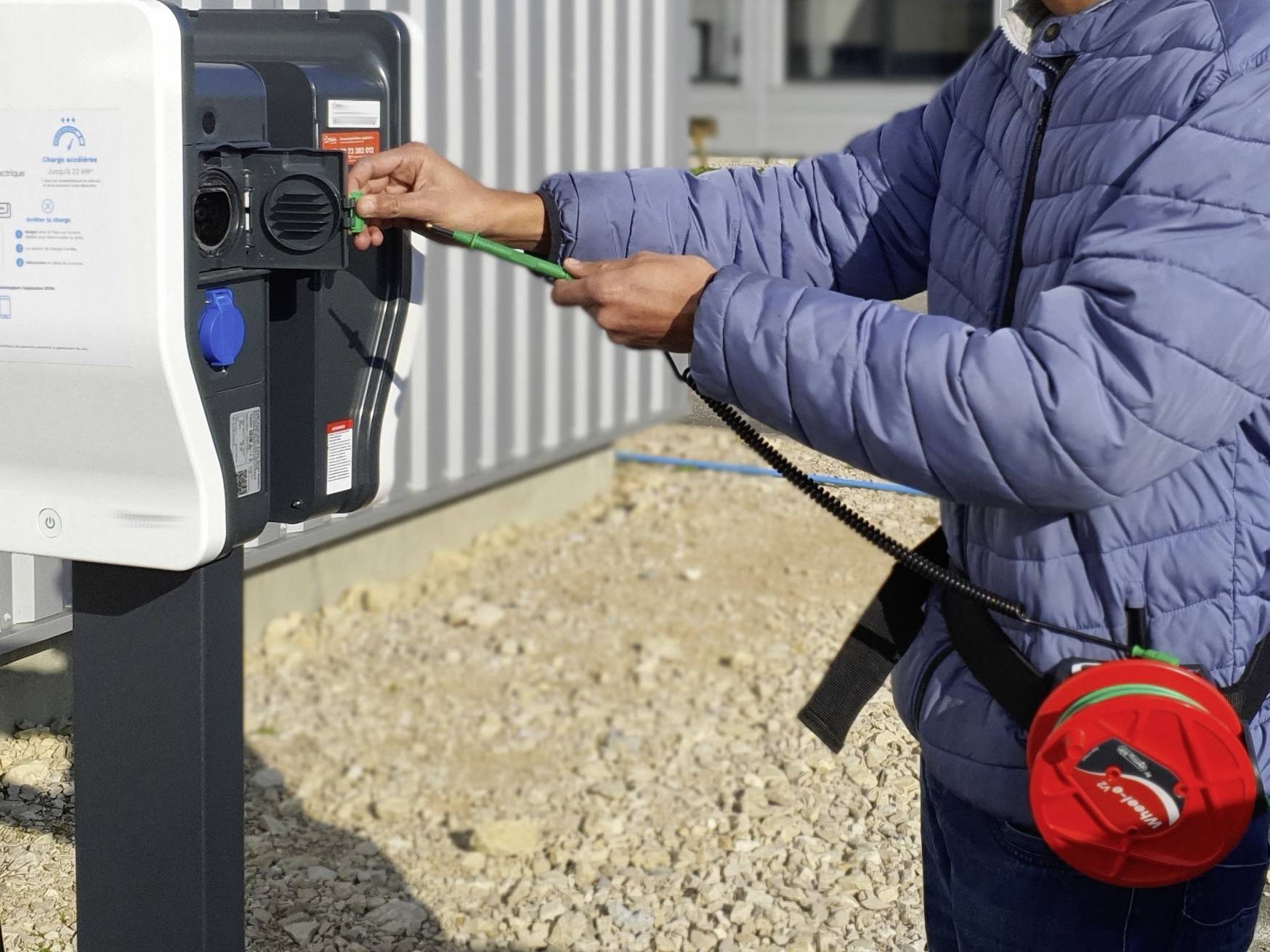

The 406-EVSE test probe can be used, for example, to measure the protective earth resistance of the EVSE earthing socket. However, it can also be used to measure the insulation resistance on type 2 EVSE jacks between the central earthing socket and the neutral and phase jacks.
This text is machine translated.
The test prod corresponds to the standard EN IEC 62196 2. When the probe is plugged into the ground jack, it provides reliable and low electrical resistance without damaging the EVSE ground jack.
The 406-EVSE test probe can be used, for example, to measure the protective earth resistance of the EVSE earthing socket. However, it can also be used to measure the insulation resistance on type 2 EVSE jacks between the central earthing socket and the neutral and phase jacks.
