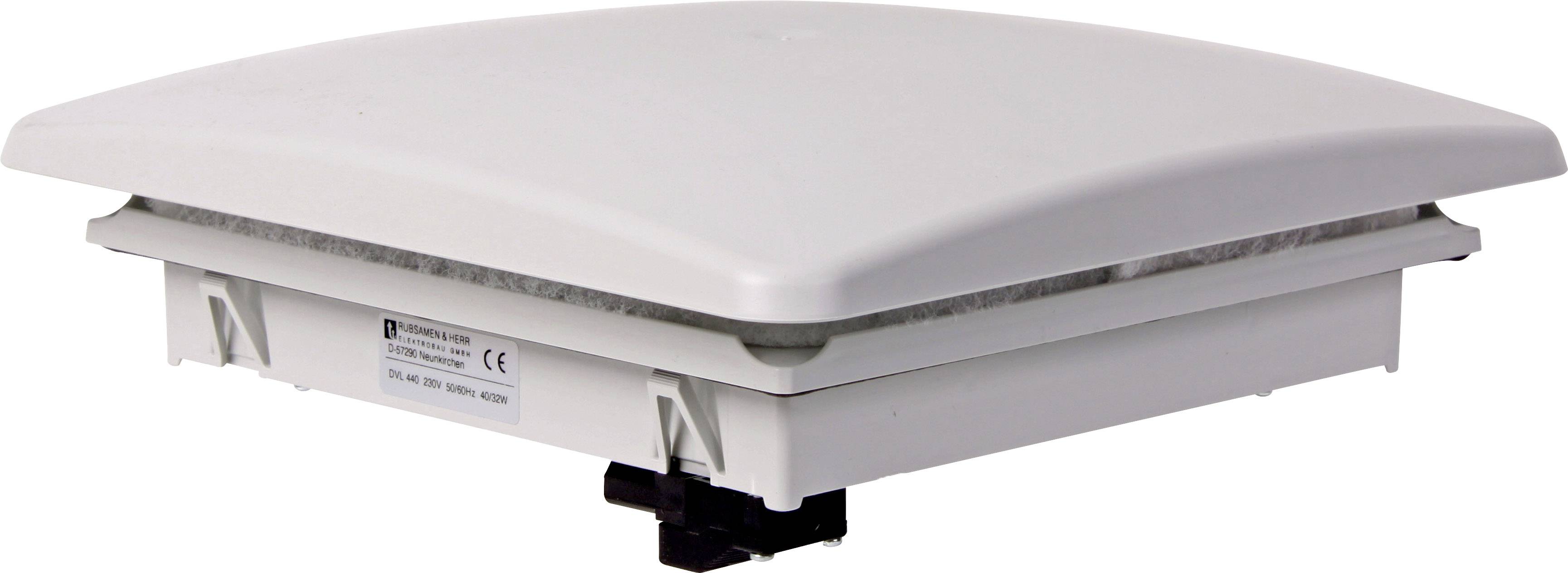

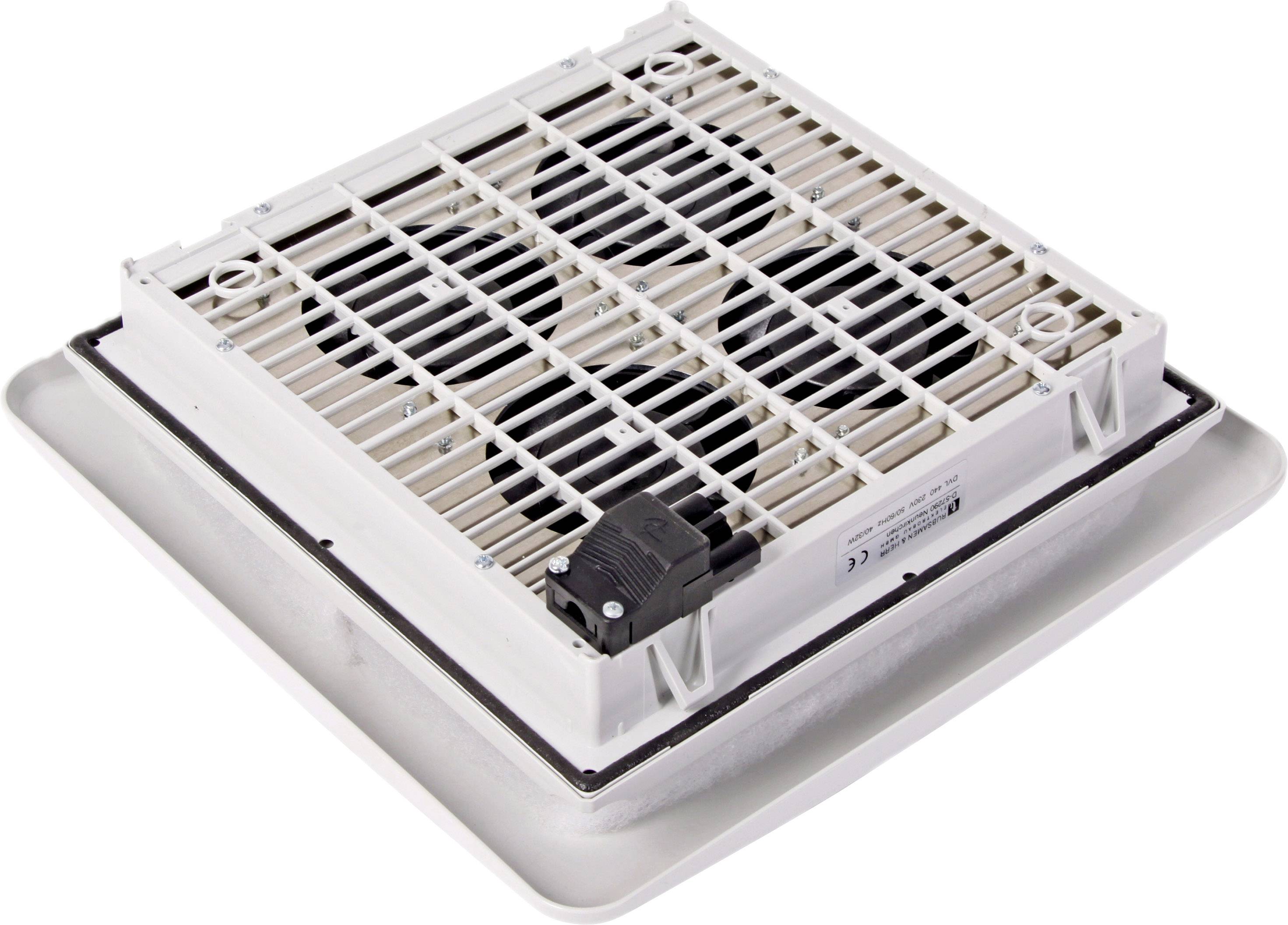

Elmeko DVL 440 Top fan 230 V AC 40 W (W x H x D) 287 x 104 x 287 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Top fan
Operating voltage
230 V AC
Power
40 W
Rotational speed
3200 U/min
Width
287 mm
Datasheet (PDF)
Technical specifications
- Colors RAL 7035
- Air flow quantity of filter mat: P15/350S
- Air flow rate with outlet filter: 55 m³/h.
- Air flow rate with outlet filter 2 x GV 400/500: 63 m³/h.
- Connection: GST plug connection
- Mounting cut-out 223 mm x 223 mm
- Product type
Top fan
- Type
DVL 440
- Operating voltage
230 V AC
- Max. current consumption
0.26 A
40 W
- Rotational speed
3200 U/min
- Air flow rate
71 m³/h
- Factory colour
Light grey
37500 h
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP54
- Connection
Screw terminal
- Width
287 mm
- Height
104 mm
- Depth
287 mm
- Dim
(W x H x D) 287 x 104 x 287 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2267349 Elmeko DVL 440 Top fan 230 V AC 40 W (W x H x D) 287 x 104 x 287 mm 1 pc(s)
