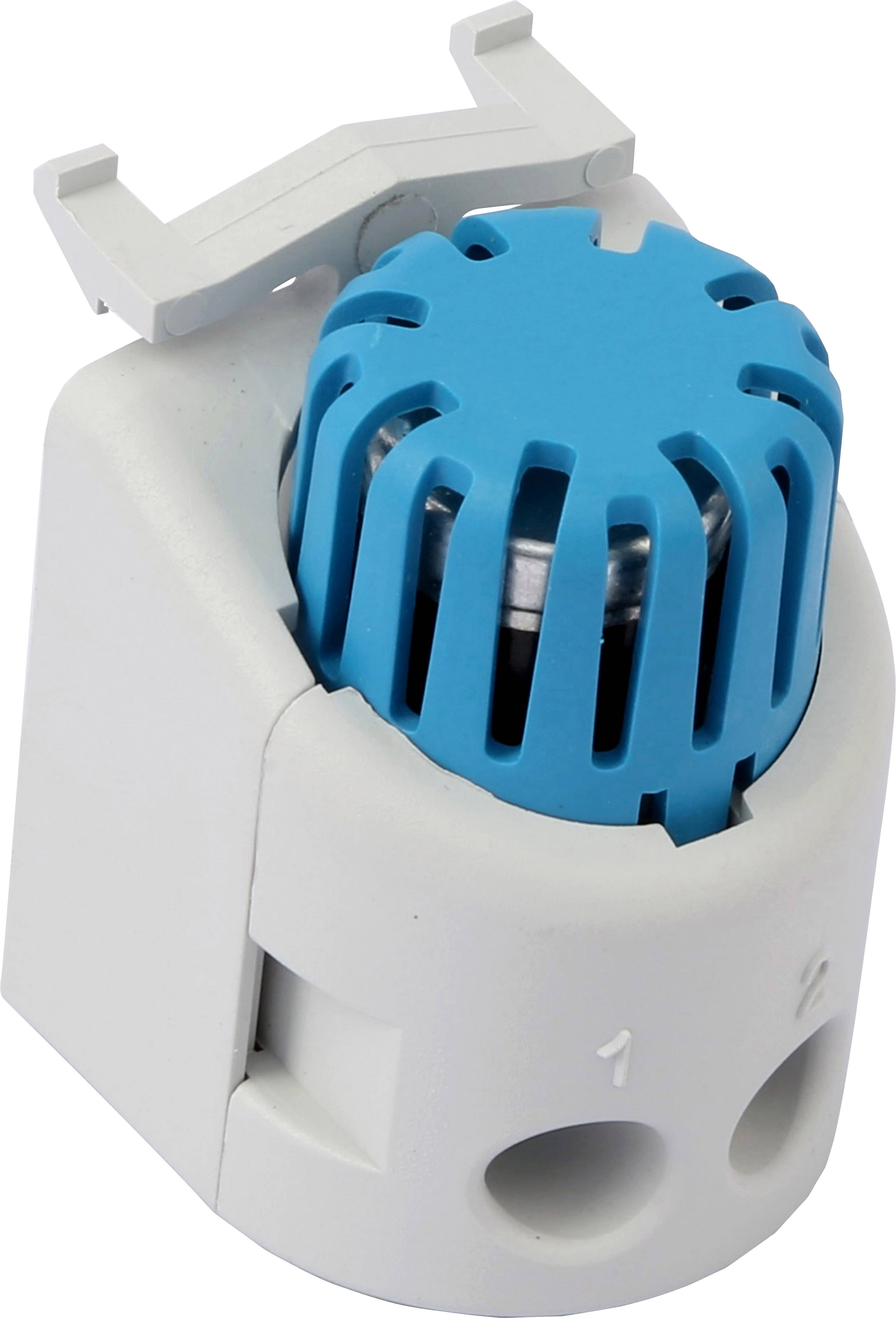

Elmeko Enclosure thermostat TFC 35 1 maker (L x W x H) 35 x 27 x 43 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 maker
Type
TFC 35
Adjustment range (min.) (temperature)
+35 °C
Datasheet (PDF)
Technical specifications
- Switching point: 35 °C
- maximum switching power 120 V/AC: 10 A
- maximum switching power V/DC: 30 W
- Life:> 100,000 switching cycles
- Approval: CE
- colors RAL: RAL 7035
- Housing: PA6, UL94 V0 self-extinguishing, light gray RAL 7035
- Storage temperature: -40 °C - +80 °C
- Hysteresis: 10 K / ±4 K
- Weight: 35 g
- Mounting: Clip for mounting on 35 mm DIN rail
- Product type
Enclosure thermostat
- Type
TFC 35
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
+35 °C
- Temperature adjustment range (max.)
+35 °C
- Factory colour
Light grey
- Sensor type
Bi-metallic
- Contact type
1 maker
- Sweating current (heating) (max.)
5 A
- Length
35 mm
- Width
27 mm
- Height
43 mm
- Dim
(L x W x H) 35 x 27 x 43 mm
IP20
- UKCA
yes
