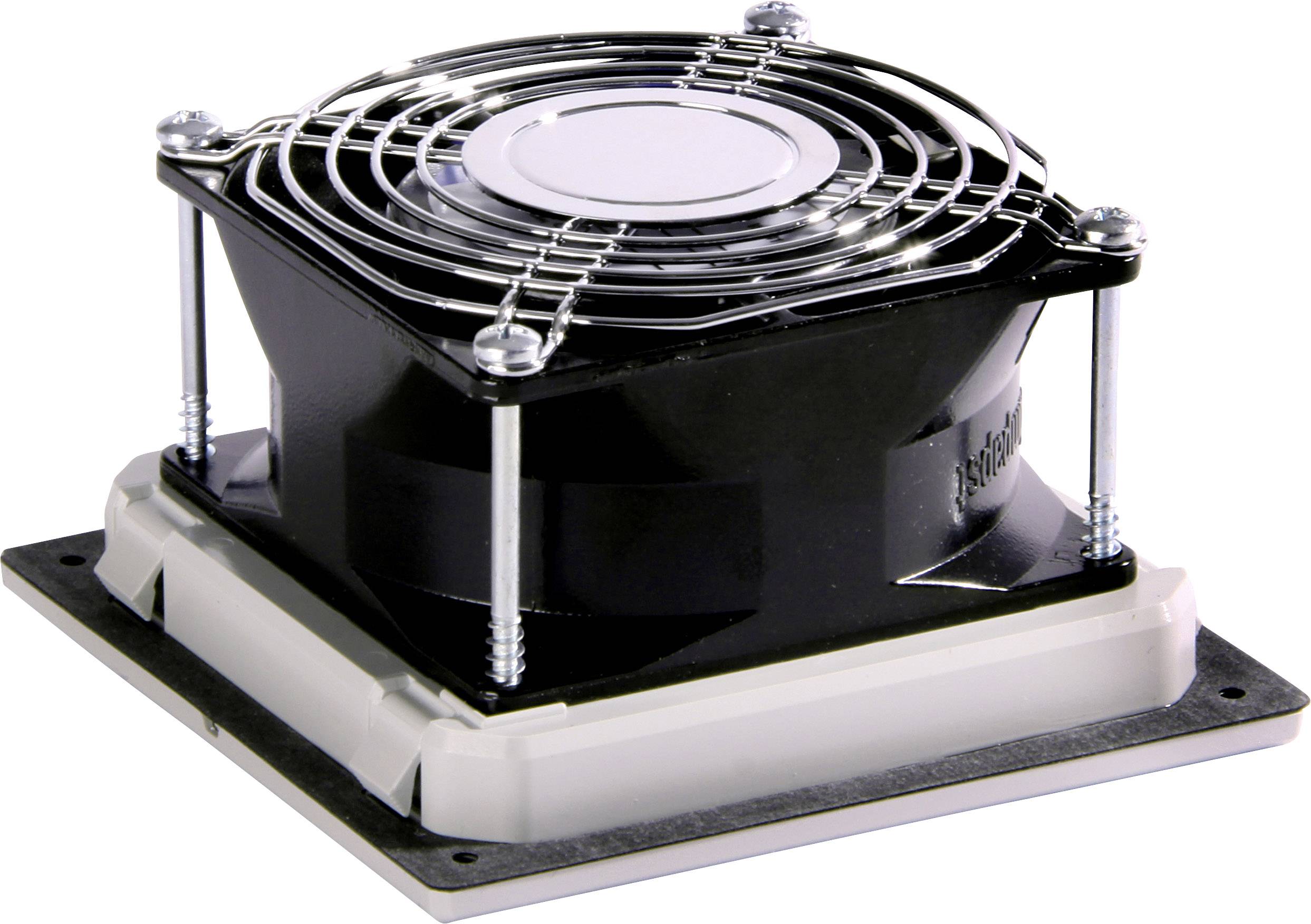

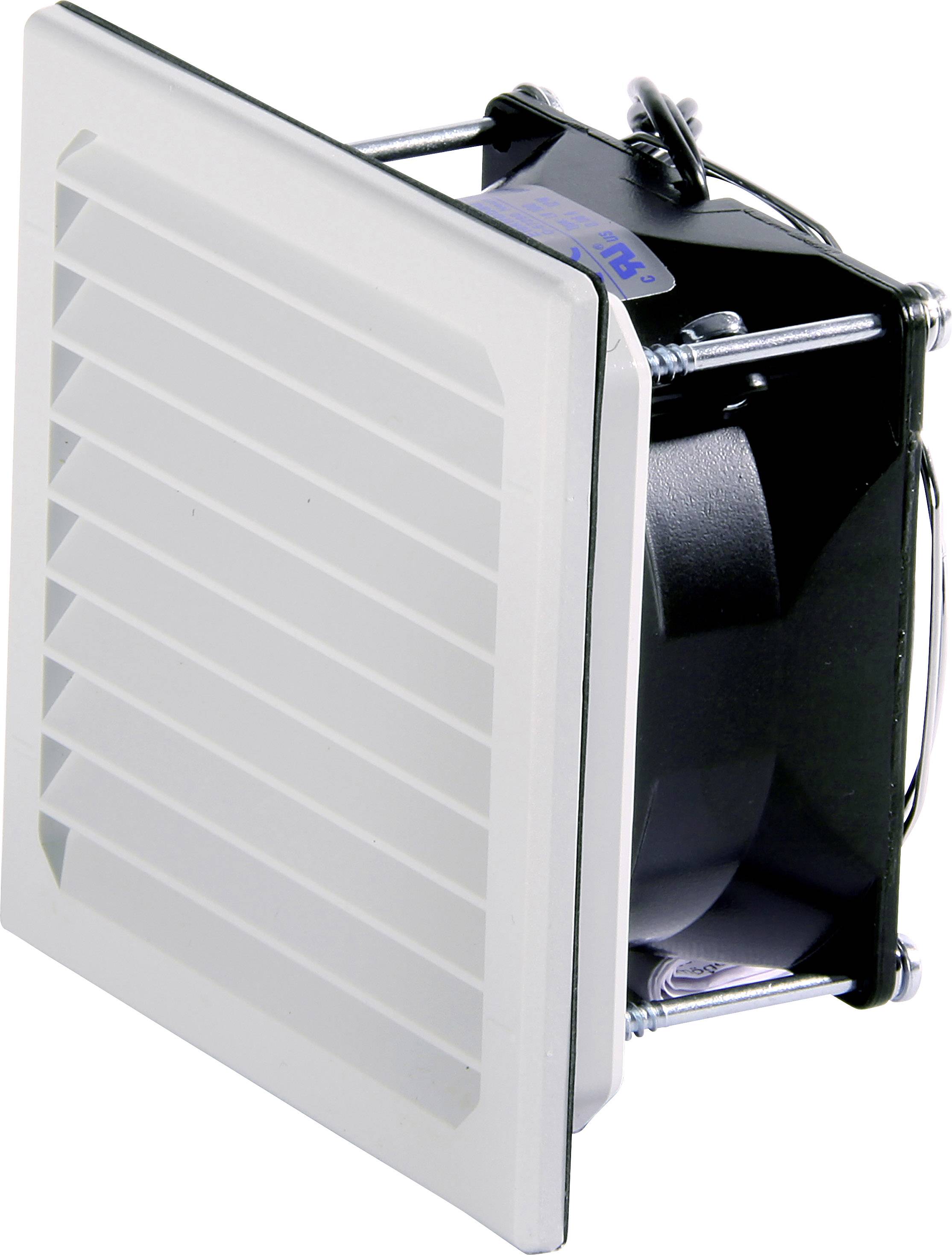

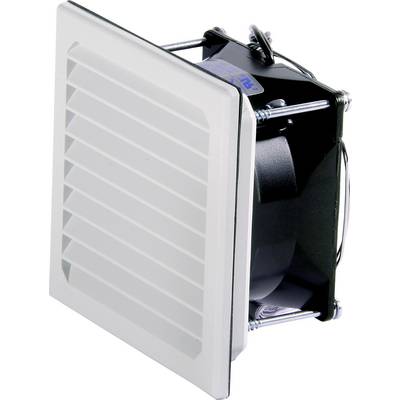

Elmeko LV 100 24V DC Fan and filter 24 V DC 2.2 W (W x H x D) 105 x 105 x 59.5 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
24 V DC
Power
2.2 W
Rotational speed
3300 U/min
Technical specifications
- Sound level 36 dB(A)
- Colors RAL 7035 (standard), RAL 7032, RAL 9011
- Seal: Foamed gasket
- Air quantity of filter mat: G2 60 Hz
- Air flow rate with outlet filter: 17 m³/h.
- Air flow rate with outlet filter 2 x GV 100: 21 m³/h.
- Mounting cut-out 92 mm x 92 mm
- Packaging type
Piece
- Product type
Fan and filter
- Type
LV 100 24V DC
- Features
EMC
- Operating voltage
24 V DC
- Max. current consumption
100 mA
2.2 W
- Rotational speed
3300 U/min
- Noise emission (max.)
36 dBa
- Air flow rate
28 m³/h
- Factory colour
Light grey
70000 h
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP54
- Connection
Screw terminal
- Width
105 mm
- Height
105 mm
- Depth
59.5 mm
- Dim
(W x H x D) 105 x 105 x 59.5 mm
- Content
1 pc(s)
- UKCA
yes
