Elmeko TER 200 Temperature controller NTC -50 up to +99 °C (L x W x H) 75 x 34.5 x 85 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
230 V AC
Max. temperature reading
+99 °C
No. of relay outputs
1
Sensor type
NTC
Datasheet (PDF)
Highlights & Details
- Temperature controller for switching fans, heaters or cooling devices
- For temperature monitoring of server, network and control cabinets
- 1x relay output and 1x alarm output

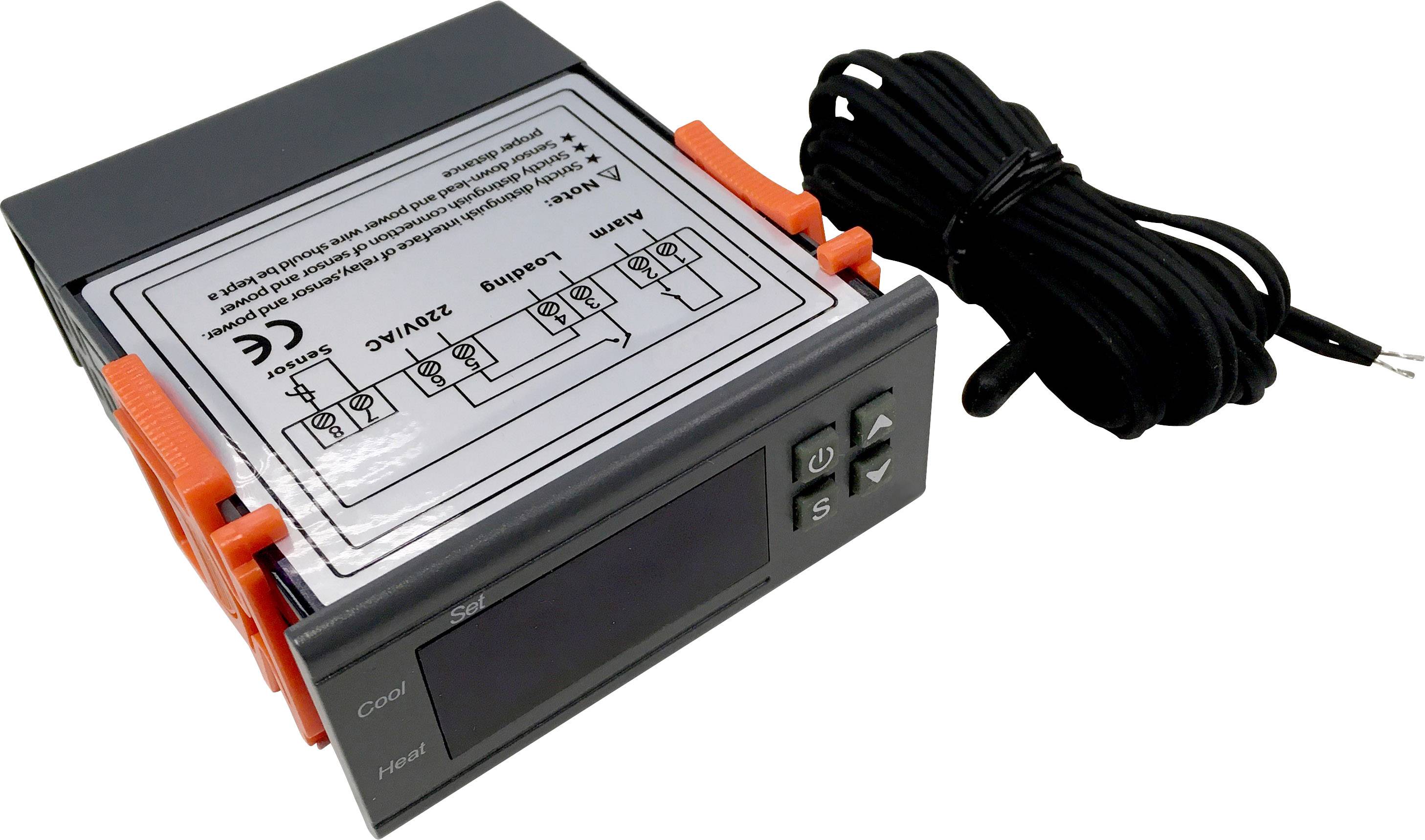

- Temperature sensor with 2 mtr. Connection cable included in the delivery
- Easy programming
- Switchable from °C to °F.
- This text is machine translated.
Technical specifications

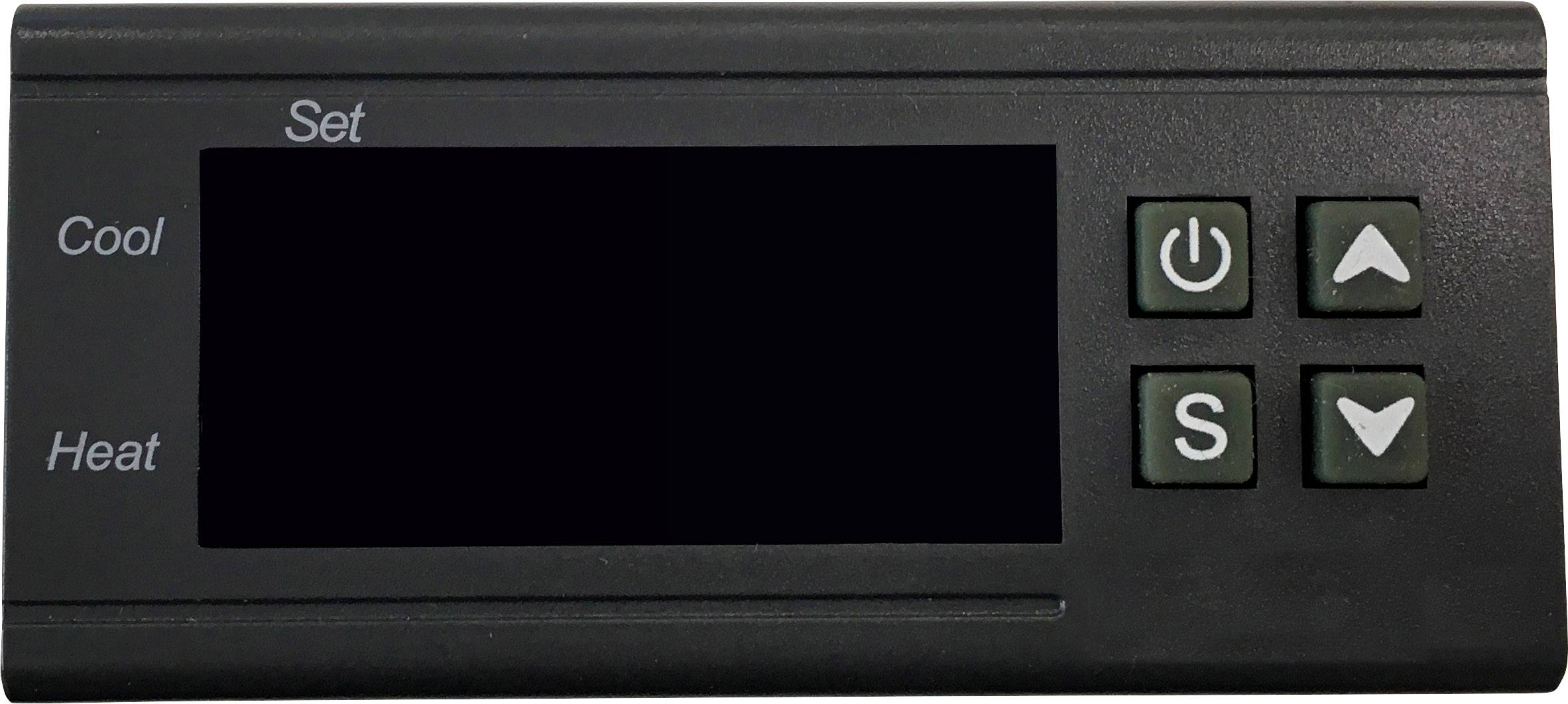

- Display: Three-digit 7-segment display
- Resolution: 0.1 °C
- Measurement accuracy ±1 °C.
- Hysteresis: Adjustable 0.5 K … 15 K
- Relay output:
- Cooling / heating (10 A / 230 V AC)
- Cooling / heating (10 A / 230 V AC)
- Alarm output: Potential-free
- ELMEKO
- Product type
Temperature controller
- Type
TER 200
- Operating voltage
230 V AC
- Reading range
-50 up to +99 °C
- Max. temperature reading
+99 °C
- Min. temperature reading
-50 °C
- No. of analogue inputs
1
- No. of relay outputs
1
- Outputs
2
- Dim
(L x W x H) 75 x 34.5 x 85 mm
- Factory colour
Grey
- Height
85 mm
- Length
75 mm
- Width
34.5 mm
- Sensor type
NTC
- Manufacturer part #
15 TER 200
- Mounting type
Enclosure
- Assembly dimensions
71 x 29 mm
- Sensor type
NTC sensor, 2 m long
- Weight
0.30 kg
- UKCA
yes
