Buy elo Touch Solution 1004L Touchscreen EEC: D (A - G) 25.7 cm (10.1 inch) 1280 x 800 p 16:10 30 ms

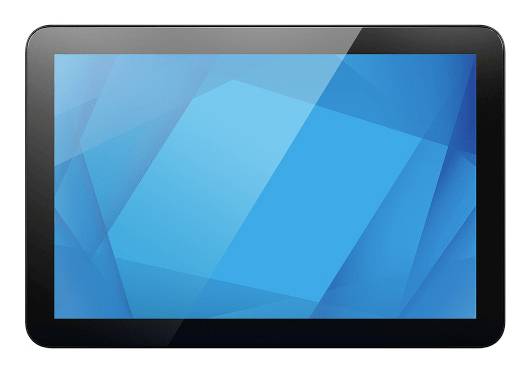

A black tablet with a blue abstract geometric screen displayed on it.

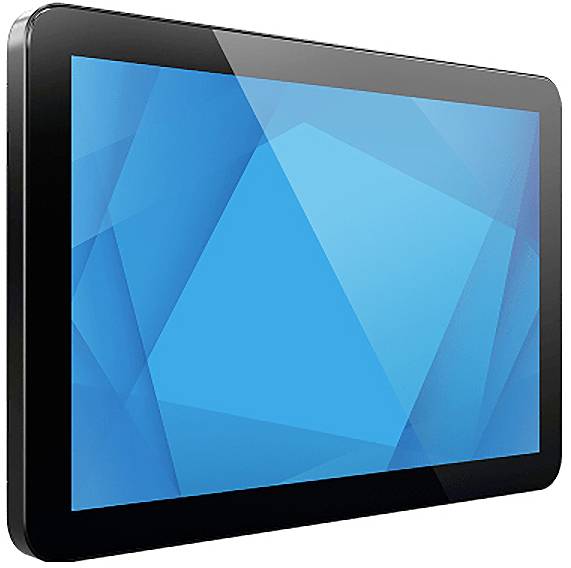

Black tablet device shown at an angle with a blue geometric screen on a white background.

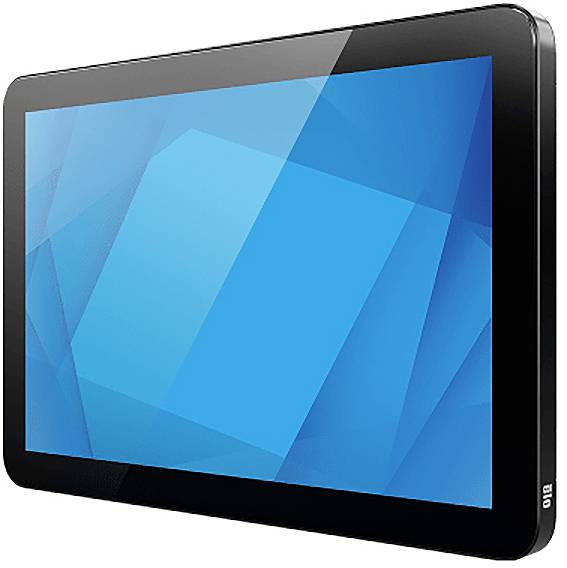

Black B10 tablet device shown at an angle with a blue abstract screen display.

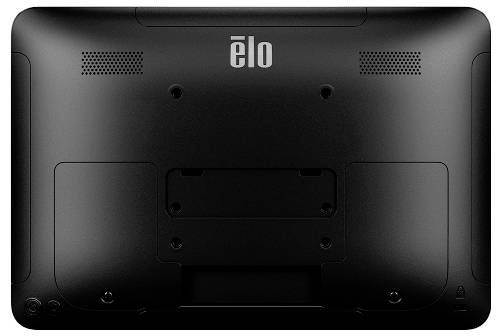

Back view of an Elo touchscreen monitor with mounting plate, vents, and cable/port cover.<br>

1/5

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Elo Touch Solutions 1004L digital signage flat-screen 25.6 cm (10.1") LED 360 CD/m² WXGA black touchscreen

Highlights & Details

Screen size 25.7 cm (10.1 inch)
Energy efficiency rating (calc): D (A - G)
Interfaces: Response time: 30 ms;Built-in speakers

Technical specifications

Panel type TFT LCD
Screen technology: LED
Contrast ratio 800:1
USB-plug: Micro-USB, USB type-C
Display weight 900 g

Product type: Touchscreen

Image format: 16:10

Response time: 30 ms

Brightness: 360 cd/m²

Hor. viewing angle: 170°

Vertical viewing angle: 170°

Factory colour: Black

Features: Built-in speakers

No. of HDMI ports: 1 x

Width: 249 mm

Display size: - 23 inch

: D (A - G)

Display: 25.7 cm (10.1 inch)

Audio power (max.): 4 W

Touchscreen (display): Yes

Resolution (max.): 1280 x 800 p

Display (cm): 25.7 cm

Screen size diagonal (cm): 26 cm

Screen size diagonal (inches): 10.1 inch

Power consumption (off): 0.25 W

Power consumption (ON): 6.5 W

Device depth (without stand): 168 mm

Display resolution: 1280 x 800 Pixel

Frame rate: 60 Hz

: IP54

Display resolution mode: WXGA

Charging method (Power Delivery): with USB Power Delivery

Height (without base): 25 mm

: 75 x 75 mm

UKCA: yes

Multi-touch: yes

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 10

Ethernet LAN: no

Storage relative humidity (H-H): 10 - 95 %

Active display area (W x H): 216,96 x 135,6 mm

VESA mounting: yes

Number of built-in speakers: 2

DC-in jack: yes

DVI port: no

USB port: yes

Built-in speaker(s): yes

On Screen Display (OSD): yes

Horizontal scan range: 30 - 80 kHz

Number of displays: 1

USB Power Delivery up to: 18 W

Energy consumption (SDR) per 1000 hours: 7 kWh

Power consumption (sleep): 1 W

Mean time between failures (MTBF): 50000 h

Operating relative humidity (H-H): 20 - 80 %

Storage temperature (T-T): -20 - 60 °C

Number of OSD languages: 8

Package weight: 2.2 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3768232 elo Touch Solution 1004L Touchscreen EEC: D (A - G) 25.7 cm (10.1 inch) 1280 x 800 p 16:10 30 ms

Description

The Elo 1004L is a versatile 10.1-inch LCD monitor with LED backlight that improves the user experience with its clarity and responsive touch technology. With a native resolution of 1280 x 800 and a brightness of 400 cd/m², this monitor provides clear pictures and lively colors. TouchPro Pro Projected Capacitive technology supports 10-point multi-touch for smooth and precise interactions, making Ideal suitable for various applications, including interactive kiosk systems and POS systems. Moreover, the monitor offers excellent viewing angles of +85 / -85 degree, which enable a comfortable visibility from different positions. The anti-glare screen coating minimizes reflections and provides a pleasant viewing experience under different lighting conditions. Connectivity is simple with multiple interface options such as HDMI and USB-C. The Elo 1004L is designed for different environmental conditions and ensures reliability in different environments.

This text is machine translated.
