Buy elo Touch Solution 1790L rev. B Touchscreen EEC: F (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, VGA, DisplayP

Blue background with the text 'elo'. Underneath it says '17" | Touchscreen'.

'elo 17" Touchscreen' on a blue background with radial gradient. Screen surrounded by a black frame.

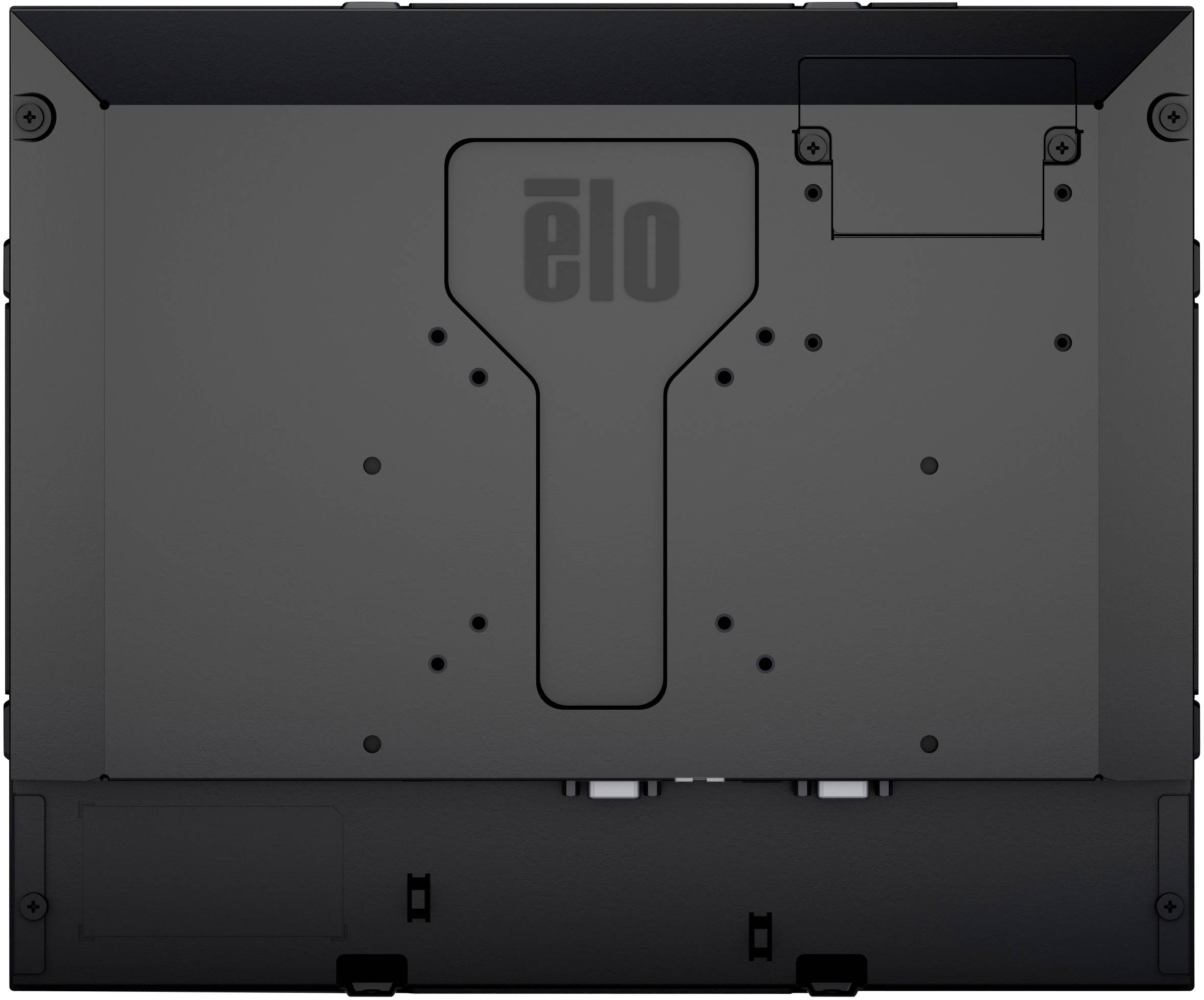

Back of an electronic device with the inscription 'elo', several screw holes, and a removable cover area.

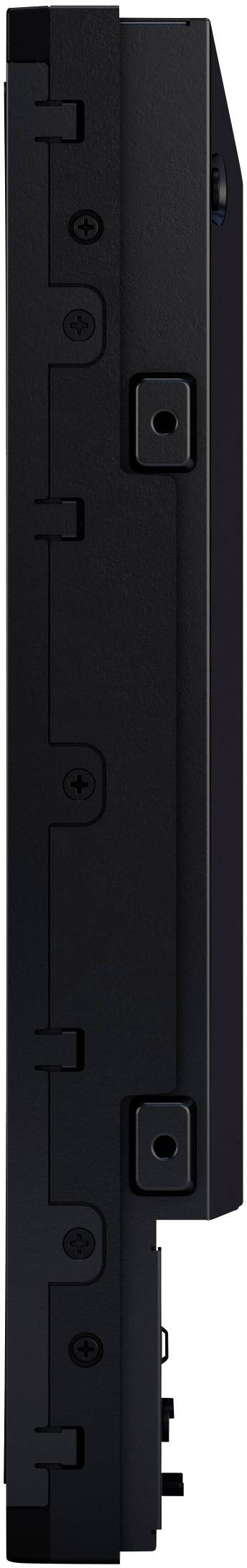

Slender side view of an electronic device with multiple ports and screws, demonstrating its slim design.

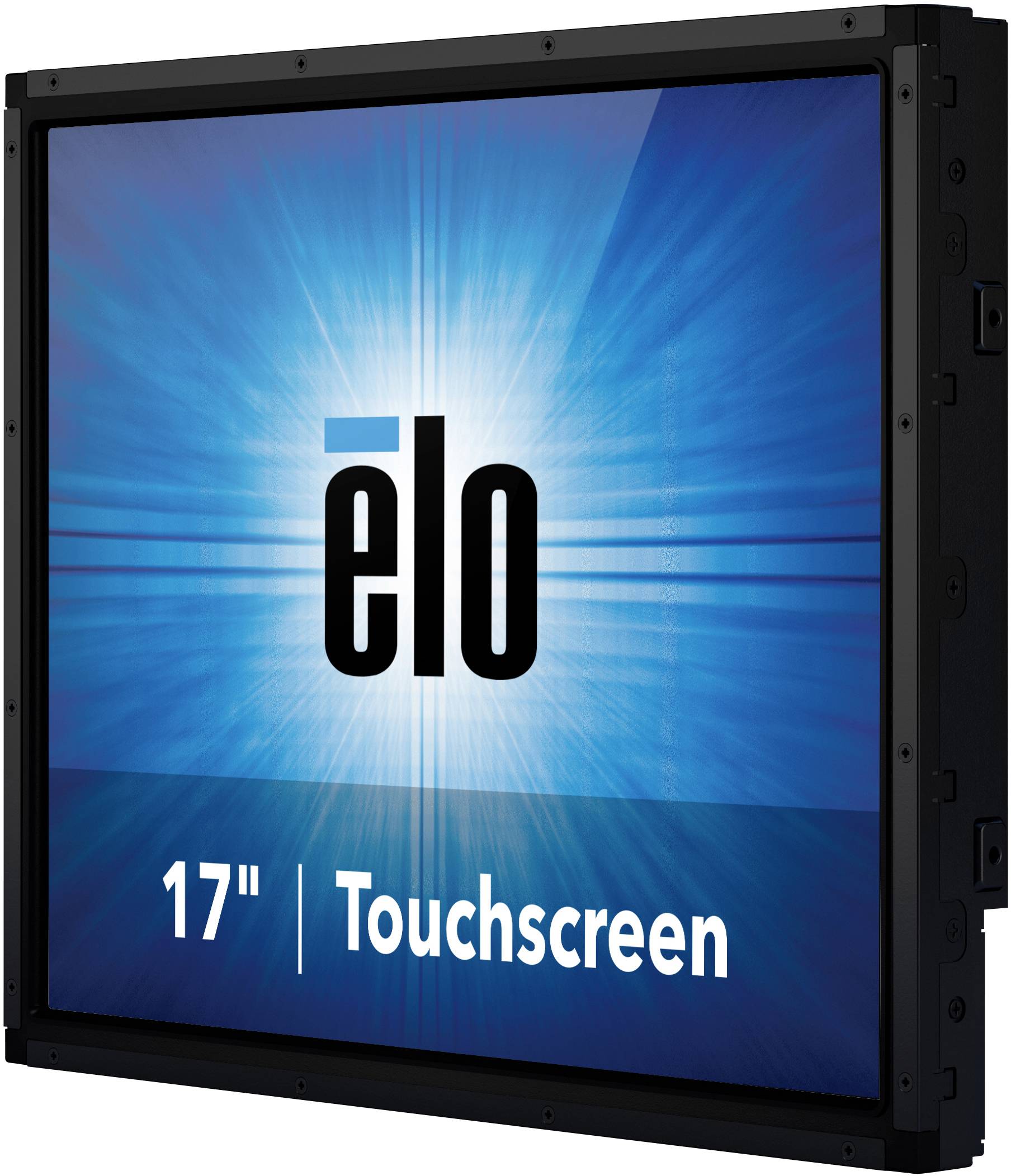

Blue background with the text 'elo'. Below it reads '17" | Touchscreen'.

1/5

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 852.94 / piece)

€ 915.13

-7 %

€ 852.94

plus VAT.

14-day return policy included

Report legal concerns

ELO 1790L rev. B, 43.2cm (17''), IT

Highlights & Details

Screen size 43.2 cm (17 inch)
Energy efficiency rating (calc): F (A - G)
Interfaces: HDMI™, VGA, DisplayPort;Response time: 5 ms

Technical specifications

Product type: Touchscreen

Image format: 5:4

Response time: 5 ms

Static contrast ratio: 1000 : 1

Brightness: 225 cd/m²

Hor. viewing angle: 170°

Vertical viewing angle: 160°

Wall mounting option: 100 x 100 mm VESA standard

Factory colour: Black

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

Interfaces: HDMI™
VGA
DisplayPort

No. of DisplayPort: 1 x

Width: 368.4 mm

Height: 306.4 mm

Depth: 47.5 mm

Dim: (W x H x D) 368.4 x 306.4 x 47.5 mm

Weight: 3.6 kg

Display size: - 23 inch

: F (A - G)

Display: 43.2 cm (17 inch)

Resolution (max.): 1280 x 1024 p

Display (cm): 43.2 cm

Screen size diagonal (cm): 43 cm

Screen size diagonal (inches): 17 inch

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2258363 elo Touch Solution 1790L rev. B Touchscreen EEC: F (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, VGA, DisplayP

Description

Touch monitor (open frame, 5:4), 43.2cm (17"), IntelliTouch, 1280x1024 pixels, 5ms, contrast 800:1, VGA, display port, HDMI, touch interface: USB, RS-232, incl.: Cable (USB, VGA, HDMI)

This text is machine translated.
