elo Touch Solution 2770L Touchscreen EEC: E (A - G) 68.6 cm (27 inch) 1920 x 1080 p 16:9 14 ms
EAN:
Part number:
Item no:
Highlights & Details

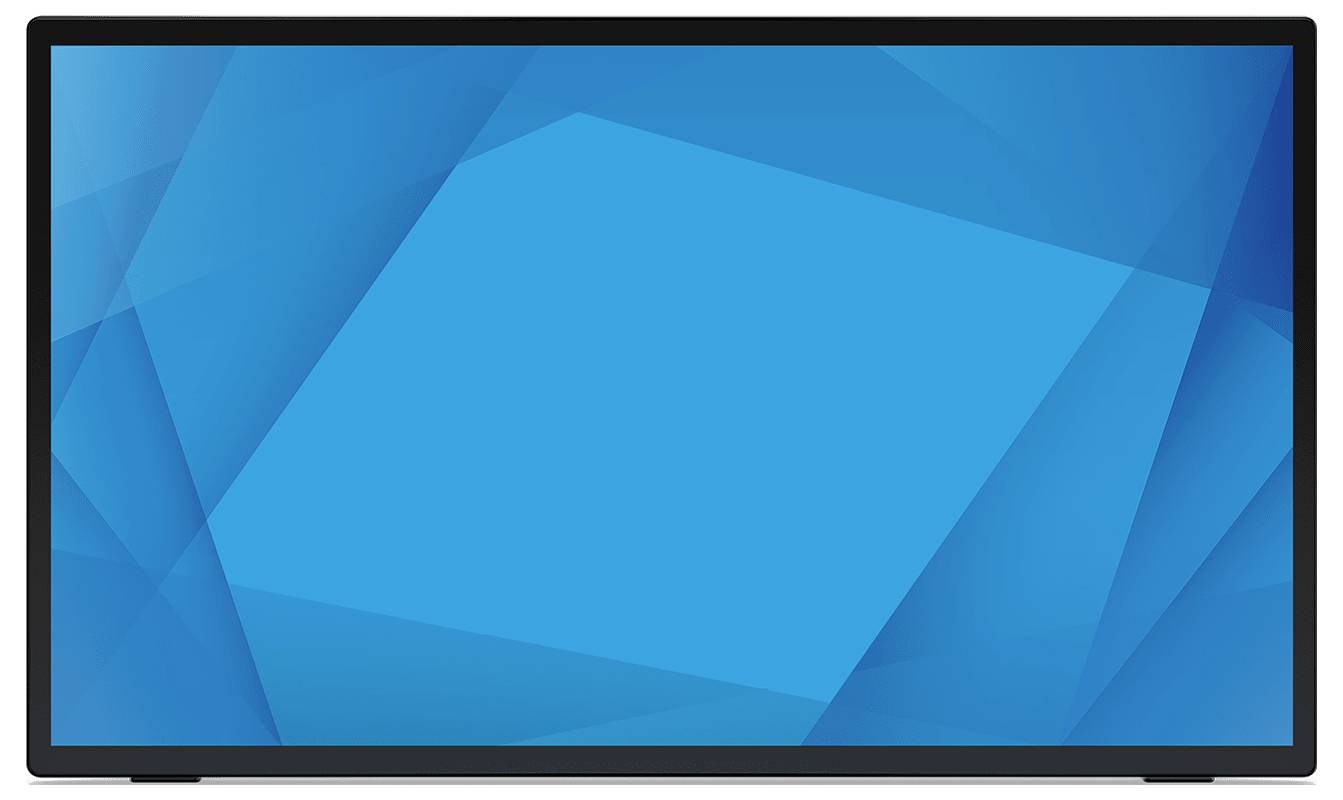

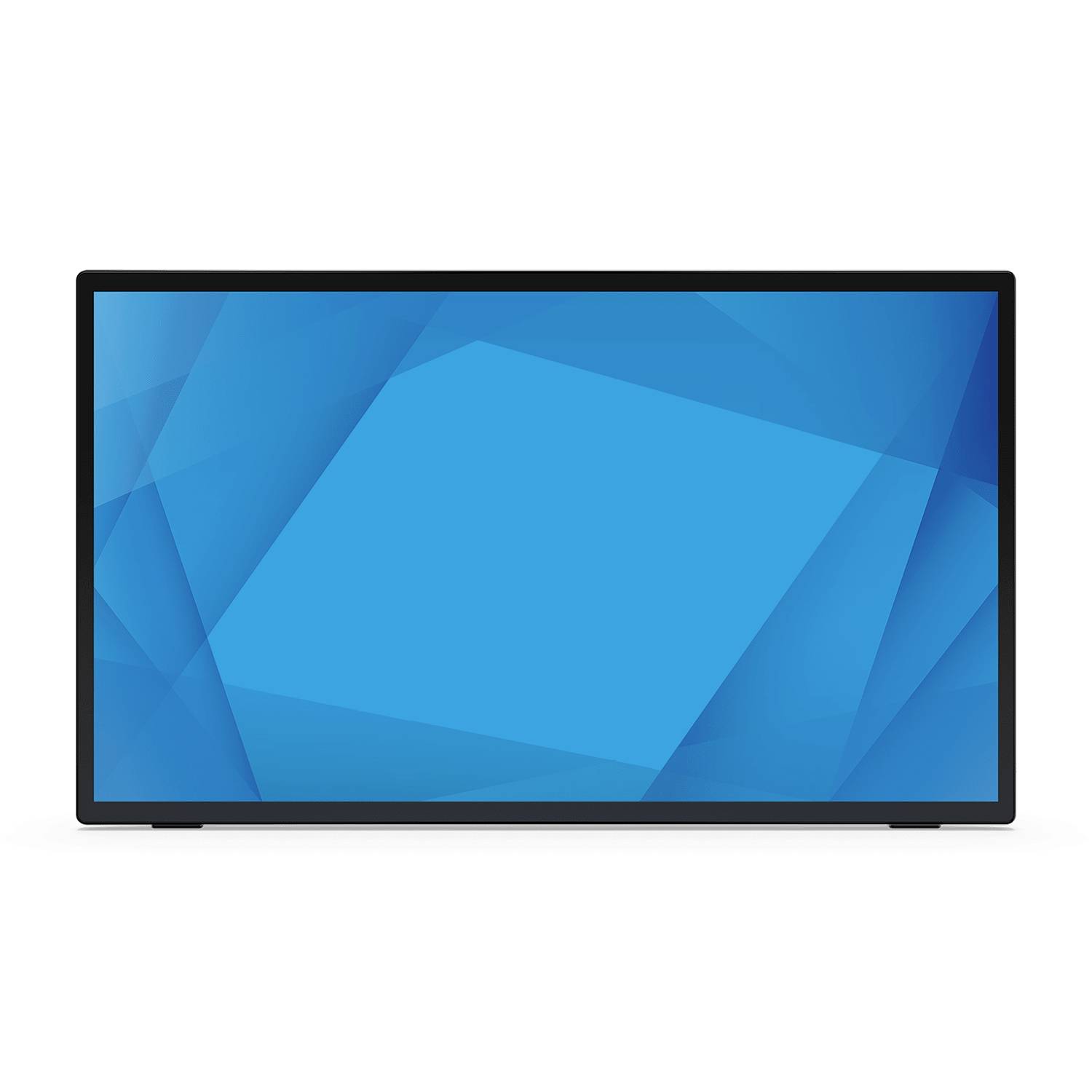

Elo Touch Solutions Elo 2770L computer screen 68.6 cm (27") 1920 x 1080 pixels Full HD LED touch-screen black
- Screen size 68.6 cm (27 inch)
- Energy efficiency rating (calc): E (A - G)
- Interfaces: Response time: 14 ms;Built-in speakers
Technical specifications
- Screen technology: LED
- Contrast ratio: 1000:1
- Market Positioning: Business
- Product type
Touchscreen
- Image format
16:9
- Response time
14 ms
- Brightness
270 cd/m²
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Factory colour
Black
- Features
Built-in speakers
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of DisplayPort
1 x
- Weight
6.3 kg
- Power consumption (standby)
0.5 W
- Display type
16:9
- Display size
24 inch - 29 inch
E (A - G)
- Display
68.6 cm (27 inch)
- Audio power (max.)
4 W
- Power supply (details)
100 - 240 V
- Touchscreen (display)
Yes
- Resolution (max.)
1920 x 1080 p
- Screen resolution
Full HD (1920 x 1080 Pixel)
- Display (cm)
68.6 cm
- Screen size diagonal (cm)
68.6 cm
- Screen size diagonal (inches)
27 inch
- Power consumption (off)
0.16 W
- Power consumption (ON)
19 W
- Device depth (without stand)
372.8 mm
- Display properties
TFT
- Display resolution
1920 x 1080 Pixel
- Frame rate
60 Hz
- Display resolution mode
Full HD
- Height (without base)
43.8 mm
- Type
External
100 x 100 mm
- UKCA
yes
- Number of speakers
2
- Anti-glare screen
yes
- Operating temperature (T-T)
0 - 40 °C
- Number of simultaneous touchpoints
10
- Weight (without stand)
6.3 kg
- Width (without stand)
626.2 mm
- Cable lock slot
no
- Storage relative humidity (H-H)
10 - 95 %
- VESA mounting
yes
- Height adjustment
no
- Power consumption (PowerSave)
16.5 W
- NVIDIA G-SYNC
no
- Built-in USB hub
yes
- USB Type-A downstream ports quantity
2
- Built-in speaker(s)
yes
- Digital horizontal frequency
30 - 82 kHz
- Digital vertical frequency
50 - 75 Hz
- AMD FreeSync
no
- On Screen Display (OSD)
yes
- USB Touch port
yes
- USB Touch ports quantity
1
- Number of USB Type-B upstream ports quantity
1
- Energy consumption (SDR) per 1000 hours
18 kWh
- HDMI
yes
- Operating relative humidity (H-H)
20 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Package weight
9.45 kg
- Built-in camera
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3768225 elo Touch Solution 2770L Touchscreen EEC: E (A - G) 68.6 cm (27 inch) 1920 x 1080 p 16:9 14 ms
Description
Your Touch monitor combines Elo's latest advances in touch technology and display design with reliability for use in environments with Hohem traffic.
This touch screen features an LCD panel with thin-film transistors and 24-bit color active matrix for high-quality display performance. The 70 series supports full HD resolution of 1920 x 1080. The LED-background lighting reduces the power consumption significantly and makes mercury redundant. Other functions that improve the display performance of this LCD touch monitor are the plug-and-play compatibility, the touch-sensitive OSD-control and the flexible mounting options.
This text is machine translated.
This touch screen features an LCD panel with thin-film transistors and 24-bit color active matrix for high-quality display performance. The 70 series supports full HD resolution of 1920 x 1080. The LED-background lighting reduces the power consumption significantly and makes mercury redundant. Other functions that improve the display performance of this LCD touch monitor are the plug-and-play compatibility, the touch-sensitive OSD-control and the flexible mounting options.
This text is machine translated.
Scope of delivery
- Cable
- Quick guide.
