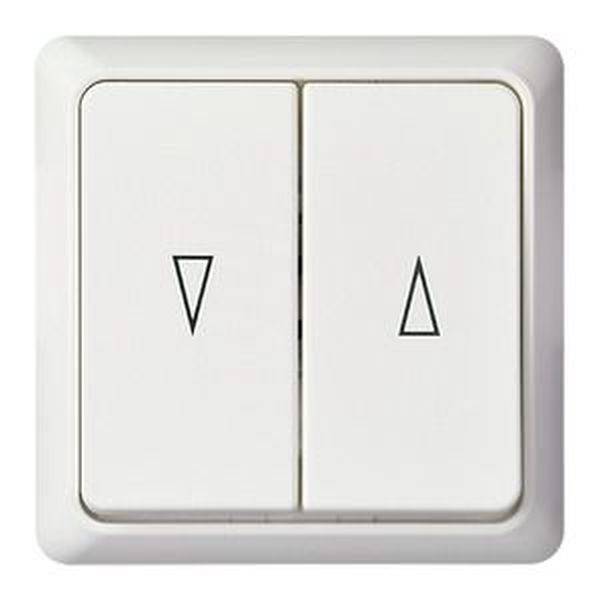

ELSO 242804 ELSO UP shutter button 242804 10A RENOVATION complete RW Shutter blind sensor Renovation 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
ELSO UP shutter button 242804 10A RENOVATION complete RW
- Switch type function
Shutter blind sensor
- Product type
Switch product range
- Switch type component
Complete
- Type series
Renovation
- Content
10 pc(s)
- Material
Thermoplastic
250.0 V
Flush mounted (plaster)
Basic element with full cover plate
Other
White
1-pole push button
TRUE
Untreated
10.0 A
TRUE
Thermoplastic
1.0
Plastic
Mounting with claw and screw
2.0
TRUE
9010.0
TRUE
FALSE
Glossy
FALSE
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2985975 ELSO 242804 ELSO UP shutter button 242804 10A RENOVATION complete RW Shutter blind sensor Renovation 10 pc(s)
Description
Shutter button. Colour: Pure white, with mechanical and electrical interlocking to prevent simultaneous operation, after removal of the return spring can also be used as a blind switch for flush mounting Protection class IP 20, button 10 A, 250V AC, frame and rockers made of thermoplastic, can also be used in device holders with an installation depth of at least 32 mm. Plug terminals: Clamp area for information cables from cable diameter 0.5mm, for copper conductors 1.5 mm and 2.5 mm.
