ELSO 740010 ELSO room signal lamp 740010 Sigma, white Alarm function ELSO Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type

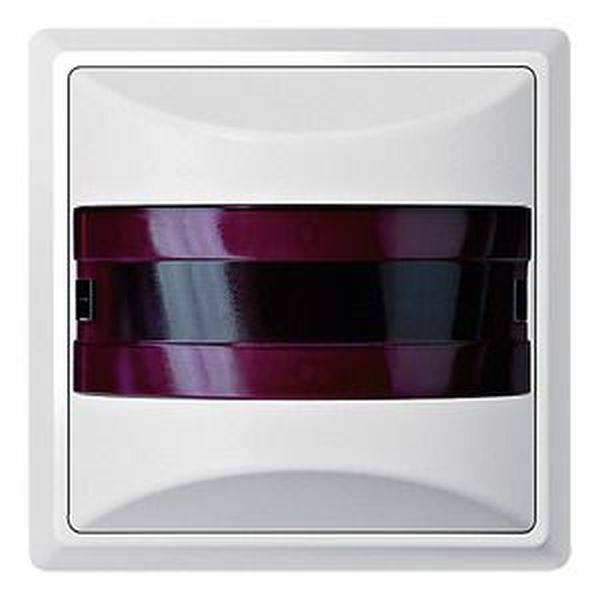

ELSO room signal lamp 740010 Sigma, white
- Switch type function
Alarm function
- Product type
Switch product range
- Switch type component
Surface-mount casing
- Type series
ELSO
- Factory colour
Multicolour
- Switching capacity
4 W
- Content
1 pc(s)
- Weight
0.12
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3021845 ELSO 740010 ELSO room signal lamp 740010 Sigma, white Alarm function ELSO Multicolour 1 pc(s)
Description
Room indicator, color white. With red LEDs. Audible and visual alarm. A maximum of 8 call buttons and 4 switch-off buttons can be connected. The room lamp functions in connection with call and stop buttons completely independent even without center. Line monitoring against short-circuit and breakage is guaranteed. Memory function can be selected (ON/OFF) Acoustic signal strength approx. 70 dB at 1 m. Separate call and shut-off circuit. Call button and shutdown 2-wire cable each. Relay output of 2 changeover contacts (1A, 60VDC, 30W or 1A, 42VAC, 30VA). Current consumption max. 200 mA AC or 150 mA DC. OPERATING VOLTAGE 24 V AC/DC (20. 28 V). Monitoring current 7 mA. Dimensions 85 x 85 x 30 mm. Wall mounting.
