ELSO CCT56P001 ELSO motion detector CCT56P001 Argus STANDARD 360GRAD white Motion detector Standard White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
ELSO motion detector CCT56P001 Argus STANDARD 360GRAD white
- Switch type function
Motion detector
- Product type
Switch product range
- Type series
Standard
- Factory colour
White
- Switching capacity (light bulbs)
1000 W
- Content
1 pc(s)
4 m
Surface mounted (plaster)
White
105.3
Movement sensor
TRUE
56.7 mm
33.5 mm
Screwed terminal
Untreated
AC
50-50 MHz
Thermoplastic
10 A
Plastic
9010
IP20
FALSE
Glossy
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3020623 ELSO CCT56P001 ELSO motion detector CCT56P001 Argus STANDARD 360GRAD white Motion detector Standard White 1 pc(s)
Description

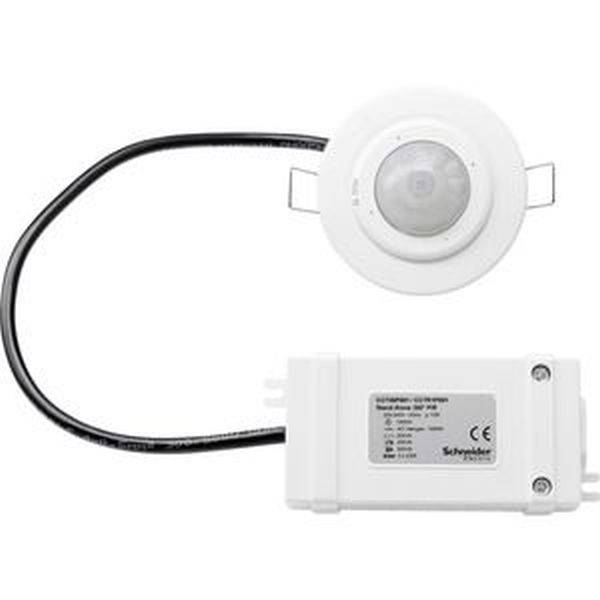

Motion detector for intermediate ceilings indoor. 360°-area monitoring. Attractive small sensor. The sensor detects movement in the room. Switches on the light and allows it to be switched on until no further movement is detected. Quick and easy on-time, sensitivity and light sensitivity settings. The device consists of the sensor and a power box with a permanently attached cable (35 cm). The sensor is installed in ceiling openings of 63 mm wide. Power supply 220-240 V AC, 50 Hz. Max. Switching current 10 A, 220-240 V AC, Cos Phi 0.6. Nominal power of incandescent lamps 1000 W. Halogen lamps AC 230V 1000 W. Halogen with electronic converter 250 VA. Halogen with iron core transformer 500 VA. Detection angle 360 ° Range radius of max. 4 m (at a mounting height of 3 m). Light sensitivity (Lux setting) 5-2000 Lux Time setting approx. 5 s to approx. 8 min.
