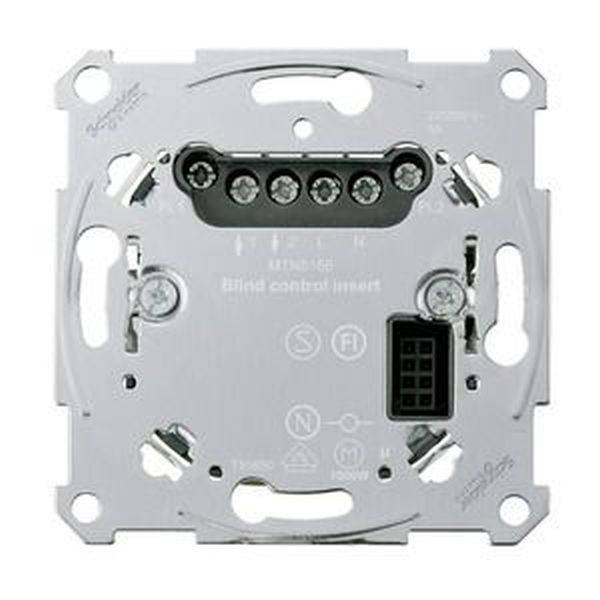

ELSO MTN5165-0000 ELSO SHUTTER CONTROL INSERT MTN5165-0000 MTN5165-0000 Shutter switch ELSO Multi-coloured 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
ELSO SHUTTER CONTROL INSERT MTN5165-0000 MTN5165-0000
- Switch type function
Shutter switch
- Product type
Switch product range
- Switch type component
Insert
- Type series
ELSO
- Factory colour
Multi-coloured
- Switching capacity
1000 VA W
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3020627 ELSO MTN5165-0000 ELSO SHUTTER CONTROL INSERT MTN5165-0000 MTN5165-0000 Shutter switch ELSO Multi-coloured 1 pc(s)
Description
For on-site control of a blind / shutter motor with limit switch xx The insert has two electrically locked relay contacts that reliably prevents the simultaneous control of both relay outputs. With claw and screw fixing. With screw terminals. Functions: -The module defines the way in which the function of the insert is used. Lamellae adjustment in case of blinds. External control via two PlusLink inputsxx nominal voltage:AC 220/230 V, 50/60 Hz. 2 NO contacts (locked against each other). Engine load:1 engine, max. 1000 VA. Neutral conductor: Required (3 conductor system). Connection cross-section: Max. 2x2.5 mm². Note: All control functions are included in the module. A insert without module is not working.
