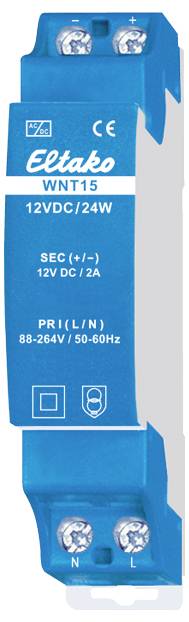

Eltako 20000072 Rail mounted PSU (DIN) 2 A 24 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
short circuit resistant
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
110 V AC
- Output voltage
12 V
- Input voltage (max.)
240 V AC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
24 W
- Connection
Screws
- Dim
(L x W x H) 58 x 18 x 58 mm
- Weight
80 g
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Manufacturer part #
20000072
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
18 mm
- Height
58 mm
- Length
58 mm
IP20
- Type
WNT15-12VDC/24W
- Depth
70.0000 mm
18 mm
58 mm
58 mm
18 mm
TRUE
1
AC
24 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
12-12 V
FALSE
110-240 V
TRUE
2 A
12 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398258 Eltako 20000072 Rail mounted PSU (DIN) 2 A 24 W Content 1 pc(s)
Description
Wide-range switching power supply Power rating 24W. Standby loss of only 0.1 watt. DIN-EN 60715 TH35 DIN rail mounting devices. 1 division unit = 18 mm wide, 58 mm deep. For a load greater than 50% of the rated power and always with power supply units lying next to each other and for dimmers, 1/2 division unit ventilation clearance with the DS12 spacers is required on both sides. Wide-range input voltage 88-264V AC (110V- 20% to 240V +10%). Efficiency 91% Stabilised output voltage ±1%, low ripple. Short-circuit-proof. Overload and excess temperature protection by switching off with automatic switching after fault elimination (auto-recovery function).
