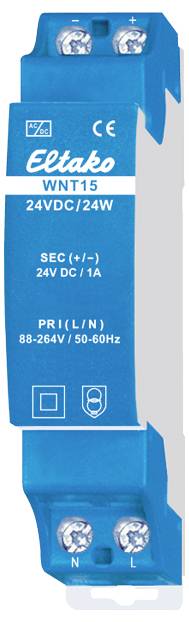

Eltako 20000073 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V 1 A 24 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
short circuit resistant
- Nominal input voltage
110 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
110 V AC
- Output voltage
24 V
- Input voltage (max.)
240 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
24 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Screws
- Dim
(L x W x H) 58 x 18 x 58 mm
- Weight
80.00
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Manufacturer part #
20000073
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
18 mm
- Height
58 mm
- Length
58 mm
IP20
- Type
WNT15-24VDC/24W
- Consumption (standby)
0.1 W
- Efficiency
91 %
- Depth
70.0000 mm
18 mm
58 mm
58 mm
18 mm
TRUE
1
AC
24 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
24-24 V
FALSE
110-240 V
TRUE
1 A
24 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398255 Eltako 20000073 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Description
Wide-range switching power supply Power rating 24W. Standby loss of only 0.1 watt. DIN-EN 60715 TH35 DIN rail mounting devices. 1 division unit = 18 mm wide, 58 mm deep. For a load greater than 50% of the rated power and always with power supply units lying next to each other and for dimmers, 1/2 division unit ventilation clearance with the DS12 spacers is required on both sides. Wide-range input voltage 88-264V AC (110V -20% to 240V +10%). Efficiency 91% Stabilised output voltage ±1%, low ripple. Short-circuit-proof. Overload and excess temperature protection by switching off with automatic switching after fault elimination (auto-recovery function).
