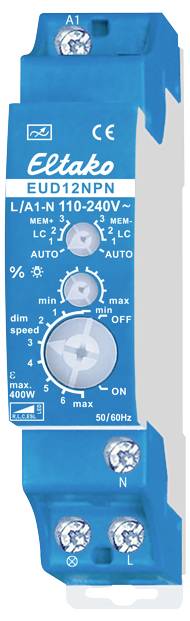

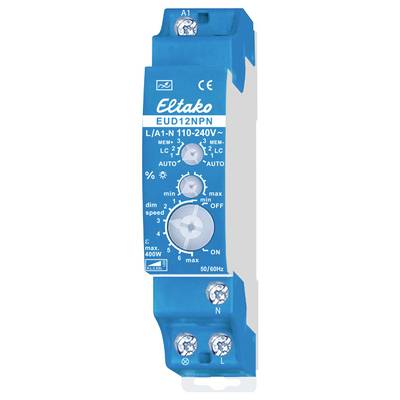

Eltako 21100808 Universall dimmer/switch Blue

Universal dimmer switch. Power MOSFET to 400W. Automatic lamp detection. Standby loss of only 0.2 watt. Minimum or maximum brightness and dimming speed can be set. With kid's room and snooze circuit. DIN-EN 60715 TH35 DIN rail mounting device. 1 division unit = 18 mm wide, 58 mm deep. Universal dimmer switch for lamps up to 400W, depending to the ventilation conditions. Dimmable 230 V-LED lamps and dimmable energy saving lamps ESL, which is also dependent on the lamp electronics and the dimming type. Switch with soft on and soft off for protecting the lamp. Control and switching voltage 110V AC to 240V AC 50/60Hz. No minimum load required. Short control commands switch on / off, permanent controls change the brightness up to the maximum value. Interrupting the control changes the dimming direction. In the event of a power failure, the switch position and the brightness level are saved and, if necessary, switched on when the supply voltage is restored. Automatic electronic overload protection and overheating shut-off. Under the upper rotary switch on the front there is a LED which indicates the activation. It starts flashing after 15 seconds to alert you to a control button that might be blocked. The upper rotary switch determines during operation whether automatic lamp detection is to work AUTO or one of the special Comfort positions LC1, LC2 or LC3. If the range setting MEM+ is selected, the memory function is active and the last brightness setting selected is saved when turning the device off. If the setting range MEM- is selected, the memory function is turned off and the device is always turned on at maximum brightness. Dimmable power-saving bulbs must be operated on CAR and MEM. CAR allows dimming of all kinds of lamp. LC1 is a Comfort position for dimmable 230 V LED lamps, which cannot be dimmed far enough on AUTO (phase section) due to the design and therefore have to be forced to phase control. LC2 and LC3 are comfort positions for dimmable 230V LED lamps such as LC1, but with other dimming curves. Inductive (wound) transformers must not be used in the LC1, LC2 and LC3 positions. Furthermore, the maximum number of dimmable LED lamps may be lower than in the AUTO setting due to their design. Using the appropriate %lamp rotary switch, you can set minimum brightness (fully dimmed) or maximum brightness (fully dimmed). The dimming speed can be set using the lower dim-speed rotary switch. Simultaneously, the duration of soft-on and soft-off is changed. With children's room switching: When switched on with a longer button actuation, the device switches on at the lowest brightness after approx. 1 second and, as long as the button is pressed, slowly increases its brightness without changing the last saved brightness level. With snooze connection: By double pulse the lighting from the current dimming position up to minimum brightness is dimmed and switched off. The max. Dimming time of 60 minutes depends on the current dimming position and the set minimum brightness and can therefore be shortened accordingly. You can switch it off at any time during the dimming process using the short buttons. A long button during the dimming process dims and ends the snooze connection. L-loads (inductive loads, e.g. wound transformers) and C-loads (capacitive loads, e.g. electronic transformers and LED-lamps) must not be mixed. R-loads (ohmic loads, e.g. 230 V incandescent and halogen lamps) can be mixed in at will. For mixing L-loads and C-loads the universal dimming switch EUD12D in conjunction with the power supply LUD12 is suitable.
