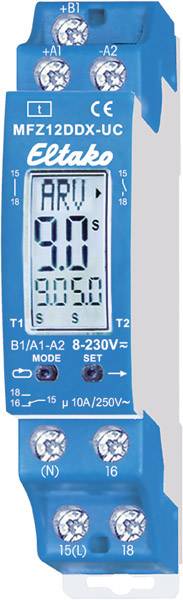

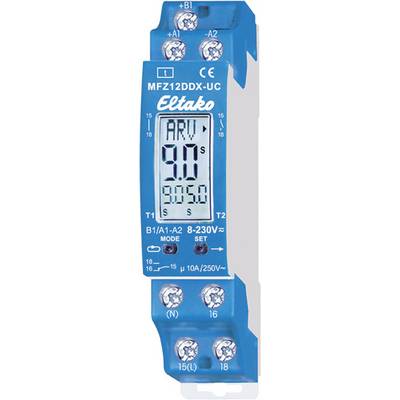

Eltako 23001004 MFZ12DDX-UC TDR Multifunction 230 V 1 pc(s) Time range: 0.1 s - 99 h 1 change-over
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
On-/Off-delay
Impulse ON through contact timer
Impulse OFF through contact timer
On-delay, additive
On-delay, pulse
Pulse shaper
Single shot leading edge
Single shot trailing edge
Single shot leading and trailing edge
On-delay
Off-delay
Impulse changeover switch
Impulse changeover switch with off-delay
Impulse off-delay
ON-triggered
OFF-triggerd
Operating voltage
230 V
Max. operating voltage
230 V
Datasheet (PDF)
59 Piece(s)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€ 63.02
-20 %
€
Technical specifications
- Product type
TDR
- Type
MFZ12DDX-UC
- Type
Multifunction
- Connection
Screw terminal
- Functions
On-/Off-delay
Impulse ON through contact timer
Impulse OFF through contact timer
On-delay, additive
On-delay, pulse
Pulse shaper
Single shot leading edge
Single shot trailing edge
Single shot leading and trailing edge
On-delay
Show more
- Operating voltage
230 V
- Max. operating voltage
230 V
- Operating voltage
230 V (max)
- Contact type
1 change-over
- Contact material
Copper
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2000 W
- Time range (min.)
0.1 s
- Time range (max.)
99 h
- Width
18 mm
- Height
66 mm
- Depth
58 mm
- Dim
(W x H x D) 18 x 66 x 58 mm
- Content
1 pc(s)
- Display type
B/w display
- External input
Yes
- Type
digital
- Weight
890 g
10 A
DIN rail
18 mm
Multi function
66 mm
58 mm
58 mm
0
0
10 A
1
1
8-230 V
50-50 Hz
AC/DC
0.1-14400 s
Screw connection
230-230 V
12-12 V
Other
8-230 V
2000 W
1000 VA
1000 VA
500 VA
AC
1
Copper
230-230 V
8-8 V
0
0
Thermoplastic
- UKCA
yes
