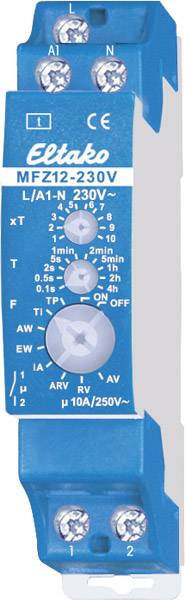

Eltako 23100530 MFZ12-230V TDR Multifunction 230 V 1 pc(s) Time range: 0.1 s - 40 h 1 maker
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
Off-delay
On-delay
Impulse ON through contact timer
Impulse OFF through contact timer
On-delay, pulse
Single-shot leading-edge
Single-shot trailing-edge
On-/Off-delay
ON-triggered
OFF-triggerd
Operating voltage
230 V
Contact type
1 maker
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Technical specifications
- Product type
TDR
- Type
MFZ12-230V
- Type
Multifunction
- Connection
Screw terminal
- Functions
Off-delay
On-delay
Impulse ON through contact timer
Impulse OFF through contact timer
On-delay, pulse
Single-shot leading-edge
Single-shot trailing-edge
On-/Off-delay
ON-triggered
OFF-triggerd
- Operating voltage
230 V
- Contact type
1 maker
- Contact material
Copper
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
1000 W
- Time range (min.)
0.1 s
- Time range (max.)
40 h
- Width
18 mm
- Height
66 mm
- Depth
58 mm
- Dim
(W x H x D) 18 x 66 x 58 mm
- Content
1 pc(s)
- Weight
860 g
10 A
18 mm
66 mm
58 mm
10 A
1
0.1-14400 s
Screw connection
230-230 V
12-12 V
Other
1000 W
500 VA
500 VA
250 VA
AC
1
Copper
230-230 V
8-8 V
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2162041 Eltako 23100530 MFZ12-230V TDR Multifunction 230 V 1 pc(s) Time range: 0.1 s - 40 h 1 maker
User & Safety Instructions
User & Safety Instructions 2162041 Eltako 23100530 MFZ12-230V TDR Multifunction 230 V 1 pc(s) Time range: 0.1 s - 40 h 1 maker
Description
Analog adjustable multifunction timer relay with 10 functions. Standby loss of only 0.4 watt. Times between 0.1 seconds and 40 hours can be set. Functions F: Rv = Release delay. AV = Response delay. TI = clock pulse ON. TP = timer starting with pause. IA = Impulse-controlled delay delay (e.g. automatic door opener). EW = switch wiper. AW = single shot trailing edge. ARV = response and release delay. ON = constant ON. OFF = Duration OFF. The LED below the large rotary switch informs about the contact position during the time. It flashes as long as the NO contact is open and stays lit as long as the NO contact is closed. The time base T is set by the middle latching T rotary switch.
