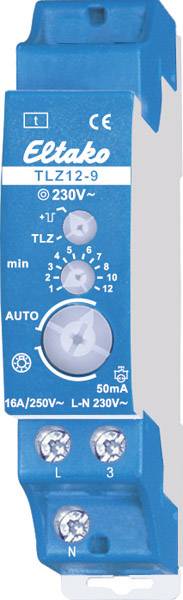

Eltako 23100836 TDR DIN rail 230 V
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
TDR
- Features
Switch-off alert
- Used at
Indoors
- Operating voltage
230 V
- Shortest switching time
1 min
- Width
18 mm
- Depth
58 mm
- Dim
(W x D) 18 mm x 58 mm
- Use
Lighting
- Mounting type
DIN rail
- Nominal current
10 A
- Nominal voltage
230 V
- Weight
0.08
- UKCA
not relevant
Description
Staircase light timer with switch-off pre-warning. Standby loss only 0.7 watts. Contact switching in zero crossing to protect the contacts and lamps. In particular, this extends the service life of energy-saving lamps. By using a bistable relay, there is no coil power loss and no heating thereby even when the relay is switched on. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. Control-, Supply and switching voltage 230V Glow lamp current up to 50mA depending on the ignition voltage of the glow lamps. Precise time setting 1 to 12 minutes with minute scale. Separate continuous light switch with the large rotary switch. For 3-wire circuits with roof floor lighting, cannot be switched on. Only for retrofitting existing systems. After a power failure, the light is switched on again if the time has not yet been completed. When the switch-off pre-warning is activated, the lighting flickers approx. 30 seconds before the time runs out and a total of 3 times in shorter intervals.
