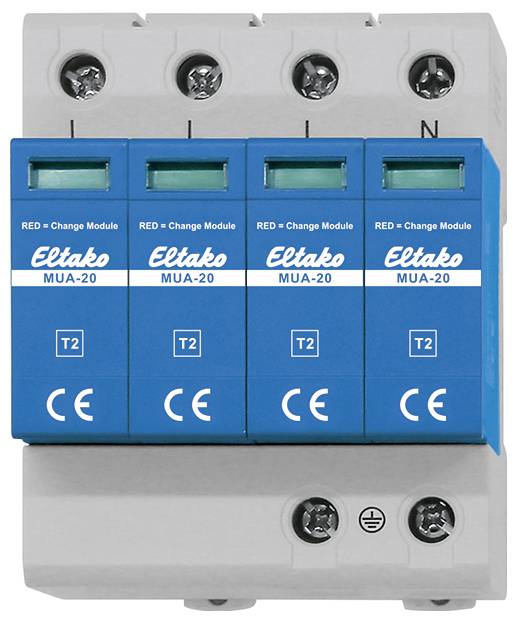

Eltako 28380003 MUA-20 Surge arrester Surge protection for: Switchboards 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Network type TN: Yes
- Grid type TT: Yes
- Max. Continuous voltage AC 275 V
- Nominal surge current (8/20) 20 kA
- Max. Surge current (8/20) 40 kA
- Short-circuit resistance (Iscr): 25
- Integrated fuse: Yes
- Protection level 1.2 kV
- Mounting type: Cap rail TF15
- Signalling at device: Optical
- Installation size 4 TE
- Product type
Surge arrester
- Surge protection for
Switchboards
- Nominal voltage
230 V AC
IP20
- Manufacturer part #
28380003
- Dim
(W x H x D) 95.0000 x 80.0000 x 70.0000 mm
- Width
95.0000 mm
- Height
80.0000 mm
- Depth
70.0000 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
0.3880 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3451584 Eltako 28380003 MUA-20 Surge arrester Surge protection for: Switchboards 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3451584 Eltako 28380003 MUA-20 Surge arrester Surge protection for: Switchboards 1 pc(s)
Description
DIN-EN 60715 TH35 DIN rail mounting device.
4 division units = 72 mm wide.
The modular surge suppressor reliably protects electrical systems against transient overvoltage.
Protects TN- and TT-systems against switch surges and indirect lightning effects.
Compact design, simple DIN rail mounting and modular design allow quick installation and maintenance.
Provides type 2 protection and reliably protects against transient overvoltage by switching operations or remote lightning strikes.
According to DIN VDE 0100-443/534, the use of a MUA-20 is mandatory if, for example, the cable length between the main and sub-distribution is more than 10 meters.
If external lightning protection is provided, a protection level is required:
Type 1 in the main distribution (e.g. MUA-100, MUA-50)
Type 2 in the sub-distribution (e.g. MUA-30, MUA-20)
A type 2 arrester in the sub-distribution is only required if the cable length to the main distribution with installed type 1+2+3 is more than 10 meters.
This text is machine translated.
4 division units = 72 mm wide.
The modular surge suppressor reliably protects electrical systems against transient overvoltage.
Protects TN- and TT-systems against switch surges and indirect lightning effects.
Compact design, simple DIN rail mounting and modular design allow quick installation and maintenance.
Provides type 2 protection and reliably protects against transient overvoltage by switching operations or remote lightning strikes.
According to DIN VDE 0100-443/534, the use of a MUA-20 is mandatory if, for example, the cable length between the main and sub-distribution is more than 10 meters.
If external lightning protection is provided, a protection level is required:
Type 1 in the main distribution (e.g. MUA-100, MUA-50)
Type 2 in the sub-distribution (e.g. MUA-30, MUA-20)
A type 2 arrester in the sub-distribution is only required if the cable length to the main distribution with installed type 1+2+3 is more than 10 meters.
This text is machine translated.
