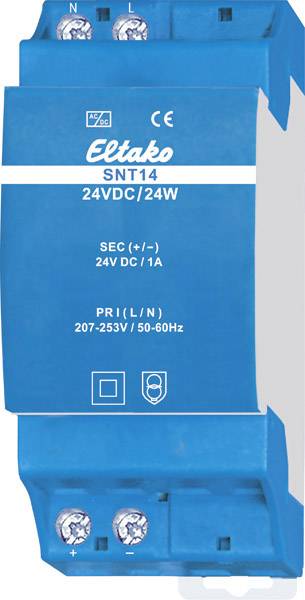

Eltako 30014032 Rail mounted PSU (DIN) Consumption (standby) 0.2 W 24 V 1 A 24 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
88 V AC
- Output voltage
24 V
- Input voltage (max.)
264 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
24 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 58 x 36 x 58 mm
- Weight
0.132 kg
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Manufacturer part #
30014032
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
36 mm
- Height
58 mm
- Length
58 mm
IP20
- Type
SNT14-24V/24W
- Consumption (standby)
0.2 W
- Efficiency
86 %
18 mm
58 mm
58 mm
0.1 VA
18 mm
TRUE
1
DC
24 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
24-24 V
FALSE
88-264 V
TRUE
1 A
24 V
1 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162183 Eltako 30014032 Rail mounted PSU (DIN) Consumption (standby) 0.2 W 24 V 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Description
Switched PSU Stand-by loss only 0.2 watt. At a load greater than 50% of the rated power and always with switched-mode power supplies lying next to each other starting from 12 watts nominal power and with dimmers, a 1/2 division unit ventilation distance with the spacers DS12 is required on both sides. Efficiency 86% Stabilized output voltage ±1%, low ripple. Short-circuit-proof. Overload and over-temperature protection by switching off with automatic switching on after troubleshooting (auto-recovery function).
