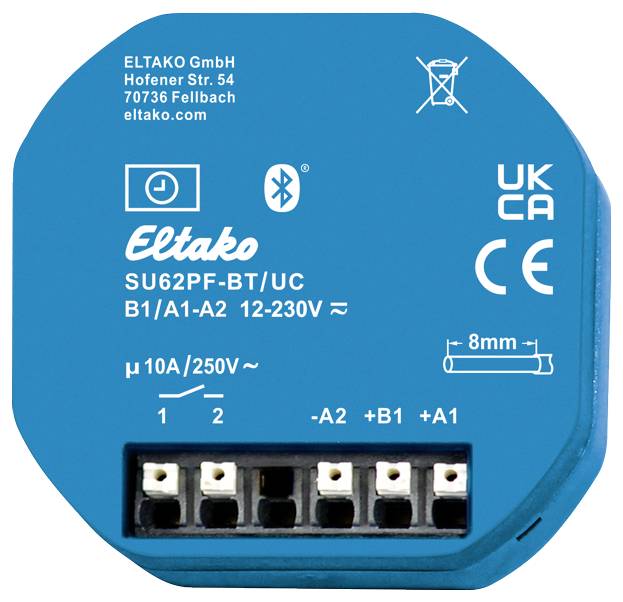

Eltako 30062006 Timer Daylight savings/sunup/sundown control, 24h mode, 7 day mode IP20 Power reserve, RND mode

1-channel timer with potential-free contact, Bluetooth and Eltako Connect-APP. 1 N/O potential free 10 A/250 V AC, 230 V-LED lamps and ESL up to 200 W, lamps 2000 W. With Astro function. Standby loss of only 0.3 watt. For panel mounting. 49 x 51 mm, 20 mm deep. The terminals are plug-in terminals for conductor cross-sections from 0.2 mm² to 2.5 mm. Supply and control voltage 12-230V UC. Bistable relay, so even when switched on there is no coil power loss and no heat up. Up to 60 memory locations for programming of switch times. With date and automatic change-over from summer to winter time. Min. Power reserve without battery approx. 7 days. In case of voltage reversal the timer switches the programs. Each memory position can be occupied either with the Astro function (automatic switching after sunrise or sunset) or with the switch-on and switch-off time, one-time program execution can be configured. The Astro on/off time can be moved up to ± 2 hours. In addition, a time shift of up to ± 2 hours influenced by the solstice can be entered. The setup of the timer takes place via Bluetooth with the Eltako Connect-APP. The QR code in the user manual will lead to the download of the APP used to configure the device. Pairing mode: Automatic for 3 minutes after the voltage is applied or manually via the local button (press 5 seconds). A brief switching on and off of the load signals the coupling readiness. If the connection is not disconnected via the APP, it is automatically disconnected after 20 minutes without communication with the APP. After the connection with the APP has been disconnected, the timer will be ready for pairing for 3 minutes again, but can be ended manually via the local button (press 5 seconds). Switching the load on and off twice signals the end of the pairing readiness. Change PIN: The PIN for the Bluetooth connection can be changed in the APP under the entry Device PIN. Bluetooth reset (delete possibly changed PIN): Tap the local button briefly 8 times or switch the power supply on and off 8 times. Setting the timer via the Eltako Connect-APP: Editing programs: Creating, editing and activating/deactivating time and Astro programs, as well as the possibility of executing a program only once. Channel configuration: Select between AUTO, on or off function. The timer switch switches only according to the time and Astro programs when the AUTO function is activated. Random mode: When the random mode is on, all switching times are moved randomly by up to 15 minutes. Switch-on times are moved forward and switch-off times backward. Time offset solar solstice: Adjustment of a time shift of up to ± 2 hours at the solstice of summer and at the solstice of winter. Date and time: Date, time, time zone and summer/winter time can be set manually or automatically determined and set by the APP. Location: The site can be entered manually or identified and set by the APP. Bluetooth: Select between 3 Bluetooth settings. 3min-On: After the voltage is applied, the timer is ready for connection for 3 minutes. Manual-To: The pairing readiness can only be activated for 3 minutes via the local button. Permanent On: Bluetooth remains permanently active Factory settings: Select between deleting all programs, resetting Bluetooth settings, and resetting to factory settings. Operating the timer with the local key: Manual: By pressing a short button you can always switch it on and off manually.
