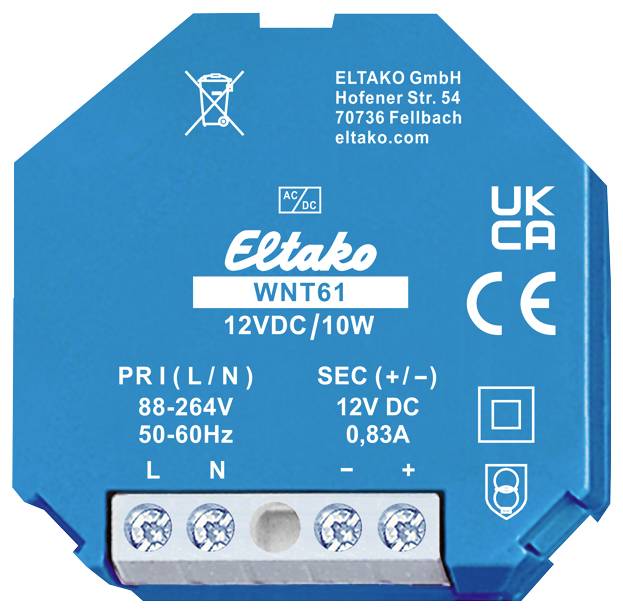

Eltako 61000264 SMPSU 12 V 1 A 10 W
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Wide-range switching power supply 12V DC
- Output 12 V / 1 A
- Power 10 W
- Screws
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
240 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Min. input voltage
110 V AC
- Dim
(L x W x H) 33 x 45 x 45 mm
- Output voltage (max.)
12 V
- Connection
Screws
10 W
IP20
- Type
short circuit resistant
- PSU features
Adjustable voltage output
Regulated
- Width
45 mm
- Height
45 mm
- Length
33 mm
- Type
WNT61-12VDC/10W
- Depth
70.0000 mm
45 mm
45 mm
33 mm
45 mm
FALSE
AC
10 W
TRUE
Screw connection
FALSE
TRUE
TRUE
IP20
12-12 V
FALSE
110-240 V
TRUE
1 A
12 V
1 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398262 Eltako 61000264 SMPSU 12 V 1 A 10 W
Description
Wide-range switching power supply Power rating 10W. Standby loss of only 0.1 watt. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. Wide-range input voltage 88-264V AC (110V -20% to 240V +10%). Efficiency 86% Stabilised output voltage ±1%, low ripple. Short-circuit-proof. Overload and excess temperature protection by switching off with automatic switching after fault elimination (auto-recovery function).
