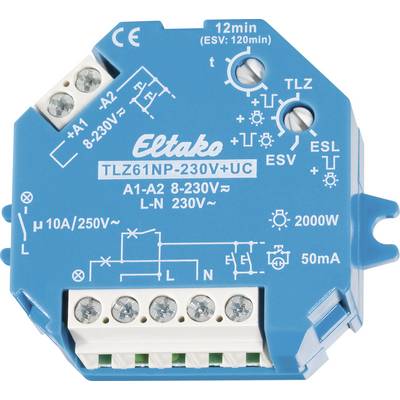

Eltako 61100301 TDR Flush mount, Recess-mount 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Technical specifications
- Galvanically separated universal control voltage 8 to 230 V UC
- Incandescent lamps and halogen lamps max. 2000 W
- Fluorescent lamp load with conventional ballast in Duo-Switching or uncompensated max. 1000 VA
- Fluorescent lamps with conventional ballast parallel compensated or with electronic ballast
- Compact fluorescent lamps with electronic ballast and energy-saving lamps 15 x 7 W/ 10 x 20 W
- Standby loss 0.7 W
- Factory colour
Multicolour
- Width
55 mm
- Height
45 mm
- Depth
18 mm
- Type
1 closing contact non-isolated 10 A/250 V AC
- Dim
(W x H x D) 55 x 45 x 18 mm
- Mounting type
Flush mount
Recess-mount
- Nominal current
10 A
- Nominal voltage
230 V
- Nominal voltage (details)
230 V/50 Hz
- Nominal current (details)
10 A
- Weight
500 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 621062 Eltako 61100301 TDR Flush mount, Recess-mount 230 V
Description
No coil-power loss and heat generation in a switched state through the use of a bi-stable relay. The contact switching takes place to protect the contacts and devices in the zero crossing. A switch-off warning and a continuous button-light can be switched on/off. Time setting is possible from 1 to 12 minutes.
