Eltako 61100604 MFZ61DX-UC TDR Multifunction 230 V 1 pc(s) Time range: 0.5 s - 1 h 1 maker
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
Off-delay
On-delay
Impulse ON through contact timer
On-delay, pulse
Single-shot leading-edge
Single-shot trailing-edge
Operating voltage
230 V
Contact type
1 maker
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Technical specifications
- Product type
TDR
- Type
MFZ61DX-UC
- Type
Multifunction
- Connection
Screw terminal
- Functions
Off-delay
On-delay
Impulse ON through contact timer
On-delay, pulse
Single-shot leading-edge
Single-shot trailing-edge
- Operating voltage
230 V
- Contact type
1 maker
- Contact material
Copper
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2000 W
- Time range (min.)
0.5 s
- Time range (max.)
1 h
- Width
45 mm
- Height
45 mm
- Depth
18 mm
- Dim
(W x H x D) 45 x 45 x 18 mm
- Content
1 pc(s)
- Factory colour
Multicolour
10 A
Surface mounted (plaster)
18 mm
Multi function
66 mm
58 mm
18 mm
1
0
10 A
0
8-230 V
50-50 Hz
AC/DC
0.1-14400 s
Screw connection
230-230 V
12-12 V
Other
8-230 V
1-1
2000 W
1000 VA
500 VA
AC
1
Copper
230-230 V
8-8 V
0
1
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2162234 Eltako 61100604 MFZ61DX-UC TDR Multifunction 230 V 1 pc(s) Time range: 0.5 s - 1 h 1 maker
Datasheet 2162234 Eltako 61100604 MFZ61DX-UC TDR Multifunction 230 V 1 pc(s) Time range: 0.5 s - 1 h 1 maker
User & Safety Instructions
User & Safety Instructions 2162234 Eltako 61100604 MFZ61DX-UC TDR Multifunction 230 V 1 pc(s) Time range: 0.5 s - 1 h 1 maker
Description

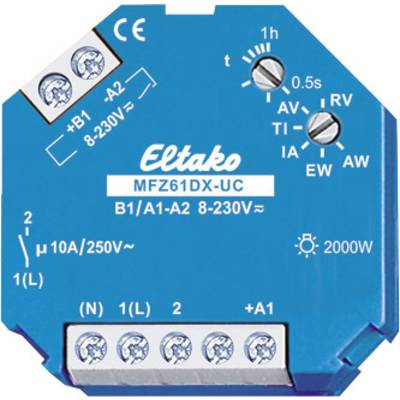

Analogueue adjustable multifunction timer relay UC. 1 normally open contact potential-free 10A/250V AC, incandescent lamps 2000W. Stand-by loss only 0.02 - 0.4 watts. For panel mounting. 45mm long, 45mm wide, 18mm deep. Contact switching in zero crossing to protect the contacts and lamps. In particular, this extends the service life of energy-saving lamps. The latest hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. By using a bistable relay, there is no coil power loss and no heating thereby even when the relay is switched on. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. Universal control voltage 8..230V UC galvanically isolated from the supply and switching voltage 230V. Times can be set between 0.5 seconds and one hour. Functions: RV = off-delay. AV = On-delay. TI = Clock pulse-starting. IA = pulse-controlled on-delay. EW = single shot leading edge. AW = single shot trailing edge. The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced to 15% for up to 2 seconds, to 30% for up to 2 minutes, to 60% for up to 5 minutes.
