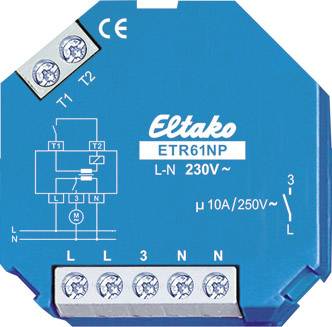

Eltako ETR61NP-230V Isolation relay Nominal voltage: 230 V 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolation relay
Contact type
1 maker
Nominal voltage
230 V
Switching voltage (max.)
250 V AC
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.15
€ 28.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Isolation relay
- Type
ETR61NP-230V
- Connection
Clamp
- Contact type
1 maker
- Nominal voltage
230 V
- Switching voltage (max.)
250 V AC
- Max. switching capacity
2500 VA
- Length
45 mm
- Width
45 mm
- Height
45 mm
- Dim
(L x W x H) 45 x 45 x 45 mm
- Content
1 pc(s)
- Weight
0.029 kg
- Depth
18 mm
- Mounting type
Flush mount
- Nominal current
10 A
230 V
Other
50-50 Hz
1
FALSE
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162235 Eltako ETR61NP-230V Isolation relay Nominal voltage: 230 V 1 maker Piece 1 pc(s)
Description
Cut RELAY 230V. 1 NO contact non-potential-free 10A/250V AC. Stand-by loss only 0.5 watts. For panel mounting. 45mm long, 45mm wide, 18mm deep. The latest hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Control input with internally generated low voltage 24V DC. With an isolating transformer galvanically separated from the power supply and the work contact (PELV). Therefore, no external low-voltage power supply is required. With two L-terminals and 2 N-terminals for easy and quick installation. Power supply 230V.
