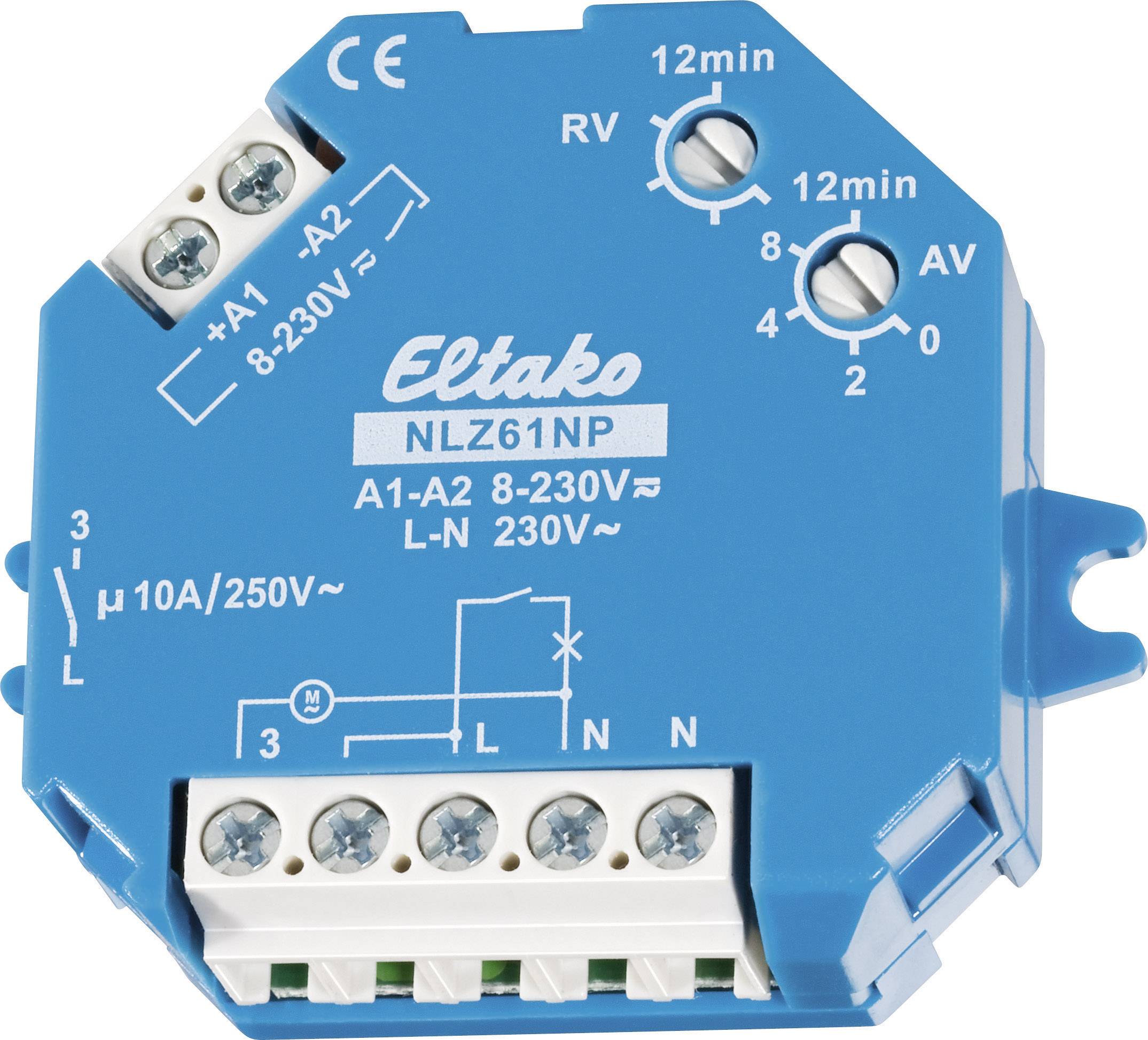

Eltako 61100704 NLZ61NP-UC Overshoot switch Multifunction 230 V AC 1 pc(s) Time range: 0.1 - 14400 s 1 maker
EAN:
Part number:
Item no:
Product type
Overshoot switch
Type
Multifunction
Functions
On-/Off-delay
Operating voltage
230 V AC
Contact type
1 maker
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Technical specifications
- Galvanically separated universal control voltage 8 to 230 V UC
- Standby loss 0.7 W
- Product type
Overshoot switch
- Type
NLZ61NP-UC
- Type
Multifunction
- Connection
Screws
- Functions
On-/Off-delay
- Operating voltage
230 V AC
- Contact type
1 maker
- Contact material
Copper
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2000 W
- Time range (min.)
0.1 s
- Time range (max.)
14400 s
- Length
45 mm
- Width
55 mm
- Height
45 mm
- Depth
18 mm
- Dim
(L x W x H) 45 x 55 x 45 mm
- Content
1 pc(s)
- Type
1 closing contact non-isolated 10 A/250 V AC
- Mounting type
Flush mount
Recess-mount
- Nominal current
10 A
- Nominal voltage
230 V
- Nominal voltage (details)
230 V/50 Hz
- Nominal current (details)
10 A
10 A
18 mm
66 mm
58 mm
10 A
0.1-14400 s
Screw connection
230-230 V
12-12 V
Other
AC
1
Copper
230-230 V
8-8 V
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 621063 Eltako 61100704 NLZ61NP-UC Overshoot switch Multifunction 230 V AC 1 pc(s) Time range: 0.1 - 14400 s 1 maker
User & Safety Instructions
User & Safety Instructions 621063 Eltako 61100704 NLZ61NP-UC Overshoot switch Multifunction 230 V AC 1 pc(s) Time range: 0.1 - 14400 s 1 maker
Description
No coil-power loss and heat generation in a switched state through the use of a bi-stable relay. The contact switching takes place to protect the contacts and devices in the zero crossing. The time setting is adjustable from 1 to 12 minutes, the delay from 0 to 12 minutes.
