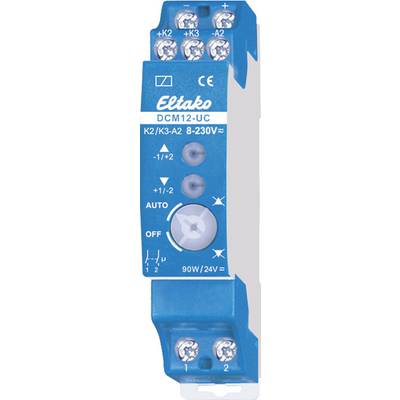

Eltako DCM12-UC Motor relay Nominal voltage: 24 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Motor relay
Nominal voltage
24 V
Type
DCM12-UC
Connection
Clamp
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 2 Piece(s) available
Technical specifications
- max. 90 W
- Packaging type
Piece
- Product type
Motor relay
- Type
DCM12-UC
- Connection
Clamp
- Factory colour
Blue
- Nominal voltage
24 V
- Max. switching capacity
90 W
IP20
- Content
1 pc(s)
- Mounting type
DIN rail
24 V
DRA (DIN-rail adapter)
Basic element
Blue
TRUE
Other
FALSE
FALSE
50-50 Hz
Thermoplastic
90 W
FALSE
Plastic
Clamp mounting
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Matt
IP20
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162032 Eltako DCM12-UC Motor relay Nominal voltage: 24 V Piece 1 pc(s)
Description
DC motor relay. Stand-by loss only 0.07 watts. 1 division unit. The DCM12-UC can be operated in parallel, but requires free contact outputs K2/K3 of the controlling EGS12Z-UC. These are connected to terminals K2/K3 of the DCM12-UC. With a rotary switch, the functions can be locked up or down and can be switched off completely. This lock only applies to a connected motor. This allows individual shading elements or shutters to be completely or partially excluded from the automatic function of an overall control.
