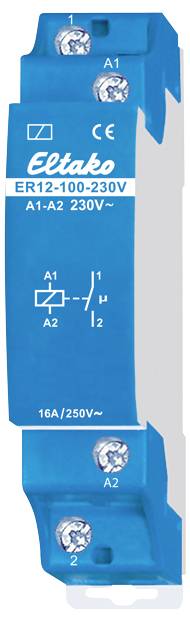

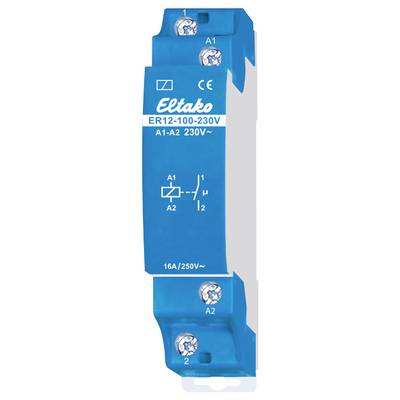

Eltako ER12-100-230V Relay Nominal voltage: 250 V AC Switching current (max.): 4 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Contact type
1 change-over
Nominal voltage
250 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
4 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Product type
Relay
- Type
ER12-100-230V
- Max. pick-up voltage
230 V AC
- Contact type
1 change-over
- Nominal voltage
250 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
4 A
- Max. switching capacity
2000 W
- Width
18 mm
- Content
1 pc(s)
DIN rail
Partially electronic
58 mm
16 A
1
12-230 V
AC/DC
50-50 Hz
AC
250-250 V
4 A
2000 W
1000 VA
1000 VA
500 VA
0
0
1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398177 Eltako ER12-100-230V Relay Nominal voltage: 250 V AC Switching current (max.): 4 A 1 change-over 1 pc(s)
Description
1 normally open contact 16 A/250 V AC, 230 V-LED lamps up to 200 W, incandescent lamps 2000 W. No standby loss. DIN-EN 60715 TH35 DIN rail mounting device. 1 division unit = 18 mm wide, 58 mm deep. Control voltage 230 V AC at control input A1/A2. Very low switching noise. The terminal assignment is compatible with the electromechanical switching relay R12-100-.
