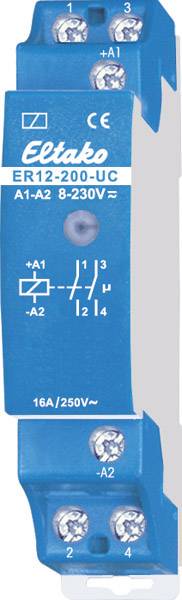

Eltako ER12-200-UC Relay Nominal voltage: 230 V Switching current (max.): 16 A 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Contact type
2 makers
Nominal voltage
230 V
Switching voltage (max.)
230 V AC
Switching current (max.)
16 A
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Technical specifications
- Product type
Relay
- Type
ER12-200-UC
- Connection
Screw terminal
- Contact type
2 makers
- Nominal voltage
230 V
- Switching voltage (max.)
230 V AC
- Switching current (max.)
16 A
- Max. switching capacity
1000 W
- Height
58 mm
- Content
1 pc(s)
- Weight
760 g
DIN rail
Partially electronic
58 mm
16 A
1
12-230 V
AC/DC
50-50 Hz
AC
250-250 V
4 A
2000 W
1000 VA
1000 VA
500 VA
0
2
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162023 Eltako ER12-200-UC Relay Nominal voltage: 230 V Switching current (max.): 16 A 2 makers 1 pc(s)
Description
Switching relay. No standby loss. The latest hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Very low switching noise. Control display with LED. The terminal assignment is identical to the electromechanical switching relay R12-200-. By using a bistable relay, there is no coil power loss and no heating thereby even when the relay is switched on. The relay contact can be open or closed during commissioning and synchronizes itself during the first operation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. The electronics have no own power supply and therefore no standby loss. Only when the control contact is closed is the micro-controller activated, which switches the bistable relay in the right direction. When the control contact is opened or the control voltage drops, it is switched back.
