Eltako WSZ155CEE-16A MID 28016117 Electricity meter (AC) Digital 5 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
5 A
Display
Digital
Calibration
Calibrated
Counter type
electronic
Technical specifications
- Counter type
electronic
- Product type
Electricity meter (AC)
- Current load
5 A
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 35 x 110 x 70 mm
- Type
Direct measurement
- Operating voltage
230 V
- Self-consumption
0.4 W
- Frequency
50 Hz
- Accuracy class
B
- Reading type
Active power
- Width
110 mm
- Height
70 mm
- Length
35 mm
- Current (max.)
16 A
- Current range
16 A (max)
- Type
WSZ155CEE-16A MID
110 mm
Direct measurement
70 mm
35 mm
Purchase
Digital
0.4 W
50-50 Hz
16 A
7
Electronic
IP54
Other
Effective power
One-tariff
TRUE
TRUE
Measuring Instruments Directive
Optic
2000-2000 Imp/kWh (kvarh)
B
Single phase
FALSE
230-230 V
5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398252 Eltako WSZ155CEE-16A MID 28016117 Electricity meter (AC) Digital 5 A 1 pc(s)
Description

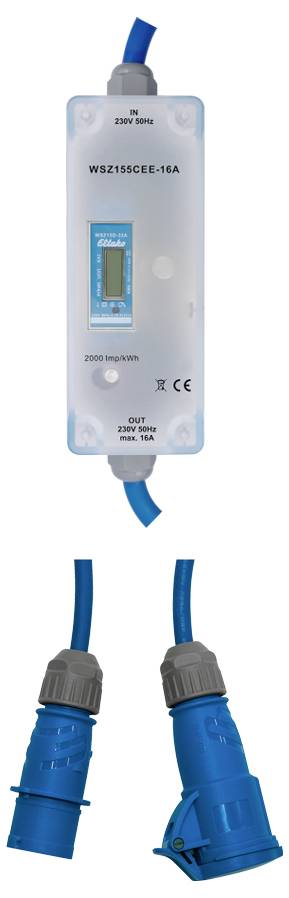

Mobile alternating current counter with safety plug and earthing contact coupler. Suitable for indoor and outdoor use. Maximum current 16 A. Protection class IP54. Standby loss of only 0.4 watt. Housing dimensions 155 x 60 x 82 mm, connection cable 1.5 m (incl. plug and coupling). Accuracy class B (1%). This mobile alternating current counter measures the active energy on the basis of the current flowing between the input and the output. The intrinsic consumption of only up to 0.4 watt effective power is not measured and not displayed. Cyclically the display will change every 10 seconds between the accumulated active energy in kWh and the current consumption in kW. The starting current is 20 mA. The display can only be read with the power supply. Consumption, however, is non-volatile and is immediately displayed after a power failure. The digital display has 7 digits. Up to 99999.99 kWh, two decimal places are displayed, from 100000.0 kWh only one more. The mobile AC meter is equipped with a mounting bracket for easy mounting. This can be removed if not necessary. The power reference is indicated by a LED flashing 2000 times per kWh.
