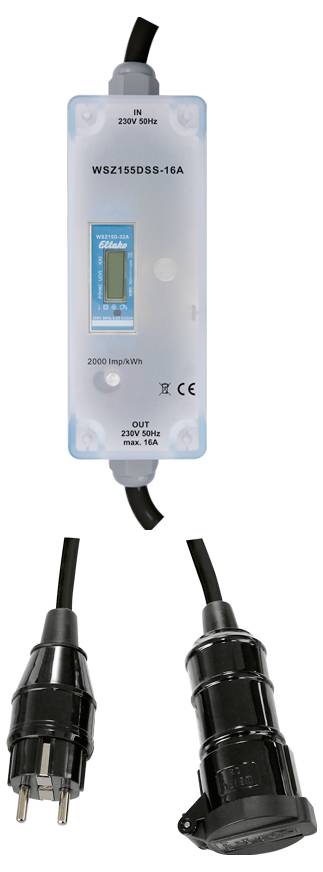

Eltako WSZ155DSS-16A MID 28016115 Electricity meter (AC) Digital 5 A 1 pc(s)

Mobile alternating current counter with safety plug and earthing contact coupler. Suitable for indoor and outdoor use. Maximum current 16 A. Protection class IP54. Standby loss of only 0.4 watt. Housing dimensions 155 x 60 x 82 mm, connection cable 1.5 m (incl. plug and coupling). Accuracy class B (1%). This mobile alternating current counter measures the active energy on the basis of the current flowing between the input and the output. The intrinsic consumption of only up to 0.4 watt effective power is not measured and not displayed. Cyclically the display will change every 10 seconds between the accumulated active energy in kWh and the current consumption in kW. The starting current is 20 mA. The display can only be read with the power supply. Consumption, however, is non-volatile and is immediately displayed after a power failure. The digital display has 7 digits. Up to 99999.99 kWh, two decimal places are displayed, from 100000.0 kWh only one more. The mobile AC meter is equipped with a mounting bracket for easy mounting. This can be removed if not necessary. The power reference is indicated by a LED flashing 2000 times per kWh.

This text is machine translated.
