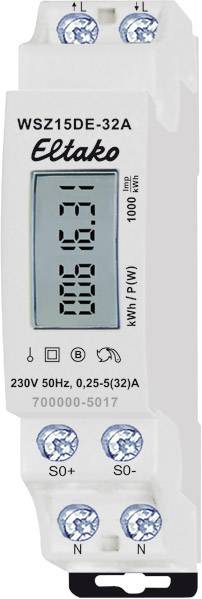

Eltako WSZ15DE-32A 28032615 Electricity meter (AC) Digital 32 A MID-approved: No Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
32 A
Display
Digital
Counter type
direct measuring
Operating voltage
230 V
Technical specifications
- Counter type
direct measuring
- Product type
Electricity meter (AC)
- Current load
32 A
- Display
Digital
- Operating voltage
230 V
- Factory colour
White
- Dim
(L x W x H) 58 x 18 x 58 mm
- Weight
86.00
- Starting current
20 mA
- Starting current
20 mA
- Operating voltage
230 V
- Self-consumption
0.4 W
- Recess width
18 mm
- Frequency
50 Hz
- Accuracy
1 %
- Accuracy class
B
- MID-approved
No
- Reading type
Active power
- Nominal voltage range
230 V (max)
- Mains voltage (max.)
230 V
- Width
18 mm
- Height
58 mm
- Length
58 mm
- Current (max.)
32 A
- Current range
32 A (max)
- Type
WSZ15DE-32A
- Packaging type
Piece
- Effective current range
32 A
- Depth
70.0000 mm
DRA (DIN-rail adapter)
18 mm
Direct measurement
82 mm
58 mm
Purchase
Digital
0.4 W
50-50 Hz
32 A
1
7
Electronic
IP20
Other
Effective power
One-tariff
TRUE
FALSE
Optic
S0
2000-2000 Imp/kWh (kvarh)
B
Single phase
FALSE
230-230 V
230-230 V
5 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162048 Eltako WSZ15DE-32A 28032615 Electricity meter (AC) Digital 32 A MID-approved: No Piece 1 pc(s)
Description
Maximum current 32A, standby loss only 0.4 watts. Series installation device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit =18mm wide, 58mm deep. Accuracy class B (1%). With S0 interface. This AC meter measures the active energy based on the current flowing between the input and the output. The own consumption of only a maximum of 0.4 watt active power is not measured and not displayed. Like all counters without MID declaration of conformity in Europe, it is not approved for monetary electricity accounting. Every 30 seconds, the display switches from the active energy accumulated in kWh to the current consumption in watts for 5 seconds. 1 external conductor can be connected with a current of up to 32A. With an expected load of more than 50%, a ventilation distance of 1/2 division unit to adjacent devices must be observed. If necessary, use spacer DS12. The starting current is 20mA. The display can only be read with power supply. However, the consumption is stored in a non-volatile memory and is displayed again immediately after a power failure. Two N terminals for secure cross-wiring of several counters. The digital display has 7 digits. Up to 99999.99 kWh, two decimal places are displayed. From 100000,0kWh only one. The power consumption is indicated by a 1000 times per kWh flashing bar in the display. Error message: In the event of a connection error, an LED flashes on the display.
