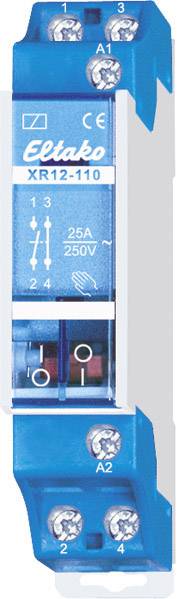

Eltako XR12-110-230V Remote switch 1 breaker, 1 maker 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Connection
Screw terminal
Packaging type
Piece
Type
XR12-110-230V
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
XR12-110-230V
- Contact type
1 breaker
1 maker
- Nominal voltage
230 V
- Switching voltage (max.)
250 V AC
- Max. switching capacity
3600 VA
- Permanent current (max.)
25 A
- Mounting type
DIN rail
- Connection
Screw terminal
IP20
- Width
18 cm
- Height
89 cm
- Depth
55 mm
- Dim
(W x H x D) 18 x 89 x 55 cm
- Content
1 pc(s)
55 mm
250-250 V
1
1
2300 W
3600 VA
3600 VA
1000 VA
AC
AC
IP20
25 A
TRUE
1
1
TRUE
Other
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162022 Eltako XR12-110-230V Remote switch 1 breaker, 1 maker 230 V Piece 1 pc(s)
Description
Installation contactors with manual actuation and switching position indicator. Duty cycle 100% Tax power requirement 1.9W. Contact distance: 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V.
