Emis SMC-Arduino Stepper motor controller 2 A
EAN:
Part number:
Item no:
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 3 Piece(s) available
Highlights & Details

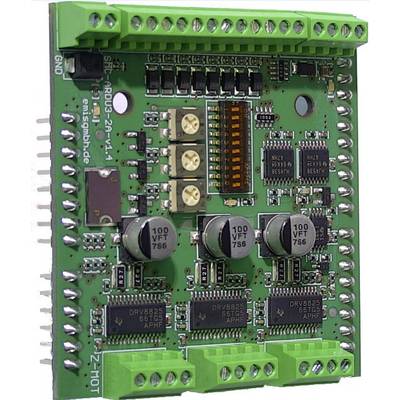

Stepper motor control card SMC Arduino
- Small size!
- Can be attached directly to Arduino-base board
- Micro-step operation and phase currents directly adjustable
- Compatible with Estlcam
Technical specifications
- Output frequency: 100 kHz
- Input Level: 5-24V DC
- Micro-step operation: 1/1, 1/2, 1/4, 1/16.
- Operating voltage
12 - 24 V / DC
- Steering axles
3
- Manufacturer part #
191801
- Type
SMC-Arduino
- Max. phase load
2 A
- Interfaces
TTL
Optional USB
- Product type
Stepper motor controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1669435 Emis SMC-Arduino Stepper motor controller 2 A
Conformity certificate
Conformity certificate 1669435 Emis SMC-Arduino Stepper motor controller 2 A
Description
The new stepper motor control card SMC Arduino is a control board with many extras. The card raises enormously from commercially available control boards. The SMC Arduino is simply fitted onto the Arduino-base board a practical matter. You don't have numerous connections from our SMC Arduino to the green pcb wiring. By simply plugging in to the main board is the compatibility is child's play. On the basis of the integrated stepper motor power amplifiers can be connected at the same time three motors and operate. The phase currents can easily via trimming potentiometer can be adjusted. Also the appropriate micro-step mode, you can directly on the circuit board.
